Brother MFC-L2680W Service Manual

2-43
Confidential

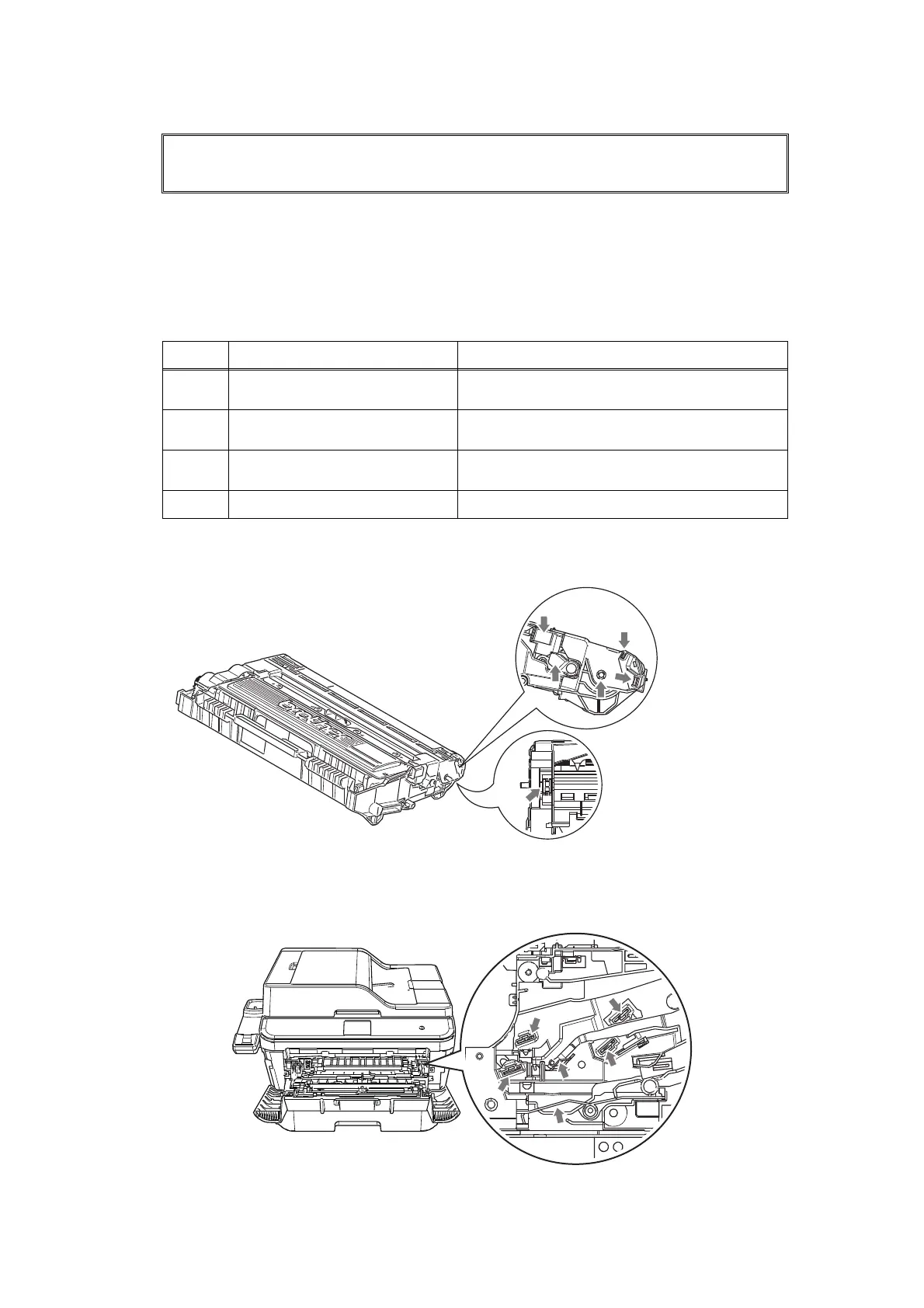

 Error code 6A00
Detected discharge that may be attributable to dirty corona wire on the drum unit.
 Electrodes location of the toner cartridge and drum unit
Fig. 2-8
 Electrodes location of the machine
Fig. 2-9
Drum !
Slide the Green tab on Drum Unit.
<User Check>
• Slide the green tab of the drum unit to left and right for two to three times to clean the
corona wire.
• Clean the terminal of the drum unit.
• Replace the drum unit.
Step Cause Remedy
1
Dirt on the high-voltage power
supply PCB terminal
Clean the electrodes of the machine.
2
High voltage electrodes
attachment failure
Check if the problem disappears after pressing
each electrode. If not, reattach the electrodes.
3
High-voltage power supply PCB
failure
Replace the high-voltage power supply PCB
ASSY.
4
Main PCB failure Replace the main PCB ASSY.
Side surface of
drum unit
Bottom surface of
drum unit

Brother MFC-L2680W Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	2400 x 600 dpi
Duplex Printing	Automatic
Maximum Copy Resolution	600 x 600 dpi
Scan Resolution	1200 x 1200 dpi
Fax Modem Speed	33.6 kbps
Paper Input Capacity	250 sheets
Connectivity	USB, Ethernet, Wi-Fi
Display	2-line LCD
Processor	600 MHz
Scanner Type	Flatbed, ADF
Automatic Document Feeder (ADF)	Yes
Mobile Printing	Yes, AirPrint, Brother iPrint&Scan
Max Paper Size	Legal
Toner Yield	Approx. 1, 200 pages (Standard), Approx. 3, 000 pages (High-Yield)
