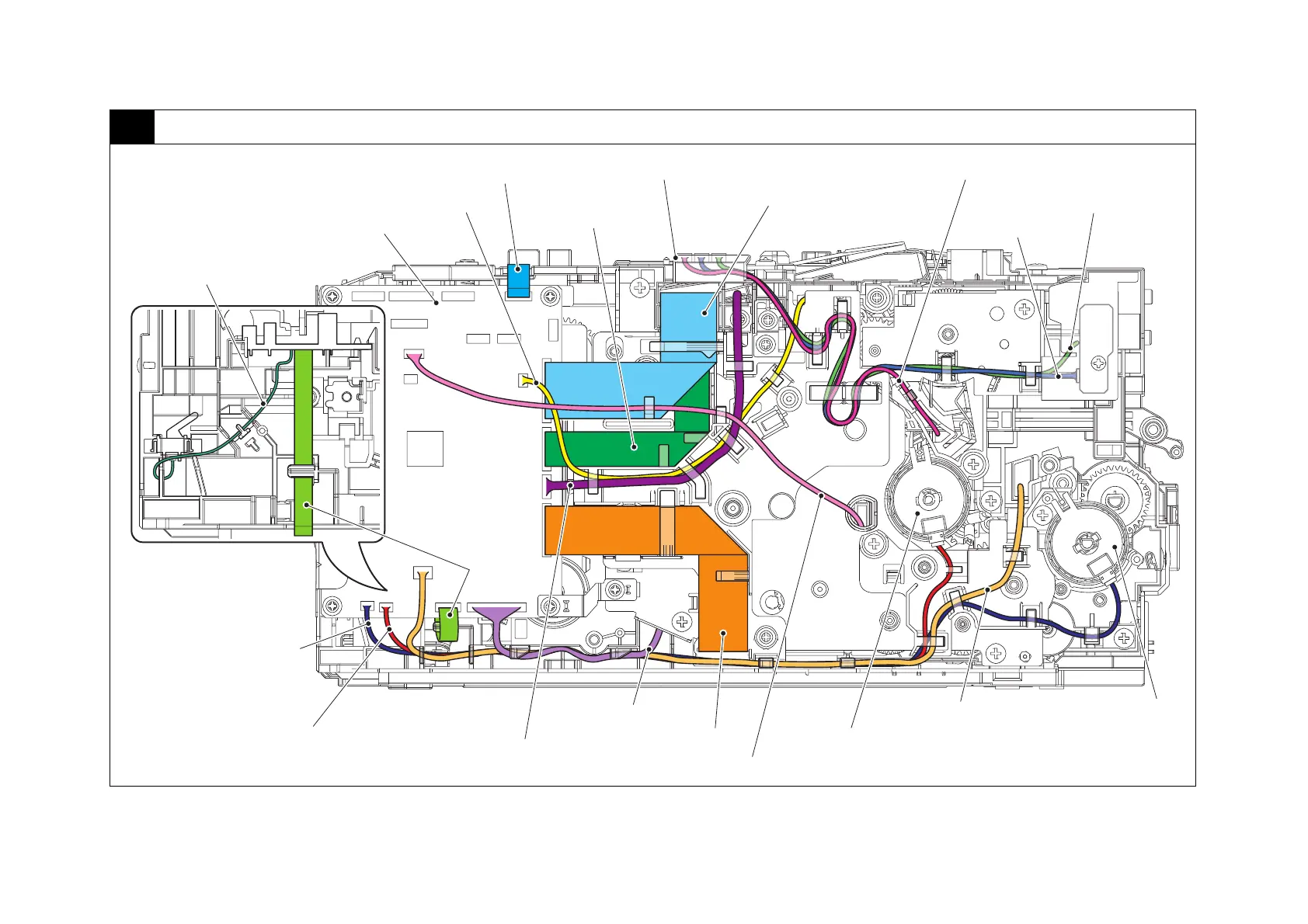

10 Frame L unit (Manual feed models)
Harness colors are subject to change for some reason.
Toner box solenoid
harness (WH) *
1
T1 clutch
Toner sensor harness (RD) *
1
HVPS flat cable
Laser unit flat cable
Front cover sensor harness (YW)
Back cover/duplex tray
sensor harness (RD, BL)
T1 clutch harness (BL)
Registration clutch harness (WH)
Polygon motor harness (WH)
LVPS harness (WH, BK)
Paper feed motor flat cable
Registration clutch
Paper feed sensor harness
(RD, BL, WH)
Toner box new
harness (BL) *
1
Toner box relay PCB ASSY *
1
Eject sensor
flat cable
Main PCB ASSY
Cartridge sensor harness (WH) *
2
*
1
For models with Toner box
*
2
For models without Toner box
Toner box relay flat cable *
1

Brother MFC-L2690DW Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Processor	600 MHz
Printer Type	Laser
Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	Ethernet
Mobile Printing	AirPrint, Google Cloud Print, Brother iPrint&Scan
Display	2.7-inch color touchscreen
Scan Resolution	Up to 1200 x 1200 dpi
Maximum Paper Size	A4
