9.14.2 Panel PCB ASSY
(1) Release each Hook to remove the Panel PCB ASSY from the Panel unit.
(2) Reverse the Panel PCB ASSY. Release the Lock to disconnect the LCD flat cable from the
Panel PCB ASSY.

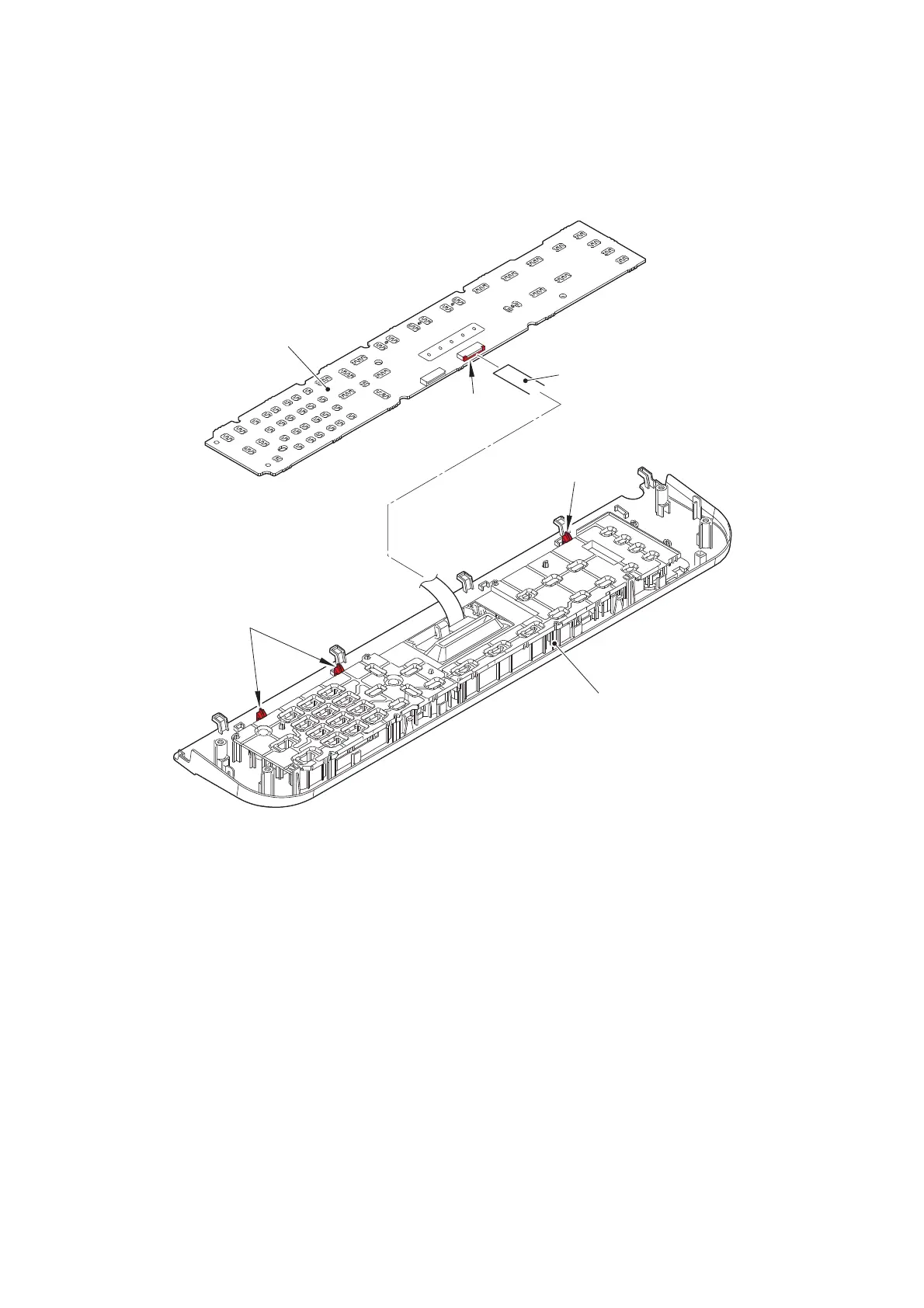

Fig. 3-51
Panel unit
LCD flat cable
Hooks
Hook
Panel PCB ASSY
Lock
