Brother MFC-L2690DW User Manual

3-28
Confidential
9.5 Front cover ASSY / Support flap
 Manual feed models
(1) Open the Front cover ASSY.
(2) Remove the Collar 4 to remove the Develop joint link from the Front cover ASSY.
(3) Lift the Rib on the Front chute ASSY, and slide the Front cover ASSY in the direction of the
arrow A to remove it.

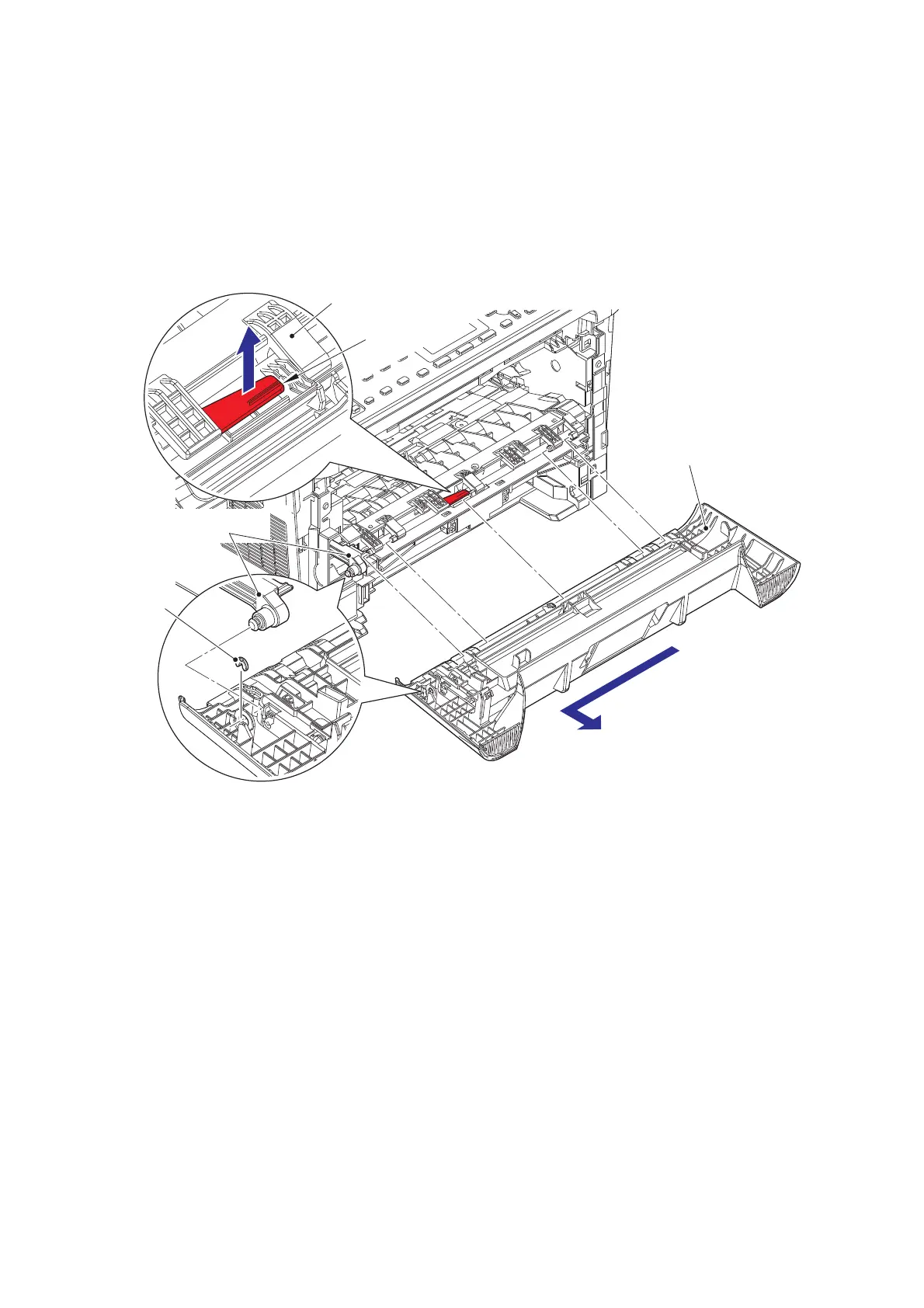

Fig. 3-13
Rib
Front chute ASSY
Develop joint link
Front cover ASSY
A
Collar 4

Brother MFC-L2690DW Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Processor	600 MHz
Printer Type	Laser
Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	Ethernet
Mobile Printing	AirPrint, Google Cloud Print, Brother iPrint&Scan
Display	2.7-inch color touchscreen
Scan Resolution	Up to 1200 x 1200 dpi
Maximum Paper Size	A4
