Brother MFC-L2690DW User Manual

3-58
Confidential
9.14 Panel unit (For Non-touch panel models)
9.14.1 Panel unit
(1) Remove the four Taptite cup B M3x10 screws.
(2) Release each Hook to remove the Panel unit. Disconnect the Panel flat cable from the
Panel PCB ASSY.

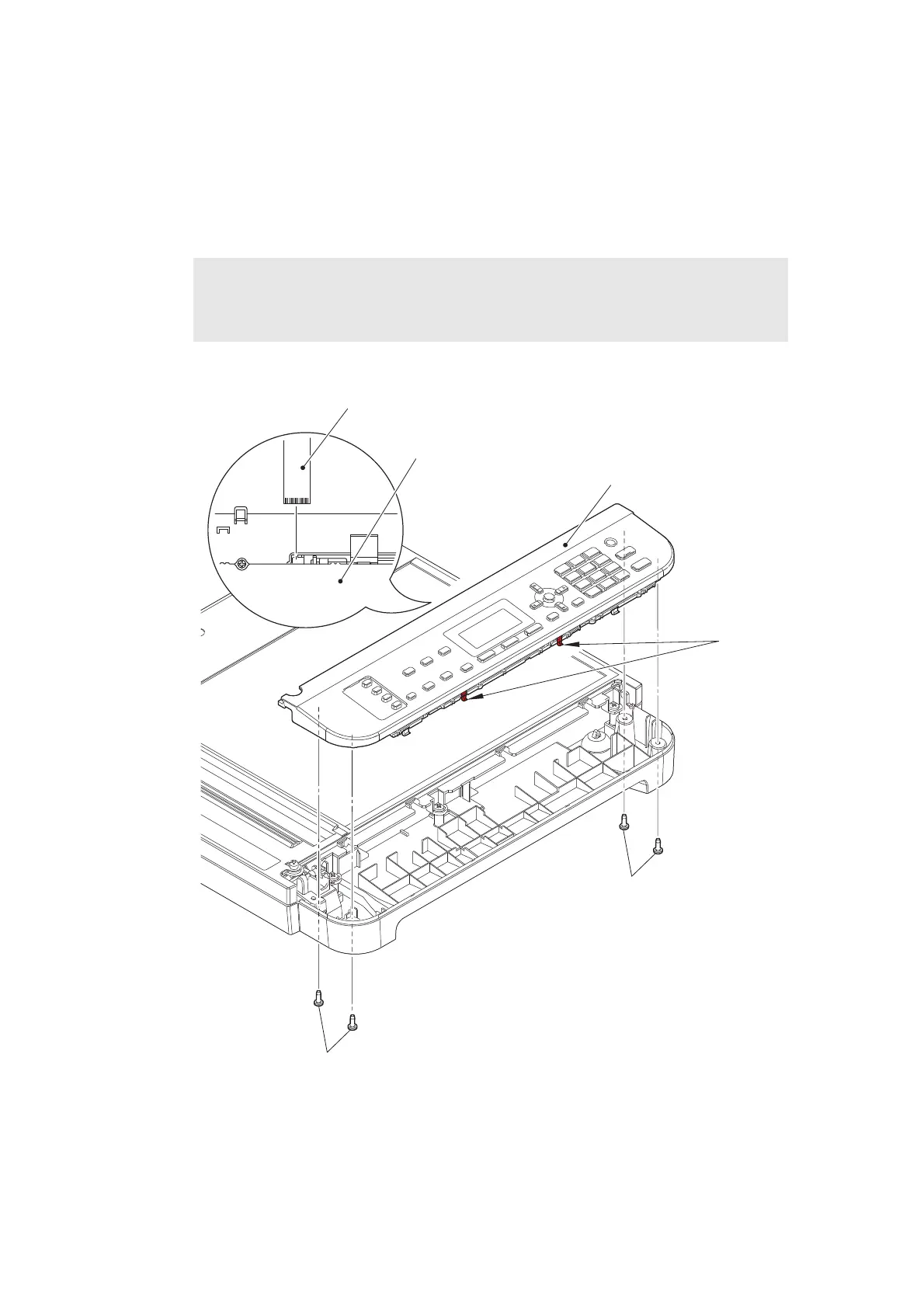

Fig. 3-50
Harness routing: Refer to “3. Document scanner unit”.
Note:
• When removing the Panel unit, DO NOT pull the Panel unit strongly because it is
connected to the Panel flat cable.
Taptite cup B M3x10
Taptite cup B M3x10
Hooks
Panel unit
Panel PCB ASSY
Panel flat cable

Brother MFC-L2690DW Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Processor	600 MHz
Printer Type	Laser
Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	Ethernet
Mobile Printing	AirPrint, Google Cloud Print, Brother iPrint&Scan
Display	2.7-inch color touchscreen
Scan Resolution	Up to 1200 x 1200 dpi
Maximum Paper Size	A4
