9.27 Roller holder ASSY
(1) Push the Link arm in the direction of the arrow A. Rotate the Roller holder ASSY, and
release the Boss.
(2) Slide the Roller holder ASSY in the direction of the arrow B, and remove it from the Shaft.
Remove the Roller holder ASSY.

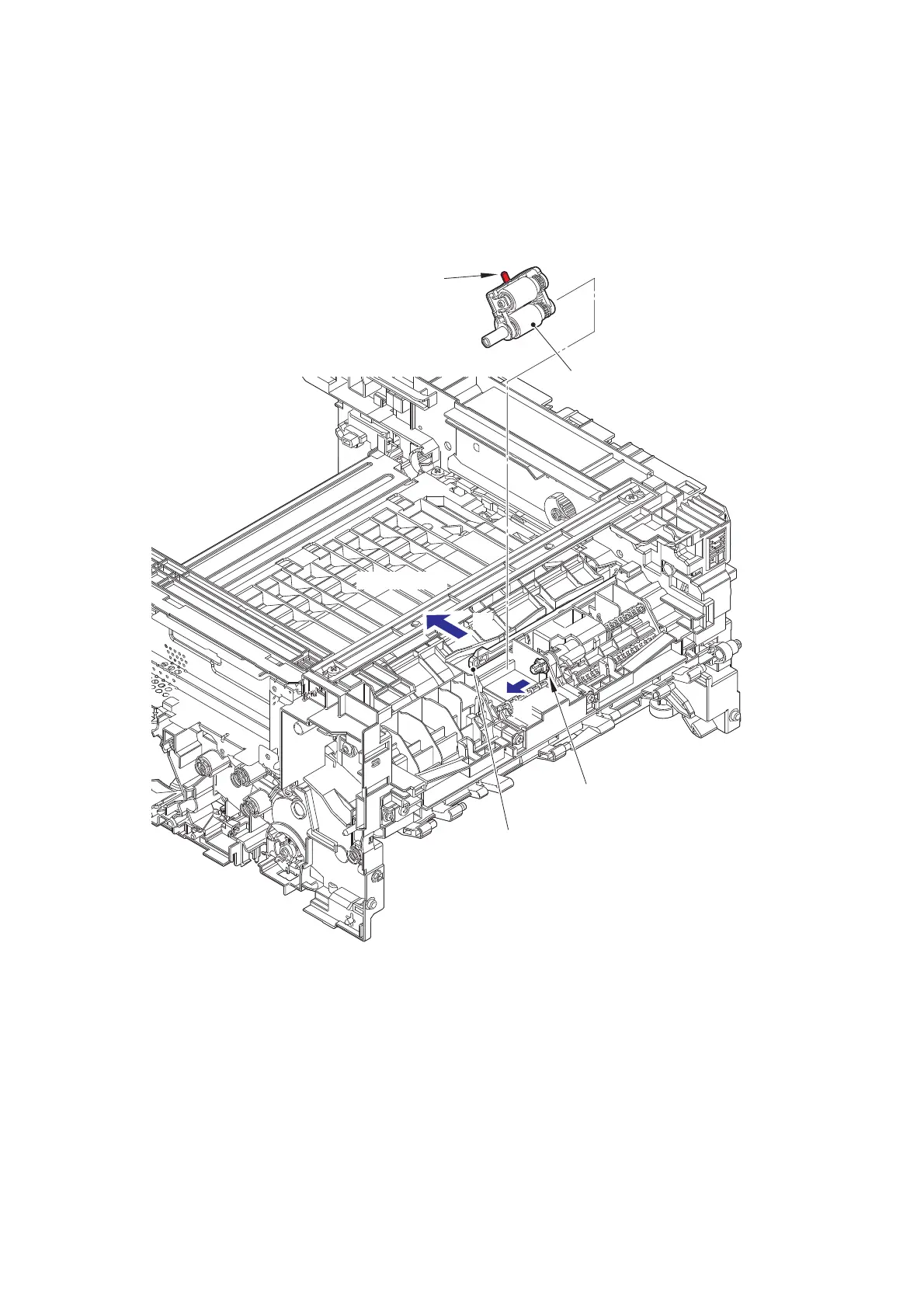

Fig. 3-81
Roller holder ASSY
Boss
Shaft
Link arm
A
B
<Front side>
<Bottom side>

Brother MFC-L2690DW Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Processor	600 MHz
Printer Type	Laser
Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	Ethernet
Mobile Printing	AirPrint, Google Cloud Print, Brother iPrint&Scan
Display	2.7-inch color touchscreen
Scan Resolution	Up to 1200 x 1200 dpi
Maximum Paper Size	A4
