3-9
Confidential
7. HARNESS ROUTING

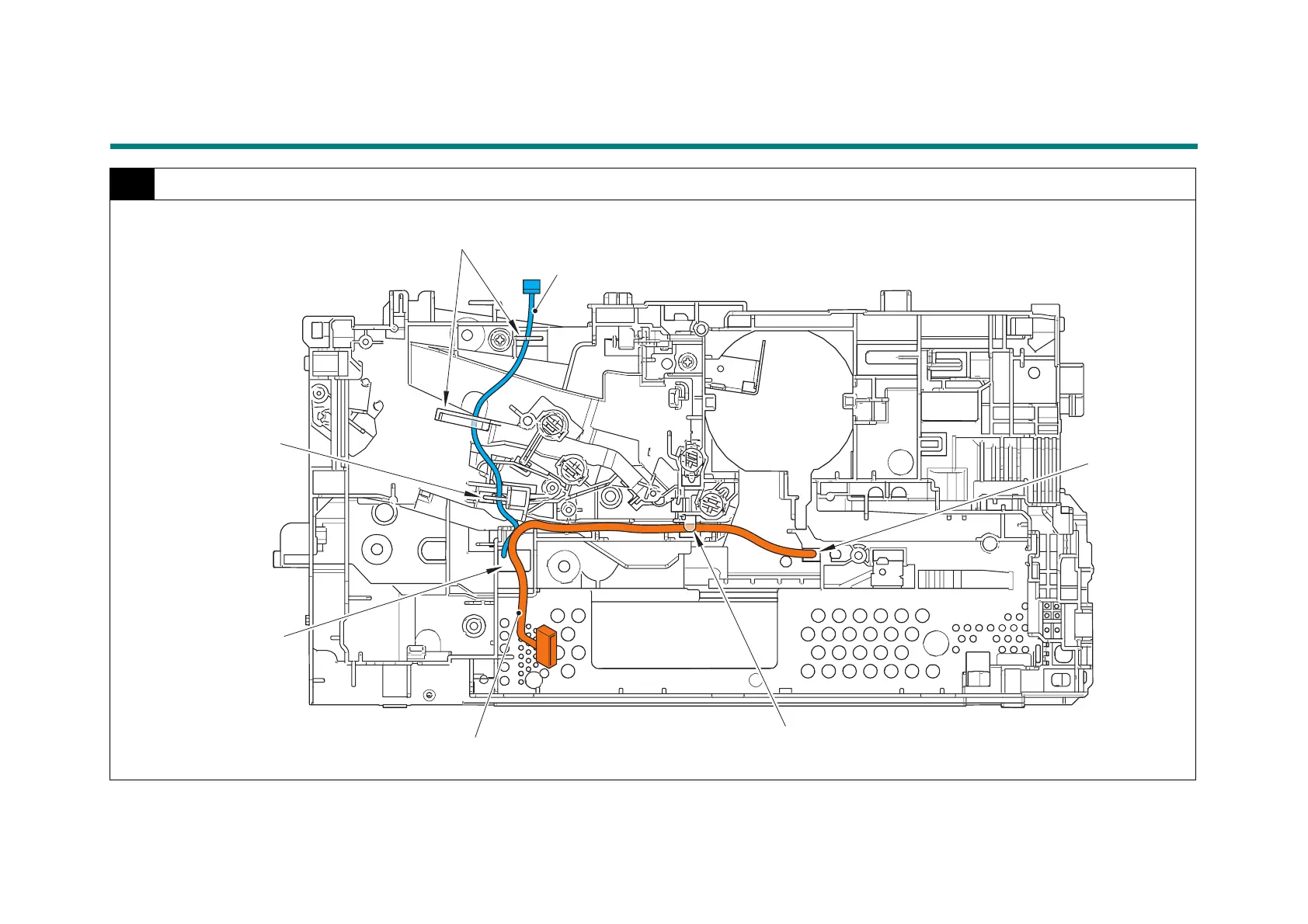

1 Right side of the machine
Harness colors are subject to change for some reason.
Registration front/rear sensor PCB harness (RD, BL, WH, BK)
Guide
LVPS harness (WH, BR)
Guide
Guides
Hole
Hole
