Brother MFC-L2700DW Service Manual

3-71
Confidential
9.18 Modem PCB ASSY

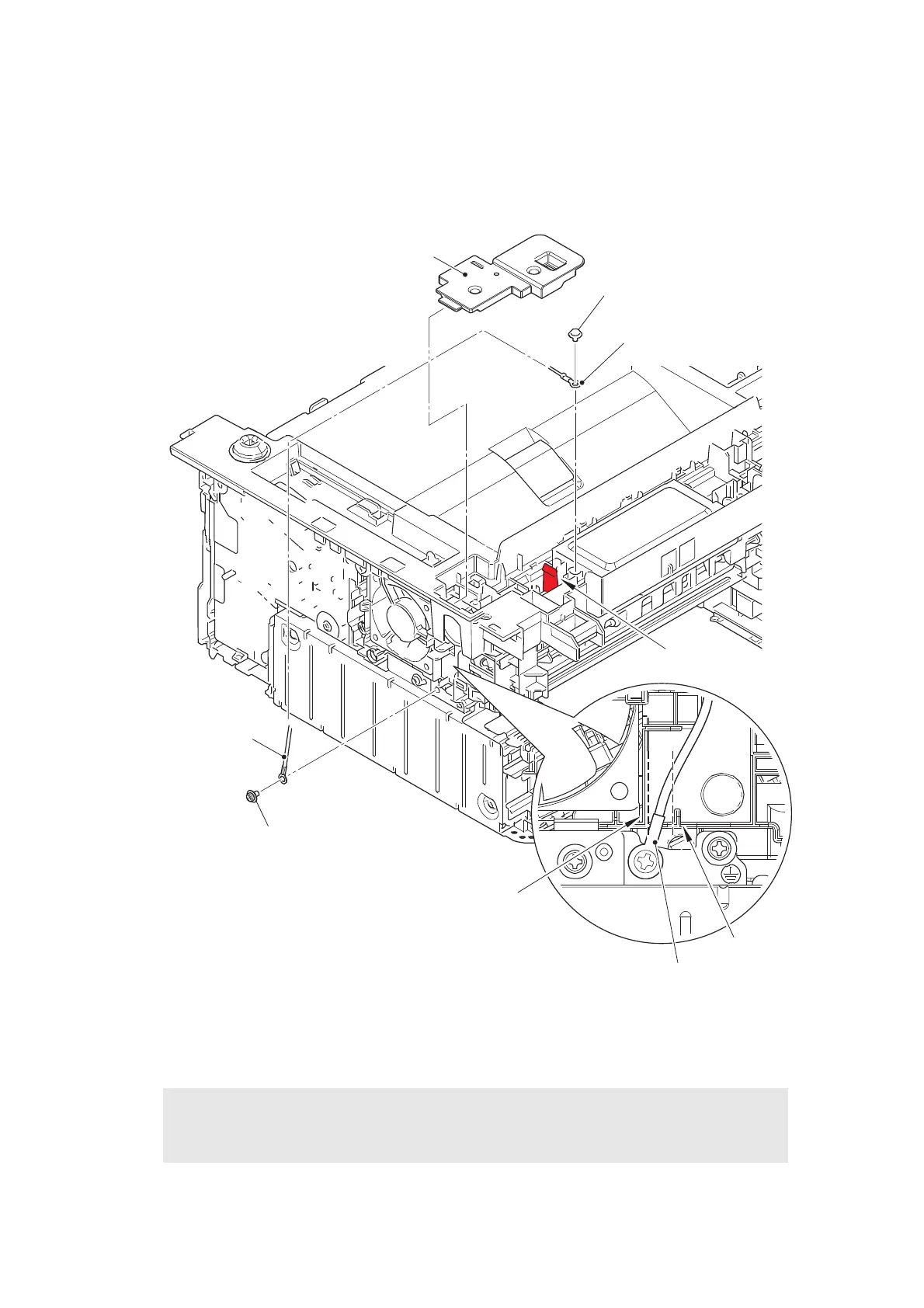

(1) Release the hook to remove the speaker cover.
(2) Remove the two screw pan (S/P washer) M3.5x6 screws, and release the modem FG
harness LVPS from the securing fixtures.
Fig. 3-68
Harness routing: Refer to “7. Speaker unit, Modem (LVPS side)”.
Assembling Note:
• Make sure that the terminal of modem FG harness LVPS is located between the rib A
and rib B as shown in the figure above.
Screw pan (S/P washer) M3.5x6
Modem FG harness LVPS
Speaker cover
Hook
Screw pan (S/P washer) M3.5x6
Modem FG harness LVPS
Rib A
Rib B
Terminal of Modem FG harness LVPS

Brother MFC-L2700DW Specifications

General

Type	all in one
Color	gray
Tray Capacity	250
Automatic Document Feeder Capacity	35 sheets
Paper Size	up to 8.5" x 14" (legal); manual feed slot: 3" to 8.5" in width and 5" to 14" in length
Paper Handling	up to 250 sheets
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 10, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 600
Max Copies	99
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Fax Function	yes
Cartridges	tn630, tn660
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	brother iprint&scan, google cloud print, usb 2.0
OS Compatibility	pc: windows xp (home, professional and professional x64 editions), vista, 7, 8 or 8.1, windows server 2003 (32- or 64-bit), 2008, 2008 r2, 2012 or 2012 r2, mac: os x 10.7.5, 10.8.x or 10.9.x; linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	12.5 inches
Width	16.1 inches
Net Weight	24.9 pounds
