Brother MFC-L2700DW Service Manual

3-41
Confidential
9.12.4 ADF Cover ASSY, Gear Cover
(1) Open the ADF cover ASSY. Release the bosses to remove the ADF cover ASSY from
the ADF unit.
(2) Release the hook to remove the gear cover from the ADF unit.

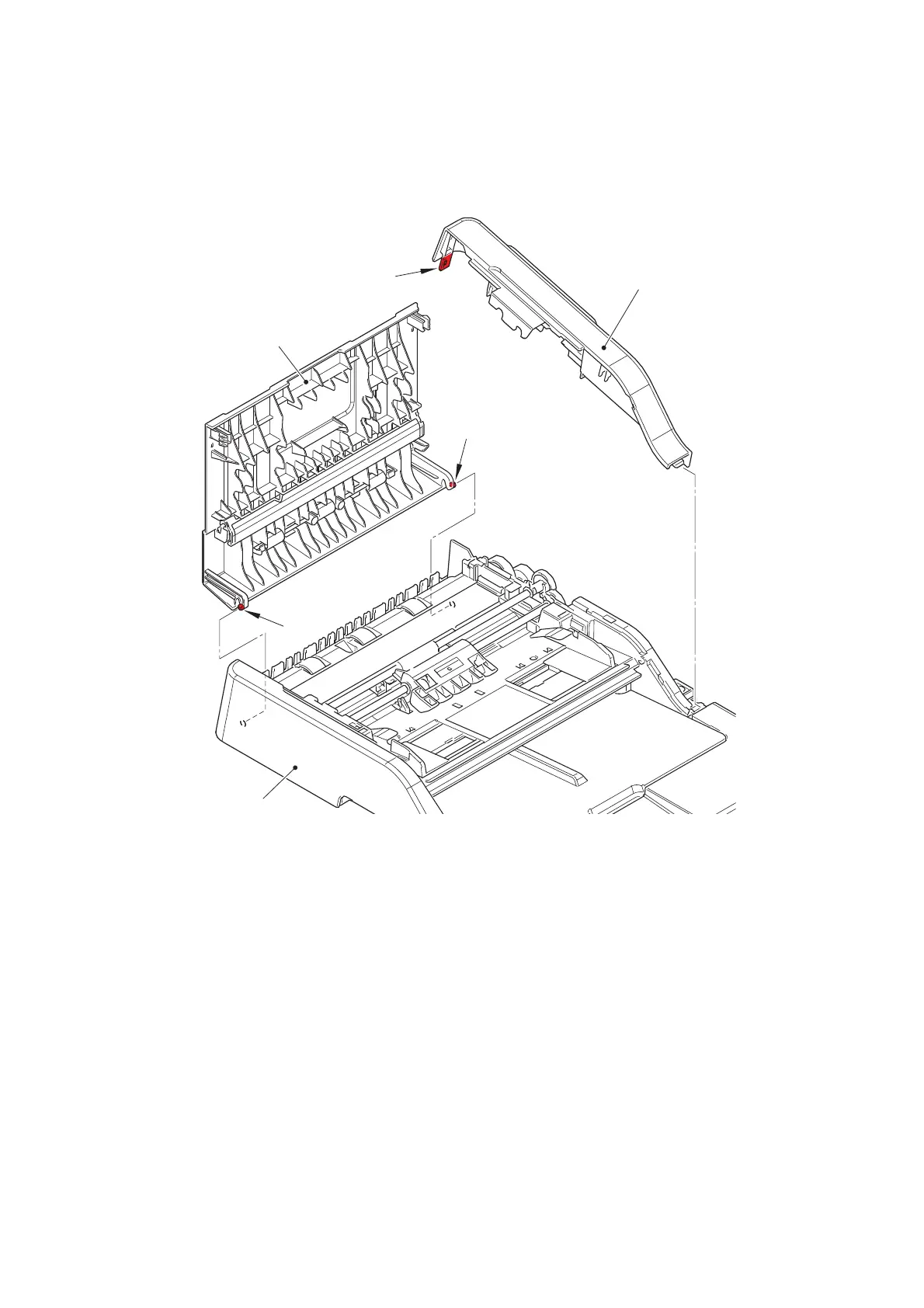

Fig. 3-30
Boss
Hook
ADF cover ASSY
Boss
Gear cover
ADF unit
