Brother MFC-L2700DW Service Manual

3-35
Confidential
9.11 Document Scanner Unit
(1) Remove the taptite cup S M3x8 SR screw to remove the document scanner FG harness.
(2) Remove the taptite cup S M3x8 SR screw to remove the panel FG harness and the ADF
FG harness.
(3) Disconnect the second side document scanning position sensor PCB harness, the ADF
sensor harness, the panel harness, the document scanner motor harness, the ADF
motor harness, the first side CIS flat cable and the second side CIS flat cable from the
main PCB ASSY.

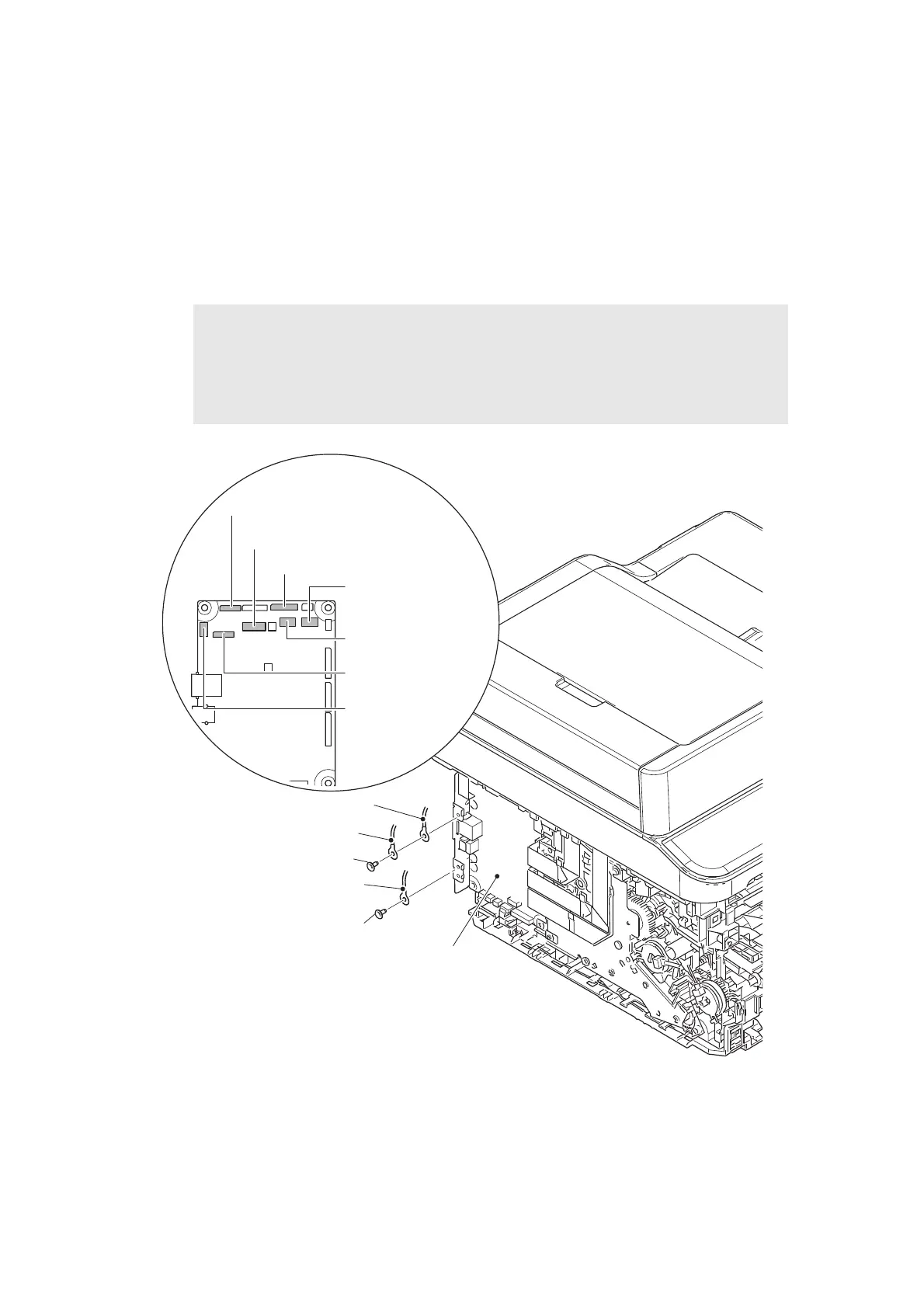

Fig. 3-22
Harness routing: Refer to “12. ADF unit - Main PCB ASSY”, “13. Document scanner unit -
Main PCB ASSY”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Panel FG harness
Taptite cup S M3x8 SR
Document scanner FG harness
Taptite cup S M3x8 SR
Main PCB ASSY
ADF FG harness
Second side CIS flat cable
Second side
document
scanning position
sensor PCB
harness (BL)
Panel harness (WH)
Document scanner
motor harness (WH)
ADF motor
harness (RD)
First side CIS flat cable
ADF sensor harness (WH)
Main PCB ASSY

Brother MFC-L2700DW Specifications

General

Type	all in one
Color	gray
Tray Capacity	250
Automatic Document Feeder Capacity	35 sheets
Paper Size	up to 8.5" x 14" (legal); manual feed slot: 3" to 8.5" in width and 5" to 14" in length
Paper Handling	up to 250 sheets
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 10, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 600
Max Copies	99
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Fax Function	yes
Cartridges	tn630, tn660
Number Of Cartridges	1
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	brother iprint&scan, google cloud print, usb 2.0
OS Compatibility	pc: windows xp (home, professional and professional x64 editions), vista, 7, 8 or 8.1, windows server 2003 (32- or 64-bit), 2008, 2008 r2, 2012 or 2012 r2, mac: os x 10.7.5, 10.8.x or 10.9.x; linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	12.5 inches
Width	16.1 inches
Net Weight	24.9 pounds
