Brother p-touch D800W User Manual

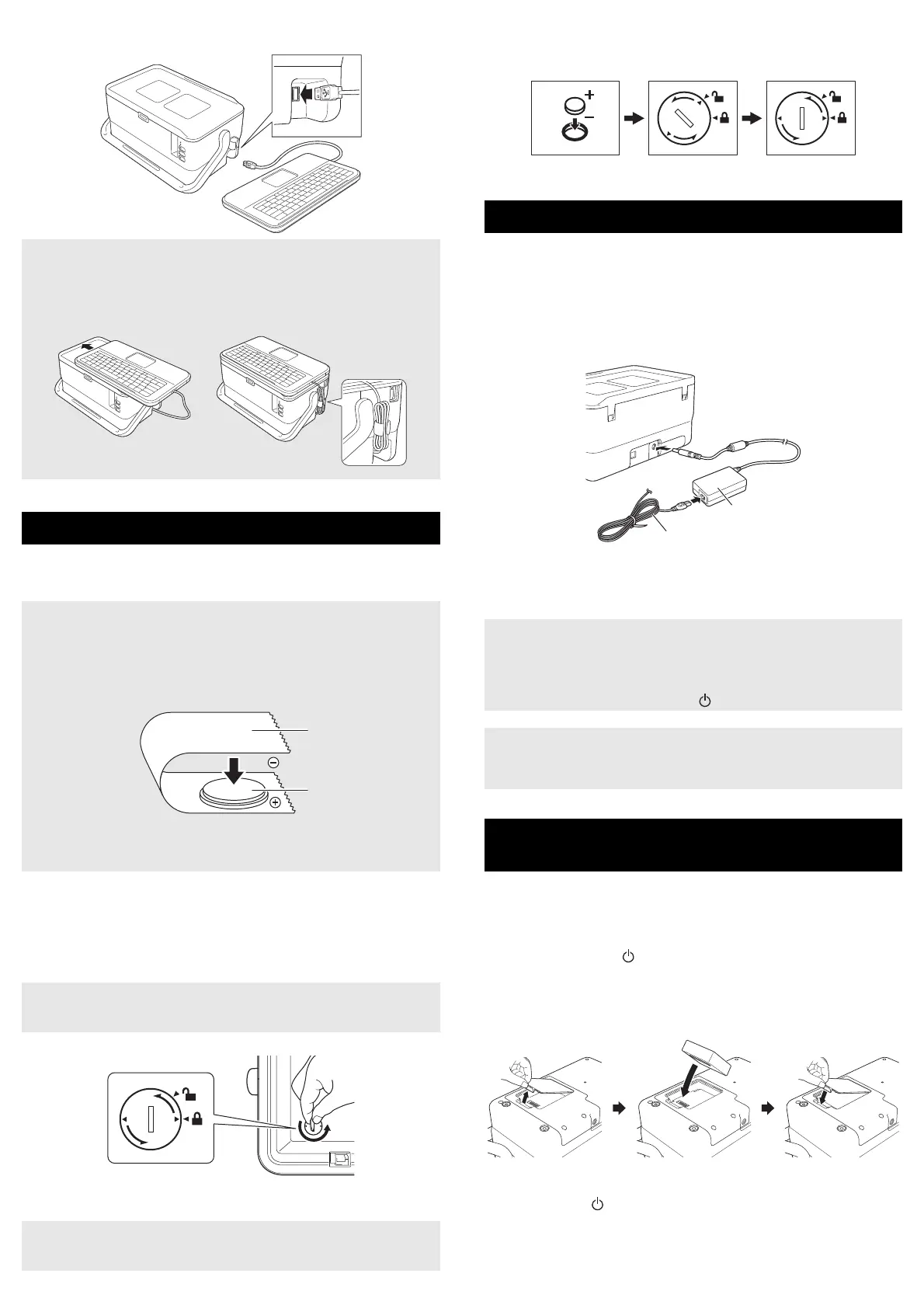

2. Connect the USB cable on the keyboard LCD unit to the socket on the
side of the machine.
A coin cell battery is used as a back-up power supply to maintain the settings
for the internal clock of the keyboard LCD unit. The battery will be consumed
even if the P-touch labelling machine is not used for a long period of time.
1. Make sure your machine is turned off.
2. Press the cover open button to open the top cover.
3. Using a coin or similar object, slowly turn the coin cell battery cover in
the direction of the arrow on the battery cover until it stops, and then
remove the coin cell battery cover.
4. Install the battery.
5. Return the coin cell battery cover to its original position. To install the
coin cell battery cover, use a coin or similar object to slowly turn the coin
cell battery cover in the opposite direction of the arrow on the battery
cover until it stops.
For more information, see the User’s Guide.
AC Adapter
Use the AD9100ESA (AC adapter) for this P-touch labelling machine.
Connect the AC adapter directly to the machine.
1. Insert the plug on the AC adapter cord into the AC adapter socket
marked DC IN 24 V on the machine.
2. Insert the plug on the power supply cord into the AC adapter.
3. Insert the power supply plug into a standard electrical socket.
Attach the battery base (PA-BB-003) to the P-touch labelling machine. For
more information about attaching the battery base, see its instruction manual.
 Installing the Rechargeable Li-ion Battery
1. Press and hold the (Power) button to turn your machine off.
2. Open the battery cover on the bottom of the machine.
3. Insert the battery into the battery compartment.
4. Close the battery cover.
 Removing the Rechargeable Li-ion Battery
Press and hold the (Power) button to turn the machine off.
Remove the battery cover and the battery, and then reattach the battery
cover.
NOTE
• The keyboard LCD unit can be installed on the machine by sliding it
on the top cover.
When storing the keyboard LCD unit, turn it upside down and install
it to the top cover to prevent it from becoming dusty or dirty.
• You can place the excess cable in the cable holder.
Installing the Coin Cell Battery
IMPORTANT
• Dispose of the batteries at an appropriate collection point, not in the
general waste stream. In addition, be sure to observe all applicable
federal, state, and local regulations.
• When storing or discarding the battery, wrap it (for example with
cellophane tape) to prevent it from short-circuiting.
(Battery insulation example)
1 Cellophane tape
2 Coin cell battery
• We recommend replacing the battery every two years.
IMPORTANT
If the coin cell battery cover is forcibly turned past the stop position, it
may become damaged.
IMPORTANT
Be sure to insert the new battery with the + and – sides facing the correct
direction.
1
2
Connecting the Power Supply
1 AC adapter
2 Power supply cord
IMPORTANT
• Turn the P-touch labelling machine off before disconnecting the AC
adapter.
• Do not pull or bend the AC adapter cord and power supply cord.
• After the power supply plug is inserted into the electrical socket, it
may take a few seconds until the (Power) button is enabled.
NOTE
To safeguard and backup the P-touch labelling machine memory, when
the power supply is unplugged it is recommended to leave the
rechargeable Li-ion batteries (PA-BT-4000LI), installed in the machine.
Using the Rechargeable Li-ion Battery
(Optional)
1
2

Brother p-touch D800W Specifications

General

Color	No
Print technology	Thermal transfer
Vertical printing	Yes
Maximum resolution	360 x 360 DPI
Maximum print height	32 mm
Minimum print length	5 mm
Maximum printing width	- mm
Label memory	99 label(s)
Display	LCD
Product color	Black
Keyboard layout	QWERTY
Housing material	Plastic
Display number of lines	4 lines
Display number of characters	17
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Tape type	TZe
Tape width	36 mm
Flash memory	7 MB
Built-in barcodes	CODABAR (NW-7), Code-128 Codabar Library, Code-39 Library, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1 DataBar Expanded, ISBN-2, ISBN-5, ITF, MicroPDF417, POSTNET, QR Code, UPC-A, UPC-E
Sustainability certificates	ENERGY STAR
Package type	Box
Package depth	435 mm
Package width	382 mm
Package height	296 mm
Package weight	5200 g
Cables included	USB
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	188 mm
Width	337 mm
Height	173 mm
Weight	3400 g
