2.1.5 Cover Open (Cover Lock) Sensor (Push Switch)
The cover open (cover lock) sensor (push switch) is mounted on the SB PCB ASSY.
Closing the top cover ASSY, the cover sensor arm pushes the cover open (cover lock)
sensor (push switch) and the signal of the top cover ASSY close status is output.

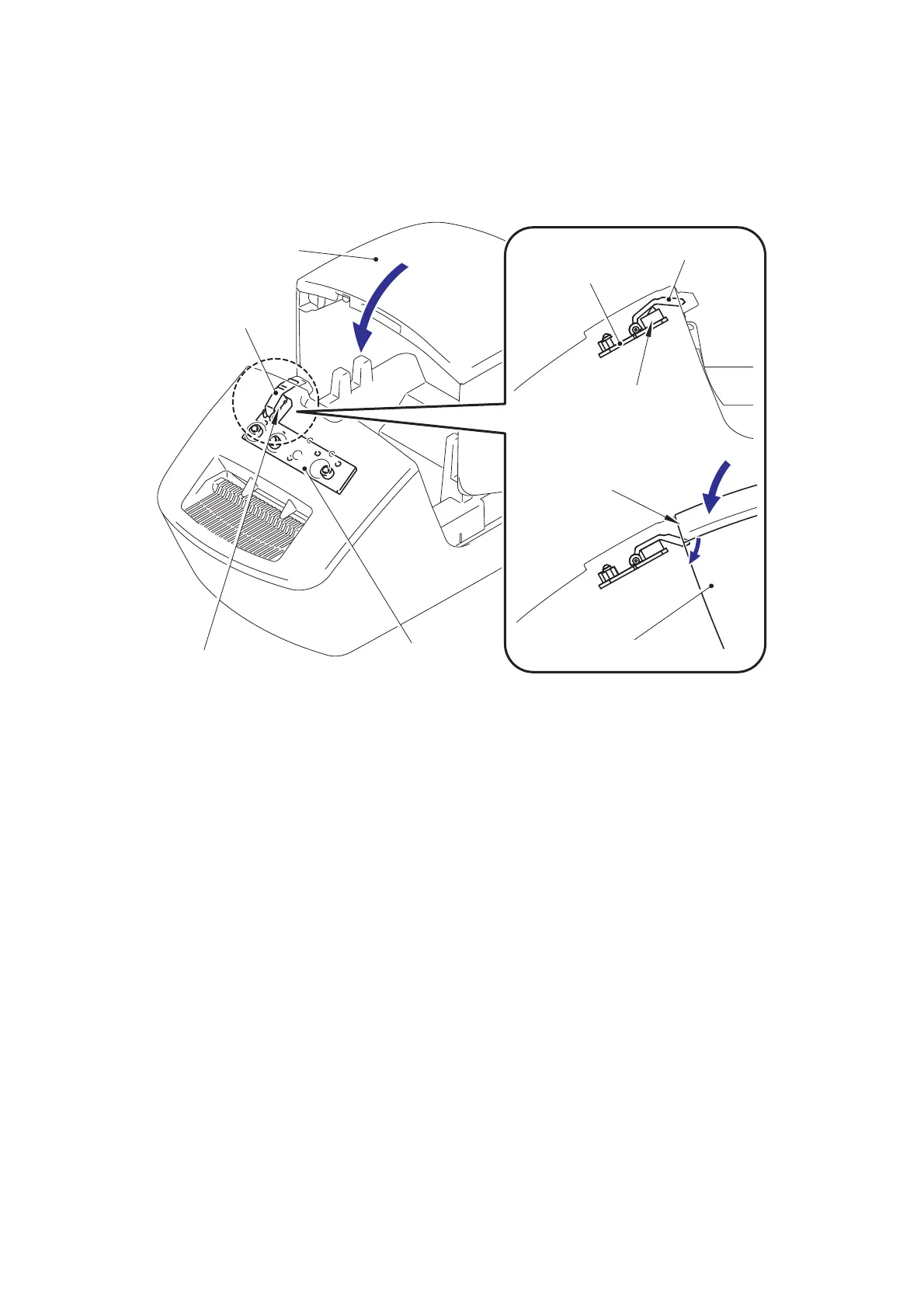

Fig. 2.1-5 Cover Open (Cover Lock) Sensor (Push Switch)
SB PCB ASSY
Cover sensor arm
Cover open
(cover lock) sensor
(push switch)
Rib
Top cover ASSY
Cover open (cover lock) sensor
(push switch)
SB PCB ASSY
Top cover ASSY
Cover sensor arm

Brother P-touch QL-700 Specifications

General

Print Technology	Direct Thermal
Maximum Tape Width	62 mm
Print Resolution	300 dpi
Connectivity	USB
Cutter	Automatic
Operating Systems Supported	Windows, Mac
Label Types	Die-cut labels, continuous tape
Compatible Label Width	62 mm
Power Source	AC adapter
