Disassembling The CarTriDge

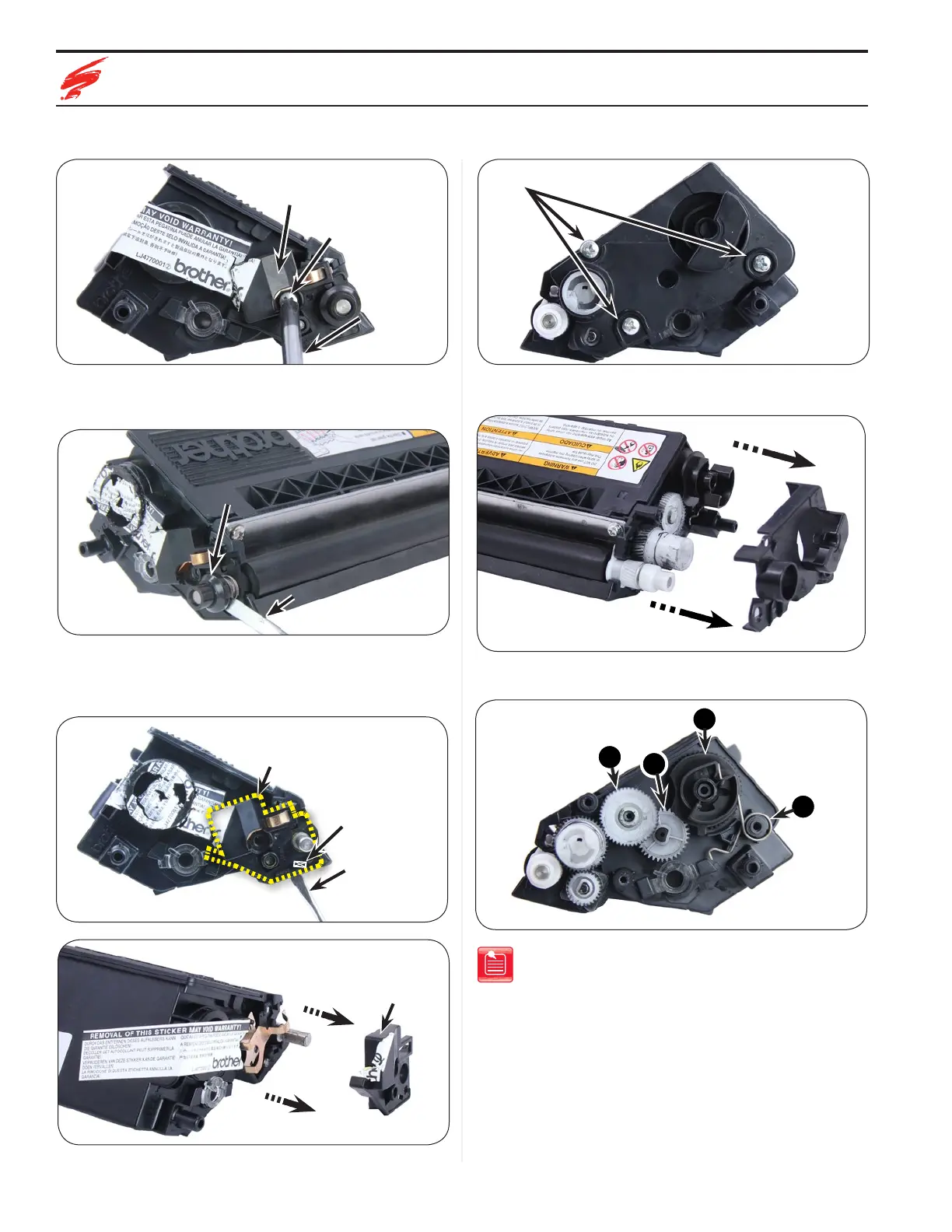

4. On the drive side end plate, remove the three screws as shown in
Figure 4.
Figure 4
Screws
5. Remove the drive side end plate as shown in Figure 5.
Figure 5
6. Remove the gears and spring in the order shown in Figure 6.
Figure 6
Idler Gear
Agitator Gear
Flag Gear
Flag Gear
Spring
3
1
4
2
Note: Keep the gears. They will be used again.
1. Using a Phillips screwdriver, remove the screw on the contact side
end plate as shown in Figure 1.
Figure 1
Screw
End Plate
Contact
Side
Phillips
Screwdriver
2. Using a slotted screwdriver pry under the contact side support
bearing as shown, to remove support bearing and spring (Figure 2).
Figure 2
Support
Bearing
Slotted Screw
driver
3. Locate the locking tab under the contact side end plate and release
the tab using a small slotted screwdriver as shown in Figure 3a.
Remove the contact side end plate (Figure 3b).
Figure 3a
Contact Side
End Plate
Slotted
Screwdriver
Locking Tab
Figure 3b
Contact Side
End Plate
To Next Page
