165
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
6

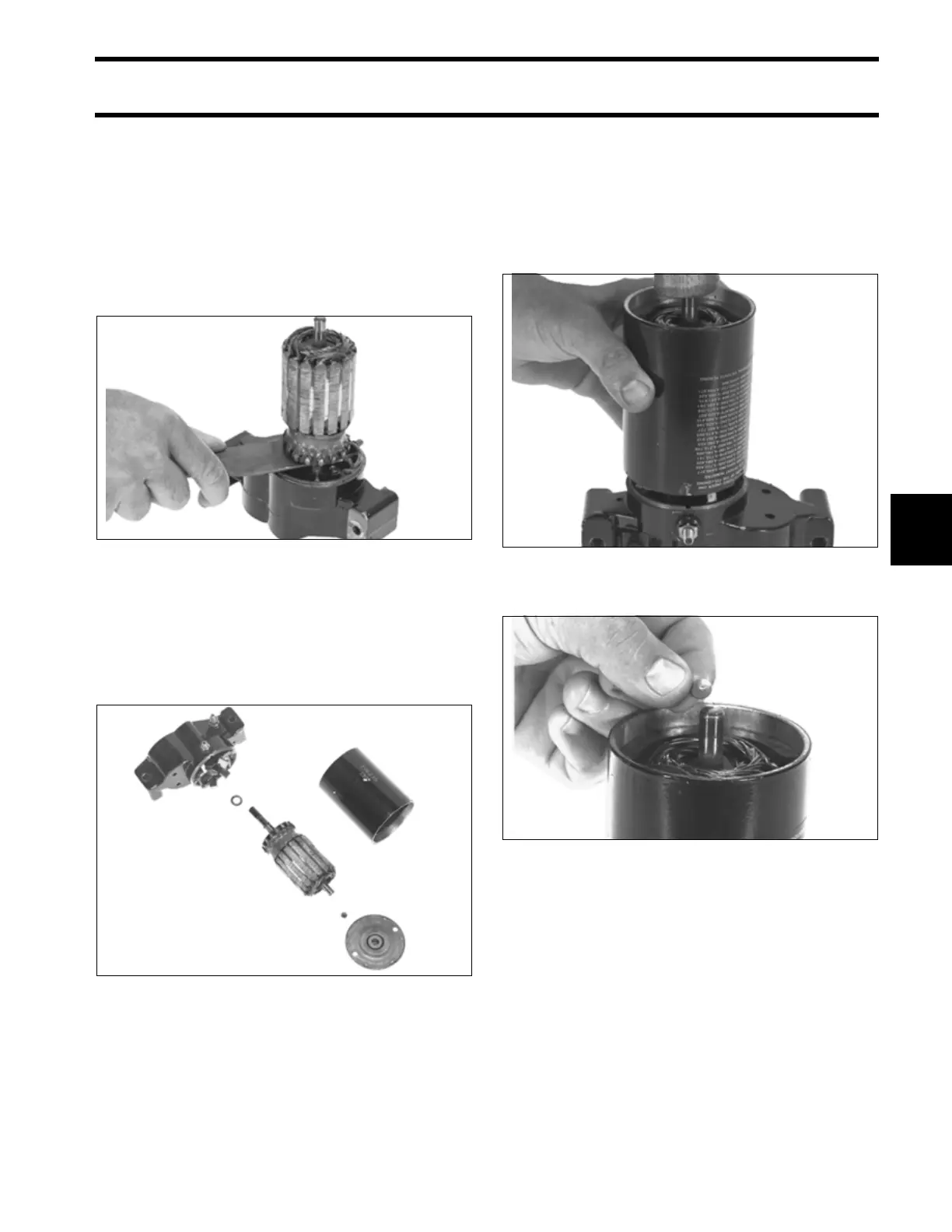

Assembly
IMPORTANT: If removed, apply Locquic Primer
and Screw Lock to the brush card screws before
installing.
Route the brush leads and install the springs and
brushes. Compress the spring with a modified
putty knife.
IMPORTANT: Incorrect orientation of the
brushes could damage the starter or cause
reverse rotation.
Apply Moly Lube to the armature bushing. Install
the thrust washer and armature.
Align the starter frame and make sure the long
alignment mark matches the mark next to the pos-
itive terminal stud on the gear housing.
Push the armature down firmly and slide the
frame into place. Align the notches in the gear
housing and frame.
Install insulator cap on end of shaft.
Apply a light coat of Moly Lube to the end cap
bearing, and install the end cap.
30364
30351
30352
30354B
