378
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM
solvent and inspect it for tears, clogging, or other
damage.

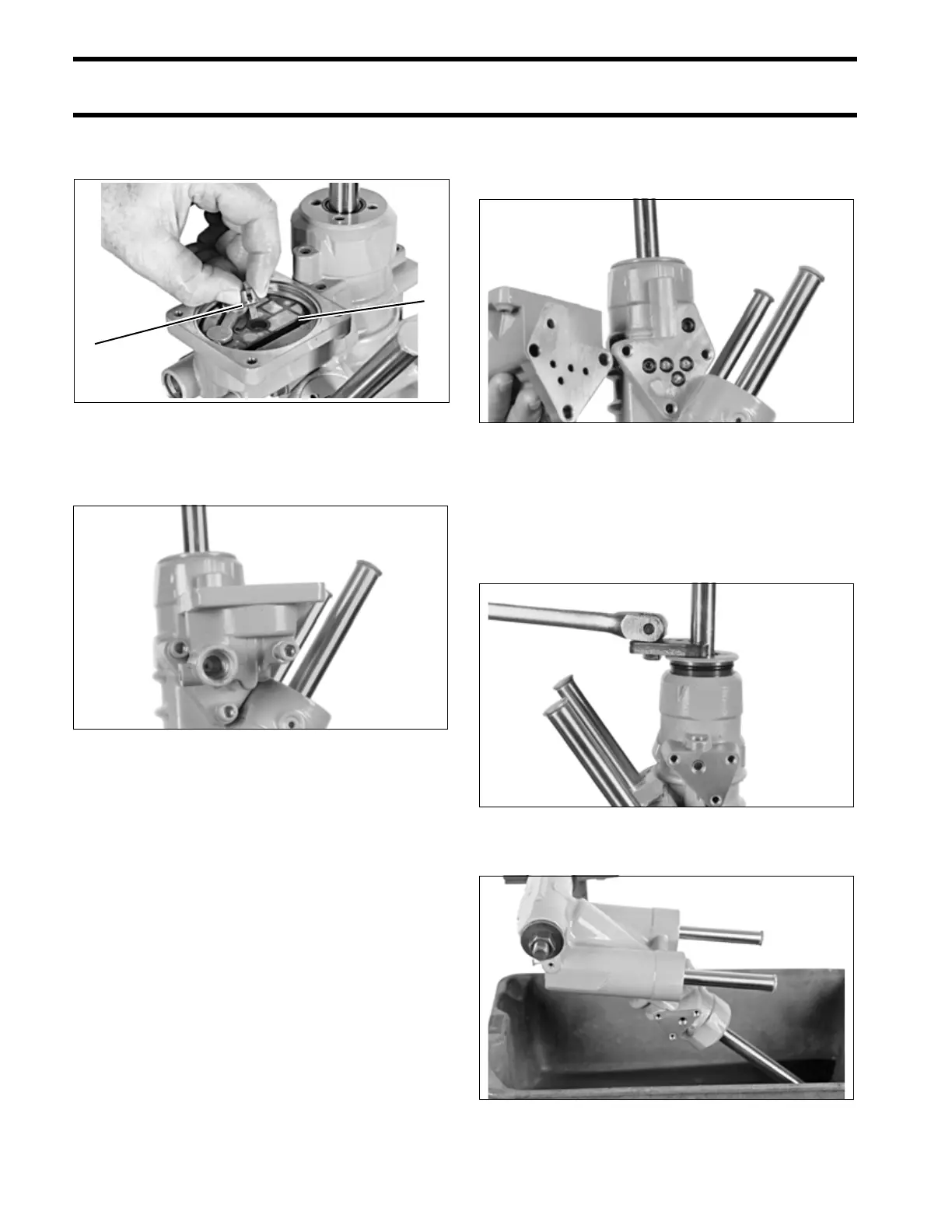

Remove the three Allen head screws securing the
pump manifold assembly to cylinder body.
IMPORTANT: Individual parts in the pump man-
ifold assembly are not available separately. Do
not remove pump or any control valves from the
body.
Remove the manifold. Remove five O-rings from
cylinder body. Check machined surfaces for nicks
and scratches.
Tilt Piston Removal
Use Tilt Cylinder End Cap Remover/Installer,
P/N 326485, or Universal Spanner Wrench,
P/N 912084, and a breaker bar, to unscrew the tilt
rod end cap.
Drain the fluid from above the piston.
1. Coupler
2. Filter screen
41763
41798
2
1
41799
41788
41789
