r
major role in creating satisfactory con-
ditions.
Thus,
the
Indoor Climate An-
alyzer has widespread applications in
the
heating
and
air-conditioning
fields,
both
in buildings
and
vehicles.
The
Analyzer
can
be used
in
con-
junction
with
the
Thermal
Comfort
Meter
Type
1212 to help in
the
provi-
sion of more acceptable working, trav-
elling or leisure conditions.
Using
the
Type
1213,
measurements
can
be con-
ducted
to see
if
an
existing environ-
ment
is satisfactory, or
to
determine
the
type
and
size of
any
improvements
to
heating
and
air
conditioning
plant
that
are
required. Once changes have
been made,
the
Analyzer
can
be used
to assess
whether
the
improvements
are effective.
It
can
also be used to
investigate complaints from
staff
and
provide
quantitative
data
to help
overcome
the
problems encountered.

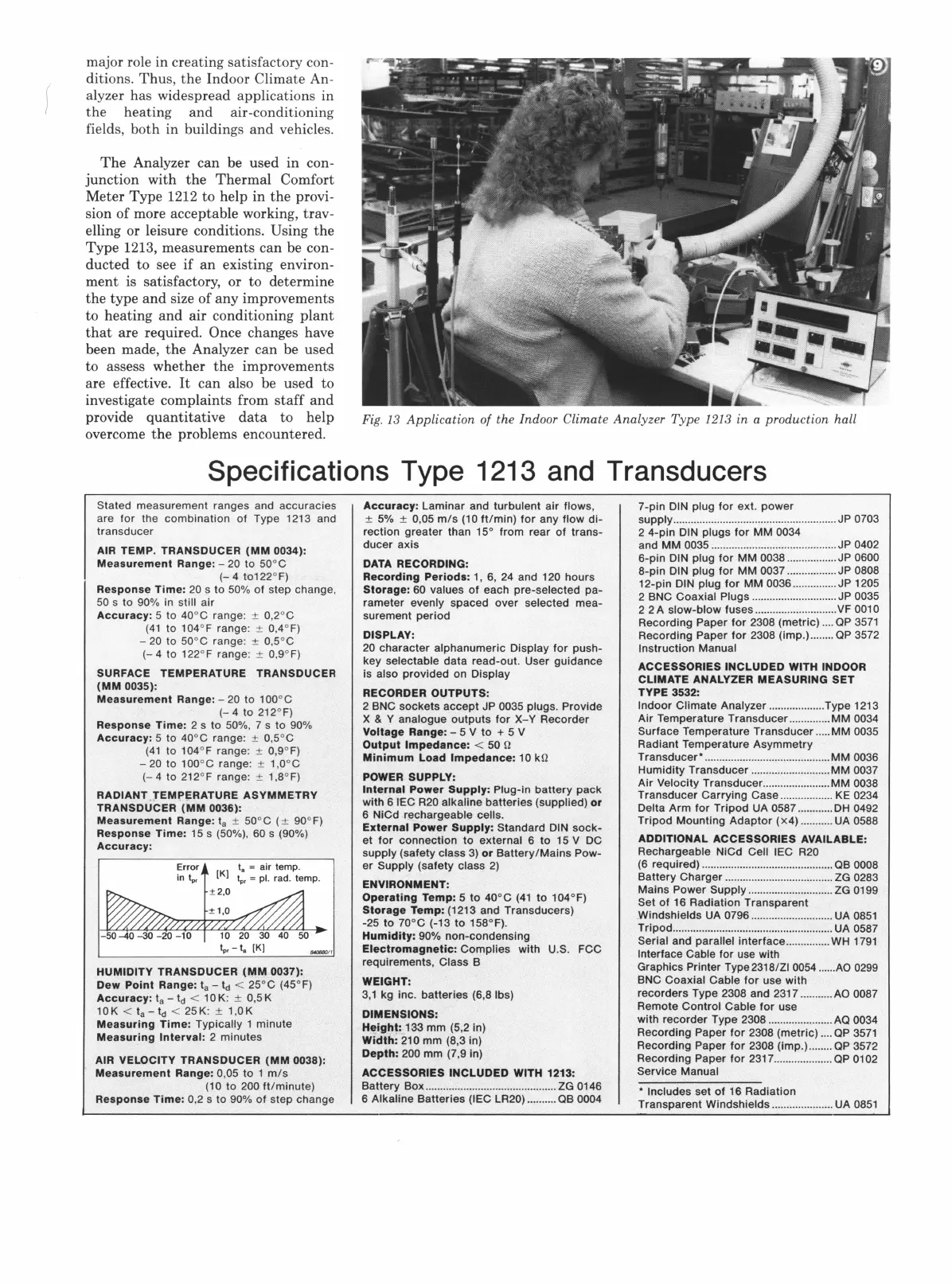

Fig.
13
Application
of
the Indoor Climate Analyzer Type 1213
in
a production hall
Specifications Type 1213 and Transducers
Stated measurement ranges and accuracies
are
for
the
combination
of
Type 1213 and
transducer
AIR TEMP. TRANSDUCER
(MM
0034):
Measurement
Range: - 20 to 50° C
(- 4 to122°
F)
Response
Time:
20
s to 50%
of
step change,
50 s to
90
% in still
air
Accuracy:
5 to
40
°C range: ± 0,2°C
(41
to 104°F range: ± 0,4°
F)
-
20
to
50
°C range: ± 0,5°C
(-
4 to 122° F range: ± 0,9°
F)
SURFACE TEMPERATURE TRANSDUCER
(MM
0035):
Measurement
Range:-
20
to 100°C
(-4
to 212°
F)
Response
Time:
2 s to 50%, 7 s
to
90%
Accuracy:
5 to
40
°C range: ± 0,5°C
(41
to 104°F range: ± 0,9°
F)
-20
to 100°C range: ± 1,0°C
(-
4
to
212°F range: ± 1
,8
°
F)
RADIANT TEMPERATURE
ASYMMETRY
TRANSDUCER .
(MM
0036):
Measurement
Range:
ta
±
50
°C ( ± 90°
F)
Response
Time:
15 s (50%),
60s
(90%)
Accuracy:
Error
t.
=
air
temp.
in
~
[K]
tp,
= pl. rad. temp.
tpr-ta
[K]
HUMIDITY TRANSDUCER
(~M
0037):
Dew
Point
Range:
ta-
td
< 25°C (45°
F)
Accuracy:
ta-
td
< 10
K:
± 0,5 K
10K
< t
8
-tct
<
25K
: ± 1,
0K
Measuring
Time:
Typically 1 minute
Measuring
Interval:
2 minutes
AIR VELOCITY TRANSDUCER
(MM
0038):
Measurement
Range: 0,05
to
1
m/s
(1
0
to
200
ft/minute)
Response
Time:
0,2 s to 90%
of
step change
Accuracy:
Laminar and turbulent
air
flows,
±
5%
± 0,05
m/s
(10ft/min)
for
any
flow
di-
rection
greater
than 15°
from
rear
of
trans-
ducer
axis
DATA RECORDING:
Recording
Periods:
1,
6,
24 and 120
hours
Storage:
60 values
of
each pre-selected
pa-
rameter evenly spaced
over
selected
mea-
surement
period
DISPLAY:
20
character
alphanumeric Display
for
push-
key selectable
data
read-out. User
guidance
is also
provided
on Display
RECORDER OUTPUTS:
2 BNC
sockets
accept
JP 0035 plugs. Provide
X & Y analogue
outputs
for
X-Y
Recorder
Voltage
Range: - 5 V
to
+ 5 V
Output
Impedance:
< 50 Q
Minimum
Load
Impedance:
10
kQ
POWER SUPPLY:
Internal
Power
Supply:
Plug-in
battery
pack
with 6 IEC R20 alkaline
batteries
(supplied)
or
6 NiCd rechargeable cells.
External
Power
Supply:
Standard DIN
sock-
et
for
connection
to
external 6
to
15 V DC
supply (safety class
3)
or
Battery/Mains
Pow-
er
Supply (safety class
2)
ENVIRONMENT:
Operating
Temp:
5
to
40°C
(41
to
104°F)
Storage
Temp:
(1213 and Transducers)
-25
to
70°C
(-13
to
158°F).
Humidity:
90%
non-condensing
Electromagnetic:
Complies
with
U.S. FCC
requirements, Class B
WEIGHT:
3,1
kg inc.
batteries
(6,8 lbs)
DIMENSIONS:
Height:
133 mm (5,2 in)
Width:
210
mm
(8,3 in)
Depth:
200
mm
(7,9 in)
ACCESSORIES INCLUDED WITH 1213:
Battery
Box ....
....
...
.....
...
.....
.....
..
...
........... ZG 0146
6 Alkaline Batteries (lEG LR20) ..........
QB
0004
7
-pin
DIN plug
for
ext.
power
supply .........
..
..................................
...
..
..
.... JP 0703
2
4-pin
DIN plugs
for
MM 0034
and
MM
0035
.....
............
..
...............
..
.
...
...
JP 0402
6-pin
DIN plug
for
MM 0038
...
...
..
...
...
...
JP 0600
8-pin
DIN plug
for
MM 0037
..
...........
..
.. JP 0808
12-pin DIN plug
for
MM
0036
..
.......
....
..
JP 1205
2 BNC
Coaxial
Plugs ...................
...
..
..... JP 0035
2 2 A stow-blow fuses
..
.........
......
.
....
..
....
VF
001
0
Recording Paper
for
2308 (metric) ....
QP
3571
Recording Paper
for
2308 (imp.) ........
QP
3572
Instruction
Manual
ACCESSORIES
INCLUDED
WITH INDOOR
CLIMATE
ANALYZER MEASURING SET
TYPE
3532:
Indoor
Climate
Analyzer ................... Type 1213
Air
Temperature
Transducer
.............. MM 0034
Surface Temperature Transducer ..... MM 0035
Radiant Temperature
Asymmetry
Transducer* ........................................... MM 0036
Humidity
Transducer
..
.....................
...
.
MM
0037
Air
Velocity Transducer .......................
MM
0038
Transducer
Carrying
Case
..................
KE
0234
Delta
Arm
for
Tripod
UA 0587 ............ DH 0492
Tripod
Mounting
Adaptor
(x4)
........... UA 0588
ADDITIONAL ACCESSORIES
AVAILABLE:
Rechargeable
NiCd
Cell IEC R20
(6
required)
...
....
..
....
...
...
.....
..
................... QB 0008
Battery
Charger
.............
..
....
..
...
.....
...
..... ZG 0283
Mains Power Supply ............................. ZG 0199
Set
of
16 Radiation
Transparent
Windshields
UA 0796
...
......................... UA
0851
Tripod
....................................................... UA 0587
Serial and parallel
interface
.
.....
..
....... WH
1791
Interface Cable
for
use with
Graphics Printer Type
2318/ZI 0054
......
AO
0299
BNC
Coaxial
Cable
for
use with
recorders Type
2308 and 2317 ...........
AO
0087
Remote
Control
Cable
for
use
with
recorder
Type 2308 ............
..
........
AQ
0034
Recording Paper
for
2308
(metric)
..
..
QP
3571
Recording Paper
for
2308 (imp.)
....
...
.
QP
3572
Recording Paper
for
2317 ....................
QP
0102
Service Manual
*
Includes set
of
16 Radiation
Transparent Windshields ............
..
....... UA
0851
