2.1. FRONT PANEL
2.1.1. Power Switch
On-Off:
2.
CONTROLS
On
6rilei&KIB&r
Indoor Climate Analyzer
Type
1213

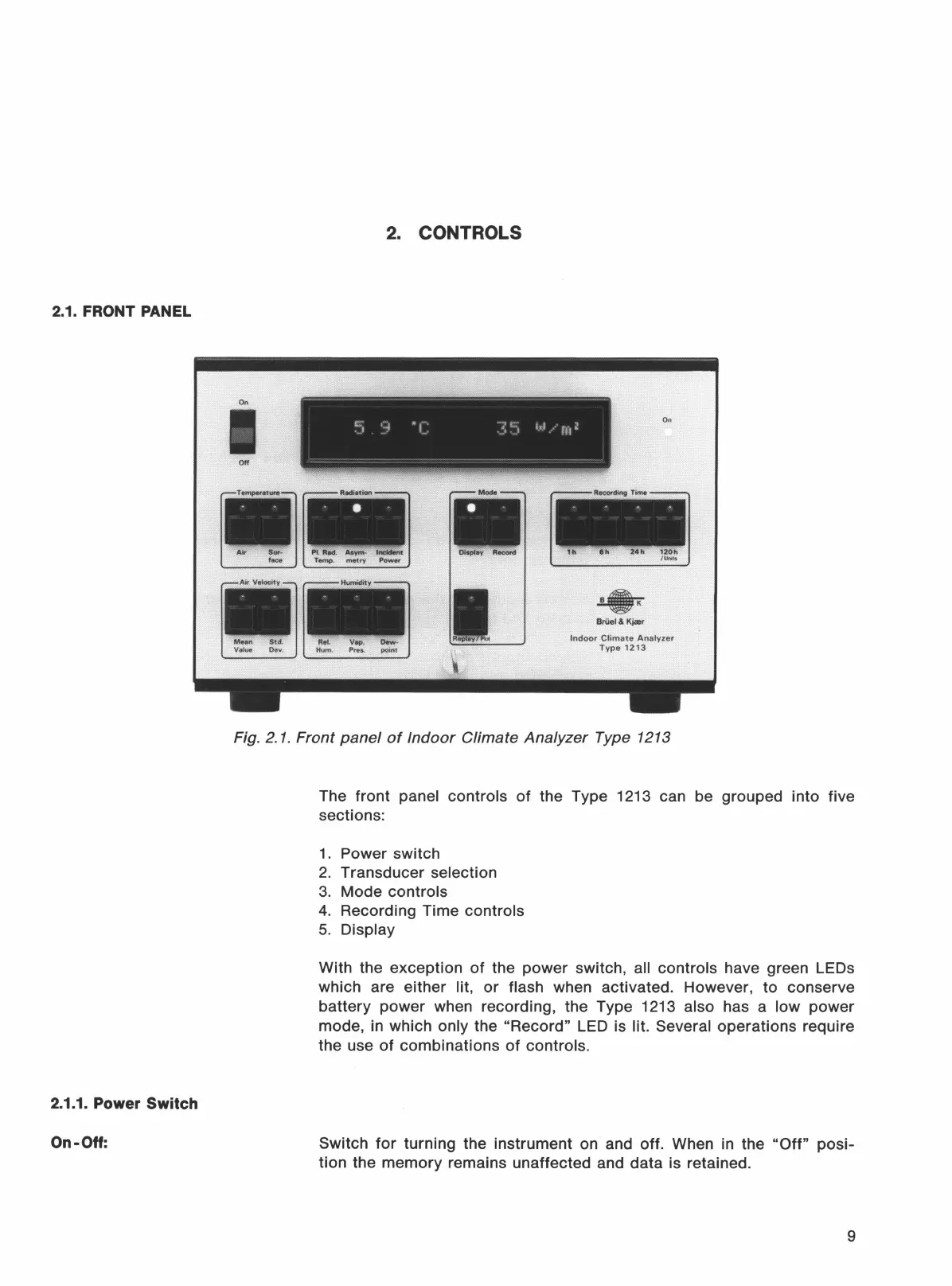

Fig.
2.
1.
Front
panel
of
Indoor
Climate
Analyzer
Type 1213
The front panel controls
of
the Type 1213 can be grouped into five
sections:
1 . Power switch
2.
Transducer selection
3.
Mode controls
4.
Recording Time controls
5.
Display
With the exception
of
the power switch, all controls have green LEOs
which are either
lit,
or
flash when activated. However, to conserve
battery
power
when recording, the Type 1213 also has a low power
mode, in which
only the "Record" LED is lit. Several operations require
the use
of
combinations
of
controls.
Switch
for
turning the instrument on and off. When in the
"Off"
posi-
tion the
memory
remains unaffected and
data
is retained.
9
