18
Fastening Screws
for
lid
of
Battery Box

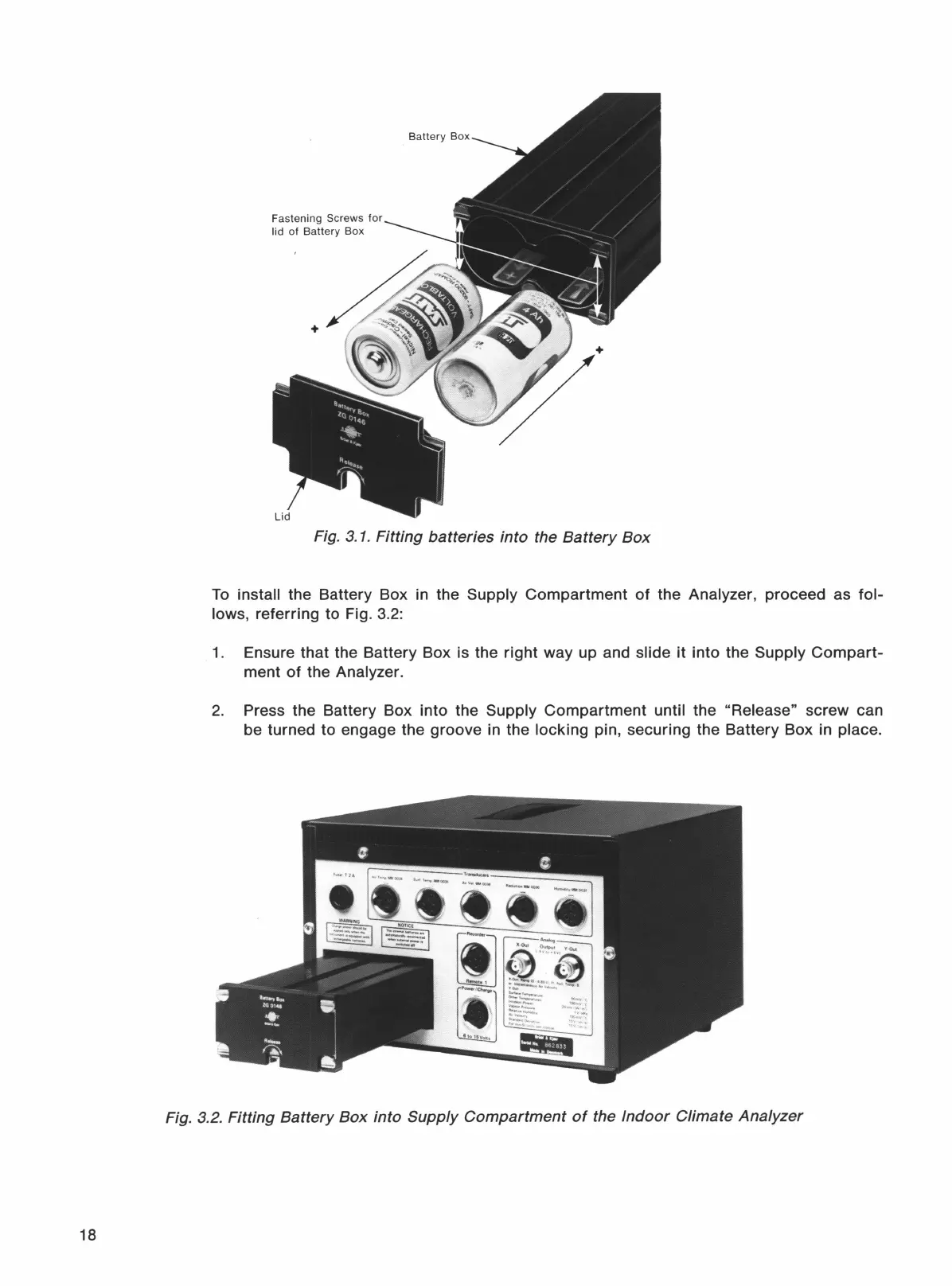

Fig. 3.1. Fitting batteries into the
Battery
Box
To
install the Battery Box in the Supply
Compartment
of
the Analyzer, proceed as
fol-
lows, referring to Fig. 3.2:
1.
Ensure that the Battery Box is the right way up and slide
it
into the Supply
Compart-
ment
of
the Analyzer.
2.
Press the Battery Box into the Supply
Compartment
until the "Release" screw can
be turned to engage the groove in the
locking pin, securing the Battery Box in place.
Fig. 3.2. Fitting
Battery
Box
into Supply
Compartment
of
the
Indoor
Climate Analyzer
