1,7m
0

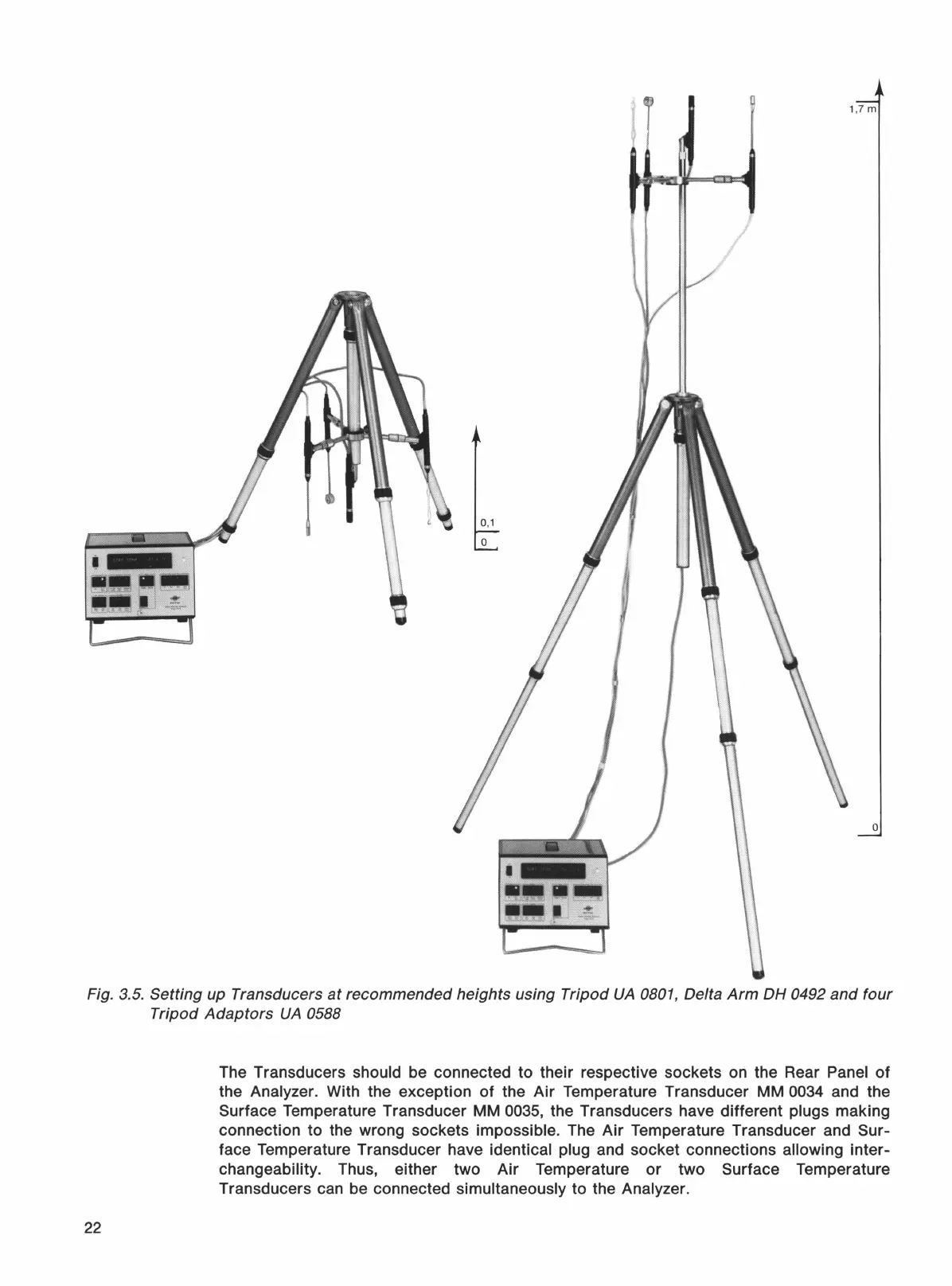

Fig. 3.5. Setting up Transducers
at
recommended heights using Tripod
UA
0801, Delta
Arm
DH 0492
and
four
Tripod
Adaptors
UA
0588
22
The Transducers should be connected to their respective sockets on the Rear Panel
of
the Analyzer. With the exception
of
the Air Temperature Transducer
MM
0034 and the
Surface Temperature Transducer MM 0035, the Transducers have different plugs making
connection to the wrong sockets impossible. The Air Temperature Transducer and Sur-
face Temperature Transducer have identical plug and socket connections allowing inter-
changeability. Thus, either two Air Temperature
or
two Surface Temperature
Transducers can be connected simultaneously to the Analyzer.
