Bruker ICON - 2.4 Anesthesia Cabinet

Icon System Manual T02985_02_03 13
MRI System Overview
2.4 Anesthesia Cabinet
The left-most cabinet is prepared for the use of an Isofluorane evaporator and an active
carbon filter for scavenging (both options).

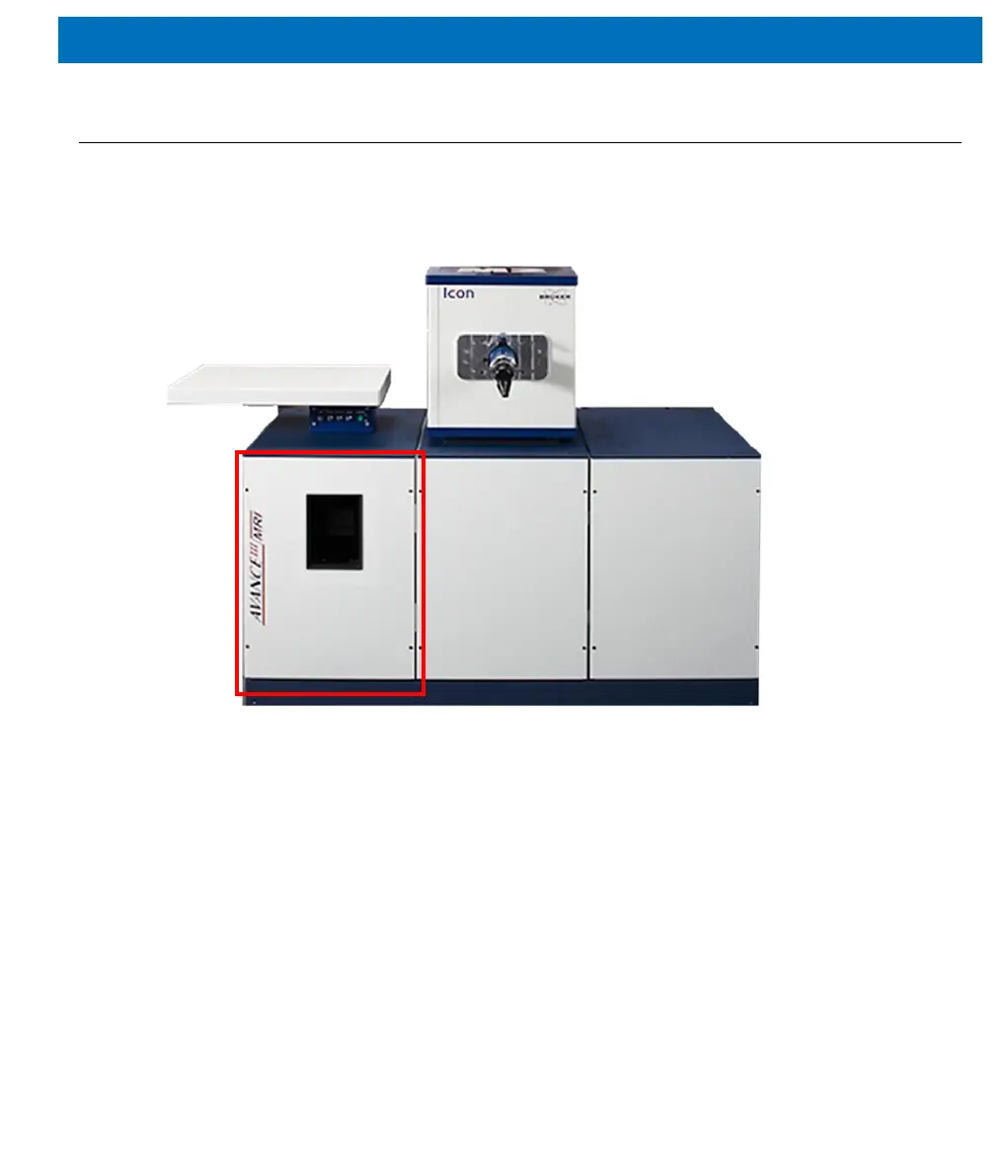

Figure 2.4: The left-most cabinet is prepared for the usage of an anesthetic gas evaporator and an
anesthetic scavenging system.
