4.
Lift center piece from the water tank and place to
the side (Fig. 53).
5.
NOTICE! Ensure that the fan does not fall out
after the bolts have been removed.
Remove the three bolts located on the bottom side,
counter-clockwise and take out completely
(Fig. 54/1).
6.
Remove fan.
7.
Insert new fan.
8.
Run the screw threads on the vibration dampers
through the holes in the center plate.
9.
Retighten fan at the bottom of the center piece
(Fig. 55/1).

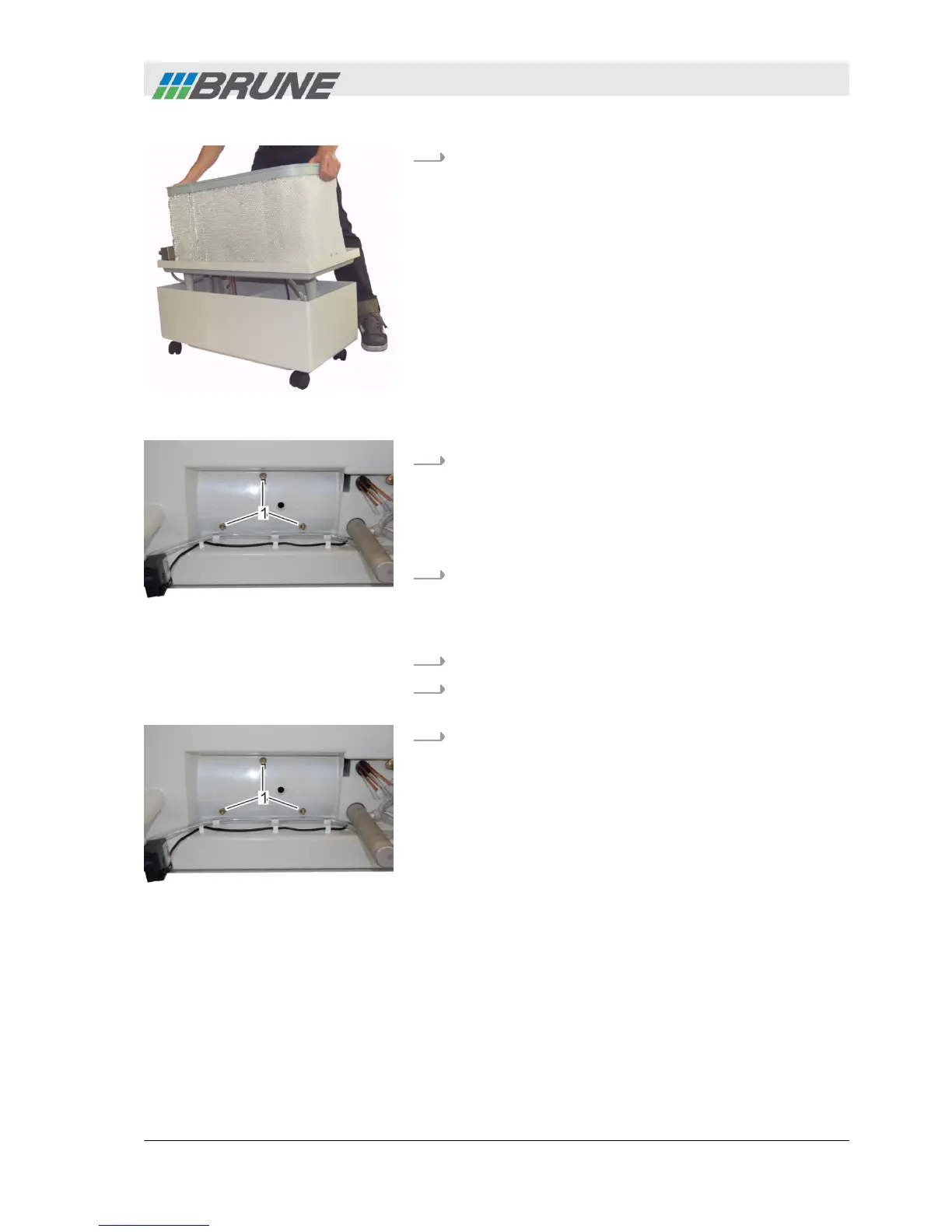

Fig. 53: Remove center piece
Fig. 54: Remove bolts
Insert new fan
Fig. 55: Tighten fan
Detect and remedy malfunctions
2013-11-04 Evaporation Humidifier B500 Professional 63
