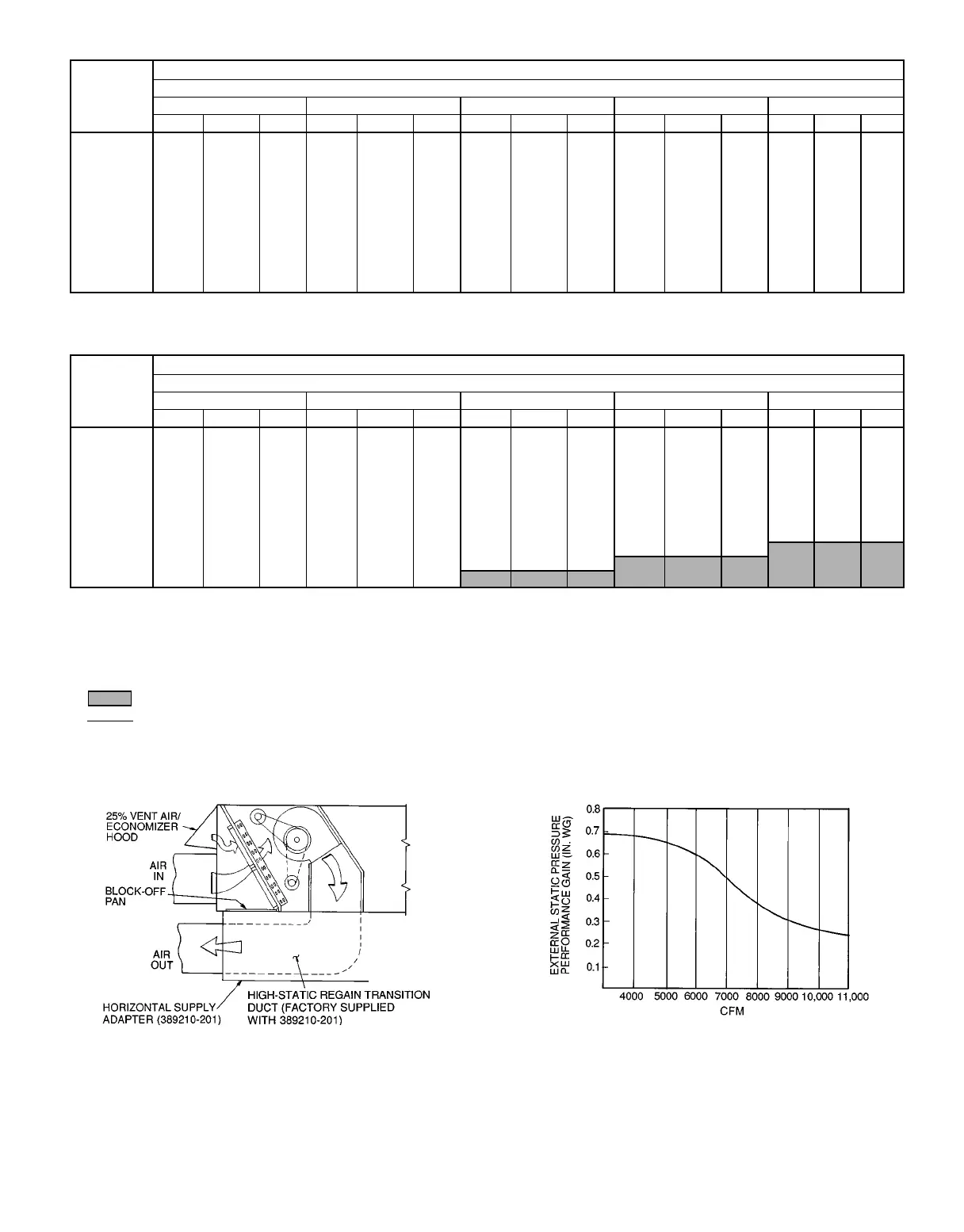

Table 6 — Air Delivery, 542J180 Units
AIRFLOW
(Cfm)
STANDARD BELT-DRIVE MOTOR
External Static Pressure (in. wg)
0.2 0.4 0.6 0.8 1.0
Rpm Watts Bhp Rpm Watts Bhp Rpm Watts Bhp Rpm Watts Bhp Rpm Watts Bhp
4500 584 717 0.8 695 952 1.1 798 1205 1.3 893 1483 1.7 984 1786 2.0
4800 609 839 0.9 717 1085 1.2 815 1346 1.5 907 1630 1.8 994 1938 2.2
5100 634 971 1.1 738 1229 1.4 833 1500 1.7 921 1791 2.0 1006 2104 2.4
5400 660 1118 1.3 760 1389 1.6 852 1669 1.9 937 1968 2.2 1019 2286 2.6
5700 687 1284 1.4 783 1566 1.8 873 1858 2.1 956 2165 2.4 1034 2490 2.8
6000 712 1458 1.6 805 1752 2.0 892 2055 2.3 973 2371 2.7 1049 2703 3.0
6300 736 1644 1.8 826 1952 2.2 911 2265 2.5 990 2591 2.9 1064 2930 3.3
6600 763 1856 2.1 851 2176 2.4 933 2502 2.8 1010 2837 3.2 1082 3186 3.6
6900 788 2078 2.3 873 2410 2.7 954 2747 3.1 1029 3093 3.5 1099 3451 3.9
7200 813 2316 2.6 896 2662 3.0 975 3011 3.4 1048 3367 3.8 1117 3734 4.2
7500 841 2584 2.9 921 2943 3.3 998 3304 3.7 1070 3672 4.1 1137 4049 4.5
Table 6 — Air Delivery, 542J180 Units (cont)
AIRFLOW
(Cfm)
STANDARD BELT-DRIVE MOTOR
External Static Pressure (in. wg)
1.2 1.4 1.6 1.8 2.0
Rpm Watts Bhp Rpm Watts Bhp Rpm Watts Bhp Rpm Watts Bhp Rpm Watts Bhp
4500 1070 2113 2.4 1151 2458 2.8 1229 2819 3.2 1302 3194 3.6 1371 3578 4.0
4800 1078 2269 2.5 1157 2620 2.9 1233 2990 3.3 1306 3374 3.8 1375 3769 4.2
5100 1086 2439 2.7 1164 2795 3.1 1238 3170 3.5 1310 3560 4.0 1378 3965 4.4
5400 1097 2626 2.9 1172 2986 3.3 1245 3366 3.8 1315 3763 4.2 1382 4174 4.7
5700 1110 2835 3.2 1183 3200 3.6 1253 3584 4.0 1322 3986 4.5 1388 4404 4.9
6000 1122 3053 3.4 1193 3422 3.8 1262 3810 4.3 1329 4216 4.7 1393 4638 5.2
6300 1135 3286 3.7 1204 3660 4.1 1271 4052 4.5 1336 4461 5.0 1399 4887 5.5
6400 1151 3549 4.0 1218 3928 4.4 1283 4325 4.8 1347 4739 5.3 1409 5169 5.8
6900 1167 3821 4.3 1232 4207 4.7 1295 4608 5.2 1357 5026 5.6 1417 5460 6.1
7200 1183 4113 4.6 1246 4505 5.0 1308 4912 5.5 1368 5335 6.0 1427 5773 6.5
7500 1202 4437 5.0 1264 4837 5.4 1324 5251 5.9 1383 5679 6.4 1440 6122 6.9
LEGEND
Bhp — Brake Horsepower Input to Fan
FIOP — Factory-Installed Option
Watts — Input Watts to Motor
NOTES:
1. Boldface indicates field-supplied drive required.
2. indicates field-supplied motor and drive required.
3.
indicates maximum bhp/watts of standard motor and drive.
4. Factory-shipped motor drive range is 799 to 1010 rpm. Other rpms
may require a field-supplied drive.
5. Maximum continuous bhp is 5.90 and maximum continuous watts
are 5180. Do not adjust motor rpm such that motor maximum bhp
and/or watts is exceeded at the maximum operating cfm.
6. Static pressure losses (i.e., economizer) must be added to external
static pressure before entering Air Delivery table.
7. Interpolation is permissible. Do not extrapolate.
8. Fan performance is based on wet coils, clean filters, and casing losses.
See Table 7 for accessory/FIOP static pressure information.
9. Extensive motor and drive testing on these units ensures that the full
horsepower and watts range of the motor can be utilized with confi-
dence. Using your fan motors up to the watts or bhp rating shown
will not result in nuisance tripping or premature motor failure. Unit
warranty will not be affected.
NOTE: The 389210-201 high static regain adapter accessory may be
used to provide horizontal supply/return.
Fig. 23 — Horizontal Supply/Return Fan Performance with 389210-201 High Static Regain Adapter
NOTE: The 389210-201 horizontal supply/return adapter accessory im-
proves 542J fan performance by increasing external static pressure by
amount shown above.
—17—
