Bryant 542J - Typical Wiring Schematic

117
TYPICAL WIRING SCHEMATIC (cont)
5L3 3L2 1L1 LINE
6T3 4T2 2T1 LOAD

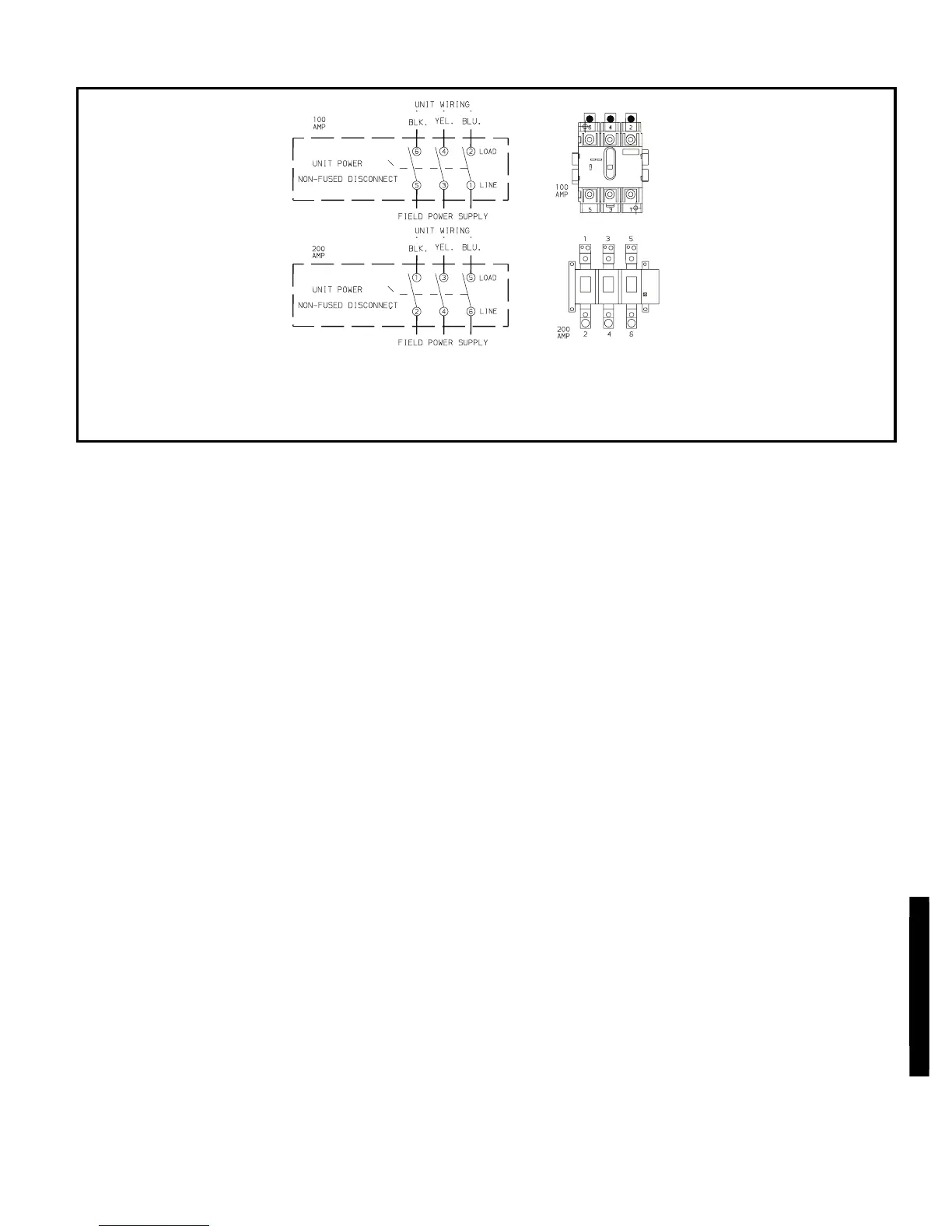

Optional Non-Fused Disconnect — 542J150,180
NOTES:
1. If the non-fused disconnect Service Option is ordered for size 150,180 units, the
Non-Fused Disconnect will be factory-installed.
2. The Disconnect takes the place of TB-1 as shown on the unit wiring diagram label
and the component arrangement label.
50TFQ004-012
542J150,180
