Bryant 582A User Manual

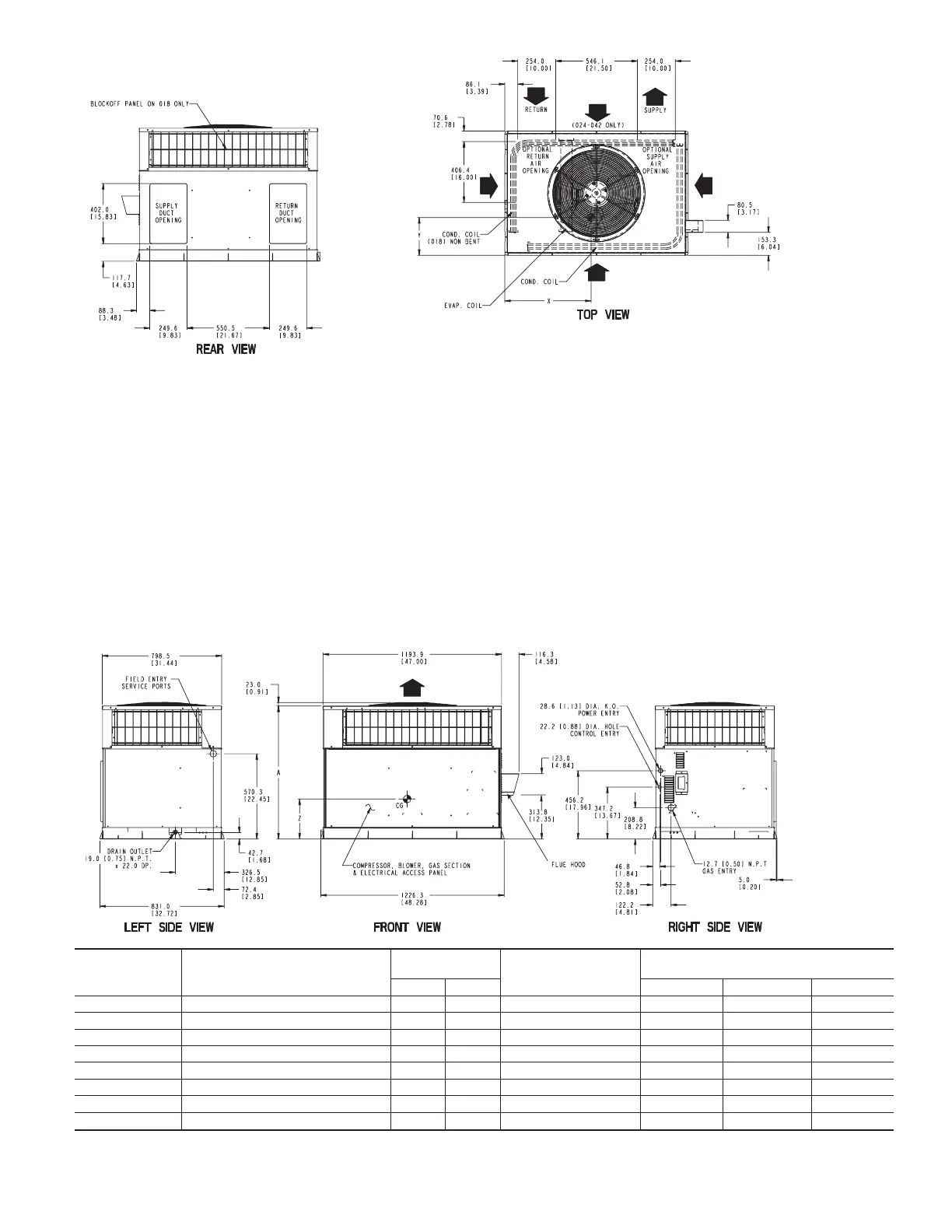

Fig. 2—582A018-042 and 583A024-036 Unit Dimensions
UNIT ELECTRICAL CHARACTERISTICS
UNIT WEIGHT
UNIT HEIGHT IN. (MM)
″A″
CENTER OF GRAVITY
IN. (MM)
lb kg X Y Z
582A018040 208/230-1-60 249.0 113.2 35.02 (889.5) 20.0 (508.0) 14.0 (355.6) 15.0 (381.0)
582A024040/060 208/230-1-60 280.0 127.3 35.02 (889.5) 22.5 (571.5) 13.0 (330.2) 15.0 (381.0)
582A030040/060 208/230-1-60, 208/230-3-60 280.0 127.3 35.02 (889.5) 21.5 (546.1) 13.75 (349.3) 15.0 (381.0)
582A036060/090 208/230-1-60, 208/230-3-60, 460-3-60 320.0 145.1 37.02 (940.3) 22.5 (571.5) 14.0 (355.6) 13.0 (330.2)
582A042060/090 208/230-1-60, 208/230-3-60, 460-3-60 355.0 161.4 35.02 (889.5) 21.5 (546.1) 13.5 (342.9) 13.0 (330.2)
583A024040/060 208/230-1-60 290.0 131.5 35.02 (889.5) 22.0 (558.8) 14.5 (368.3) 16.0 (406.4)
583A030040/060 208/230-1-60, 208/230-3-60 313.0 142.0 39.02 (991.1) 22.0 (558.8) 15.3 (387.4) 17.6 (447.0)
583A036060/090 208/230-1-60, 208/230-3-60, 460-3-60 321.0 145.6 35.02 (889.5) 22.0 (558.8) 15.3 (387.4) 16.5 (419.1)
C00055
REQUIRED CLEARANCE FOR OPERATION AND SERVICING
INCHES [mm]
EVAP. COIL ACCESS SIDE............................................................36.00 [914.0]
POWER ENTRY SIDE....................................................................36.00 [914.0]
(EXCEPT FOR NEC REQUIREMENTS)
UNIT TOP.......................................................................................48.00 [1219.2]
SIDE OPPOSITE DUCTS ..............................................................36.00 [914.0]
DUCT PANEL .................................................................................12.00 [304.8] *
*MINIMUM DISTANCES: IF UNIT IS PLACED LESS THAN 12.00 [304.8] FROM
WALL SYSTEM, THEN SYSTEM PERFORMANCE MAYBE COMPROMISE.
REQUIRED CLEARANCE TO COMBUSTIBLE MATL.
INCHES [mm]
TOP OF UNIT...................................................................................14.00 [355.6]
DUCT SIDE OF UNIT.........................................................................2.00 [50.8]
SIDE OPPOSITE DUCTS ................................................................14.00 [355.6]
BOTTOM OF UNIT.............................................................................0.50 [12.7]
ELECTRIC HEAT PANEL .................................................................36.00 [914.4]
NEC. REQUIRED CLEARANCES.
INCHES [mm]
BETWEEN UNITS, POWER ENTRY SIDE ....................................42.00 [1066.8]
UNIT AND UNGROUNDED SURFACES, POWER ENTRY SIDE .36.00 [914.0]
UNIT AND BLOCK OR CONCRETE WALLS AND OTHER
GROUNDED SURFACES, POWER ENTRY SIDE.........................42.00 [1066.8]
LEGEND
CG - Center of Gravity
COND - Condensor
EVAP - Evaporator
NEC - National Electrical Code
REQ’D - Required
NOTE: Dimensions are in in. [mm]
—3—
