Bryant 650A - Unit Dimensions; Dimensional Data and Installation Clearances

—2—

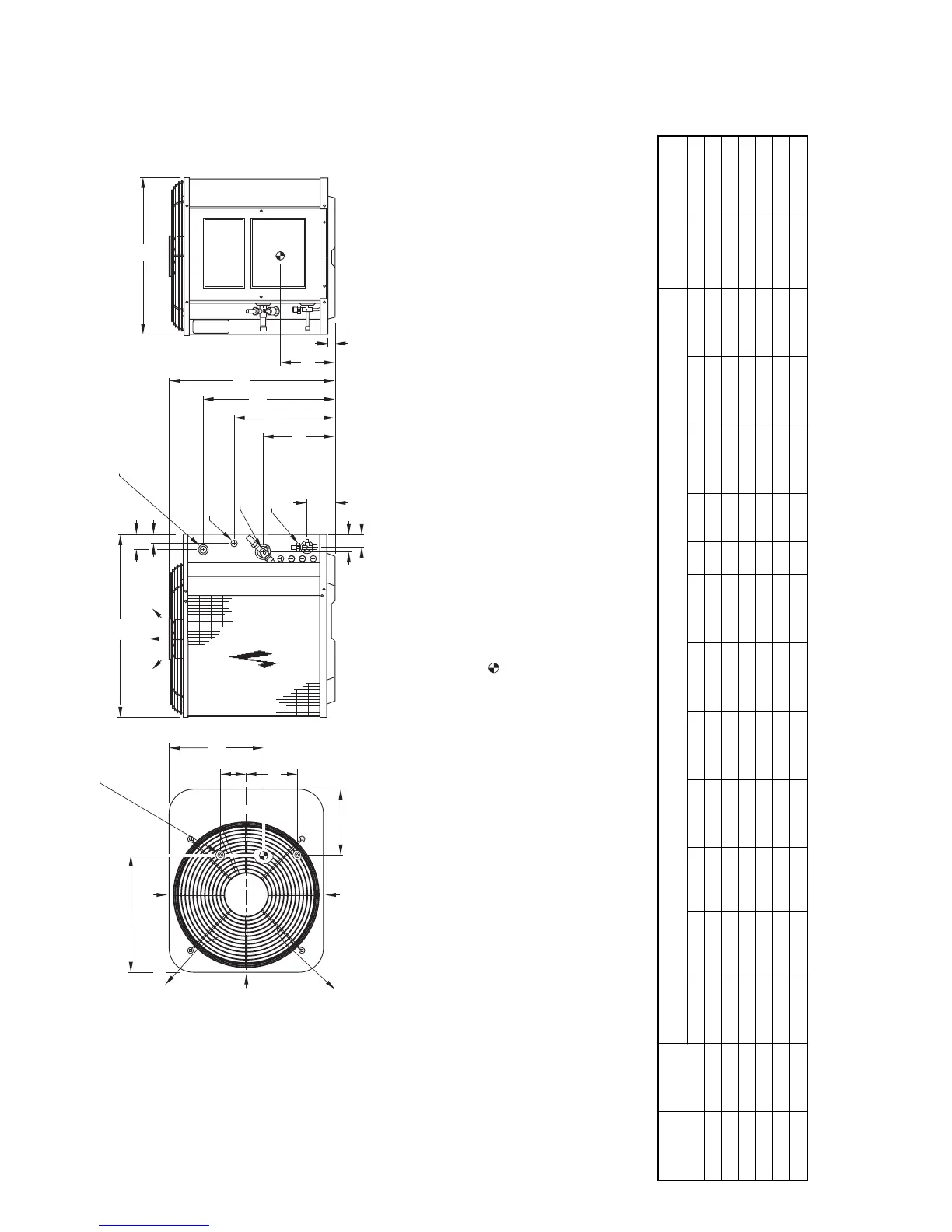

DIMENSIONS
A99088
AIR DISCHARGE
AIR DISCHARGE
AIR IN
AIR IN
AIR IN
3
/8"
DIA. TIEDOWN KNOCKOUTS
(2) PLACES
L
K
J
E
D
C
L
NOTES:
1. ALLOW 30" CLEARANCE TO SERVICE SIDE OF UNIT, 48" ABOVE UNIT, 6" ON ONE SIDE, 12" ON REMAINING SIDE, AND 24" BETWEEN UNITS FOR PROPER AIRFLOW. 2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55°F, (UNLESS LOW AMBIENT CONTROL IS USED) MAX. 125°F. 3. MAXIMUM OUTDOOR OPERATING AMBIENT IN HEATING MODE IS 66°F.
4. SERIES DESIGNATION IS THE 14TH POSITION OF THE UNIT MODEL NUMBER. 5. CENTER OF GRAVITY .
ACCESS
PANEL
1
1
/4
"
2
1
/2
"
AIR DISCHARGE
1
3
/4
"
4
3
/16
"
3
/8"
DIA. LIQUID
LINE CONN.
H
DIA. VAPOR
LINE CONN.
7
/8"
DIA. HOLE
FIELD POWER SUPPLY CONN.
7
/8"
DIA.
HOLE WITH 1
1
/8"
DIA. KNOCKOUT
AND 1
3
/8"
DIA. KNOCKOUT
10
1
/2
"
FIELD CONTROL SUPPLY CONN
1
9
/16
"
C
F
2
15
/16
"
G
A
B
M
DIMENSIONS (IN.)
UNIT
SIZE SERIES
UNIT DIMENSIONS
MINIMUM MOUNTING
PAD DIMENSIONS
ABCD EFGHJK LMSupport Feet Snow Stand
024 D, E 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 5/8 8-3/16 15-7/8 14-3/8 14-1/4 26 x 32 31 x 35 030 D, E 33-13/16 30 33 5-1/16 9-11/16 21-15/16 28-3/8 3/4 8-3/16 14 13-1/8 13-3/4 26 x 32 31 x 35 036 D, E 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 3/4 8-3/16 15-7/8 14-3/8 14-1/4 26 x 32 31 x 35 042 D, E 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 7/8 8-3/16 16-1/4 14 13-1/8 26 x 32 31 x 35 048 D, E, F 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 8-3/16 16-1/4 14-1/4 14-1/2 26 x 32 31 x 35 060 D, E 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 8-3/16 16 13-3/4 14 26 x 32 31 x 35
