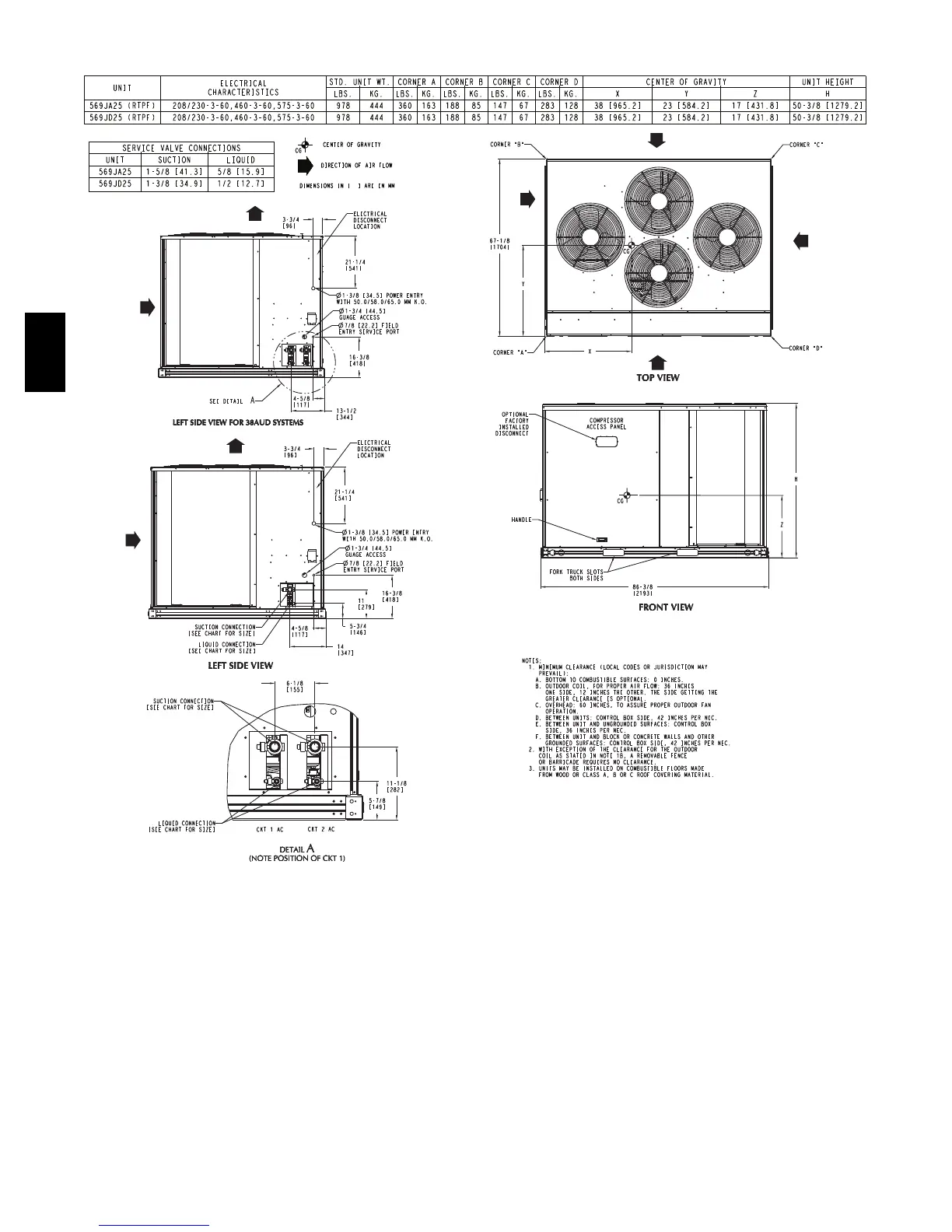

DIMENSIONS (cont.)
UNIT
ELECTRICAL
CHARACTERISTICS
STD. UNIT WT. CORNER A CORNER B CORNER C CORNER D CENTER OF GRAVITY UNIT HEIGHT
LBS. KG. LBS. KG. LBS. KG. LBS. KG. LBS. KG. X Y Z H
569JA25 (RTPF) 208/230-3-60,460-3-60,575-3-60 978 444 360 163 188 85 147 67 283 128 38 [965.2] 23 [584.2] 17 [431.8] 50-3/8 [1279.2]
569JD25 (RTPF) 208/230-3-60,460-3-60,575-3-60 978 444 360 163 188 85 147 67 283 128 38 [965.2] 23 [584.2] 17 [431.8] 50-3/8 [1279.2]
SERVICE VALVE CONNECTIONS
UNIT SUCTION LIQUID
569JA25 1-5/8 [41.3] 5/8 [15.9]
569JD25 1-3/8 [34.9] 1/2 [12.7]
CG
CENTER OF GRAVITY
DIRECTION OF AIR FLOW
DIMENSIONS IN [ ] ARE IN MM
C101214
569J
