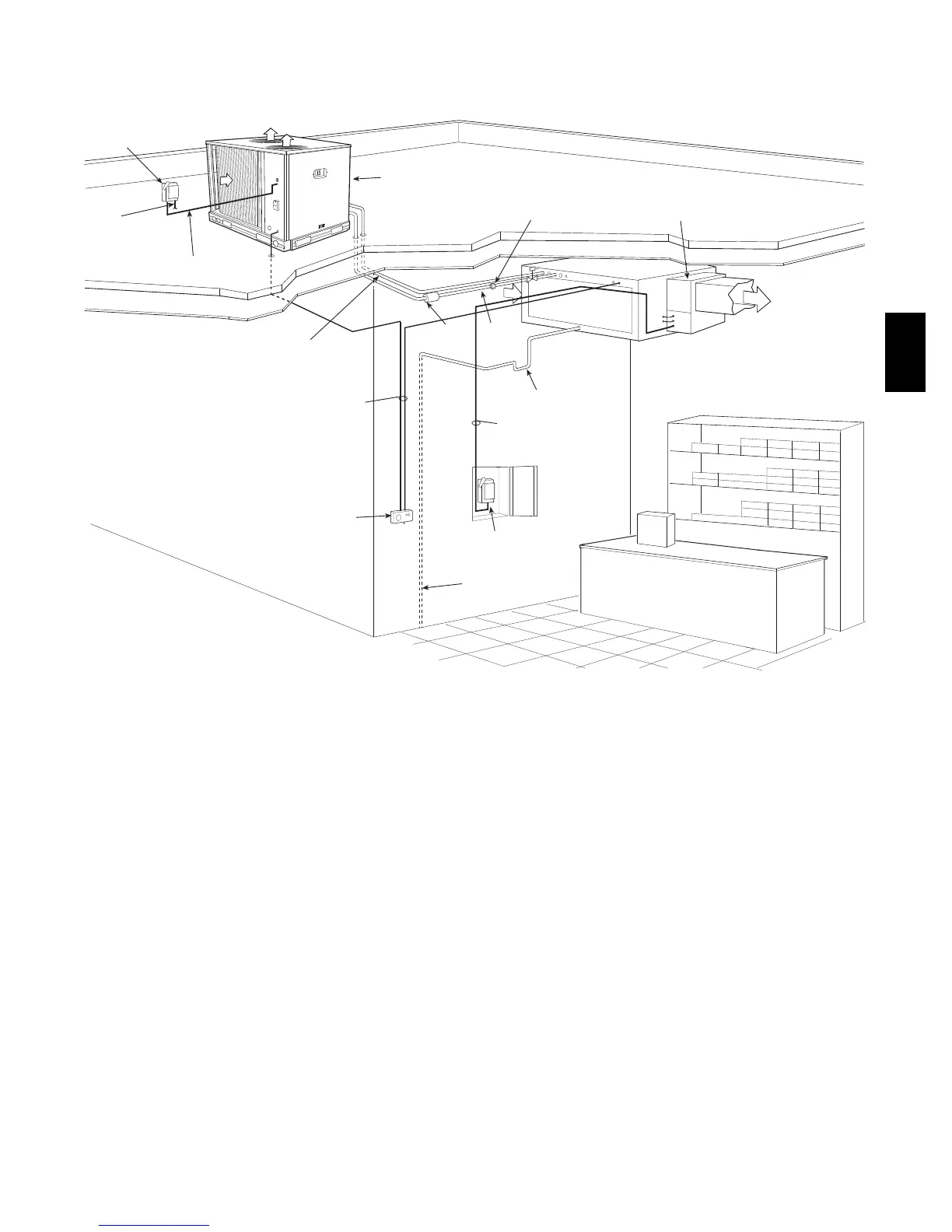

TYPICAL PIPING AND WIRING
Roof Installation and a Ceiling--Mounted Fan Coil
WEATHERPROOF
FUSED DISCONNECT*
PER NEC
FIELD-
SUPPLIED
POWER
INSULATED
VAPOR
LINE
POWER WIRES
CONTROL
WIRES
INDOOR
THERMOSTAT†
OUTDOOR
MOISTURE
INDICATOR
SIGHT GLASS*
ELECTRIC
HEATER
ACCESSORY
INDOOR
UNIT
LIQUID
LINE
FILTER
DRIER*
CONDENSATE DRAIN
POWER WIRES
FUSED DISCONNECT
PER NEC
TO OPEN SIGHT
DRAIN
LLSV*
UNIT
C09054
LEGEND:
NEC --- National Electrical Code
TXV --- Thermostatic Expansion V alve
* Field ---supplied
{ Double riser may be required. Consult condensing unit product data catalog for details.
NOTES:
1. All piping must follow standard refrigerant piping techniques. Refer to Bryant System Design Manual for details.
2. All wiring must comply with the applicable local and national codes.
3. Wiring and piping shown are general points-of-connection guides only and are not intended for, or to include all details for,
a specific installation.
4. Liquid line solenoid valve (solenoid drop contr ol) is recommended to prevent refrigerant migration to the compressor.
5. Internal factory-supplied TXVs not shown.
