55
TYPICAL PIPING AND WIRING (CONT.)

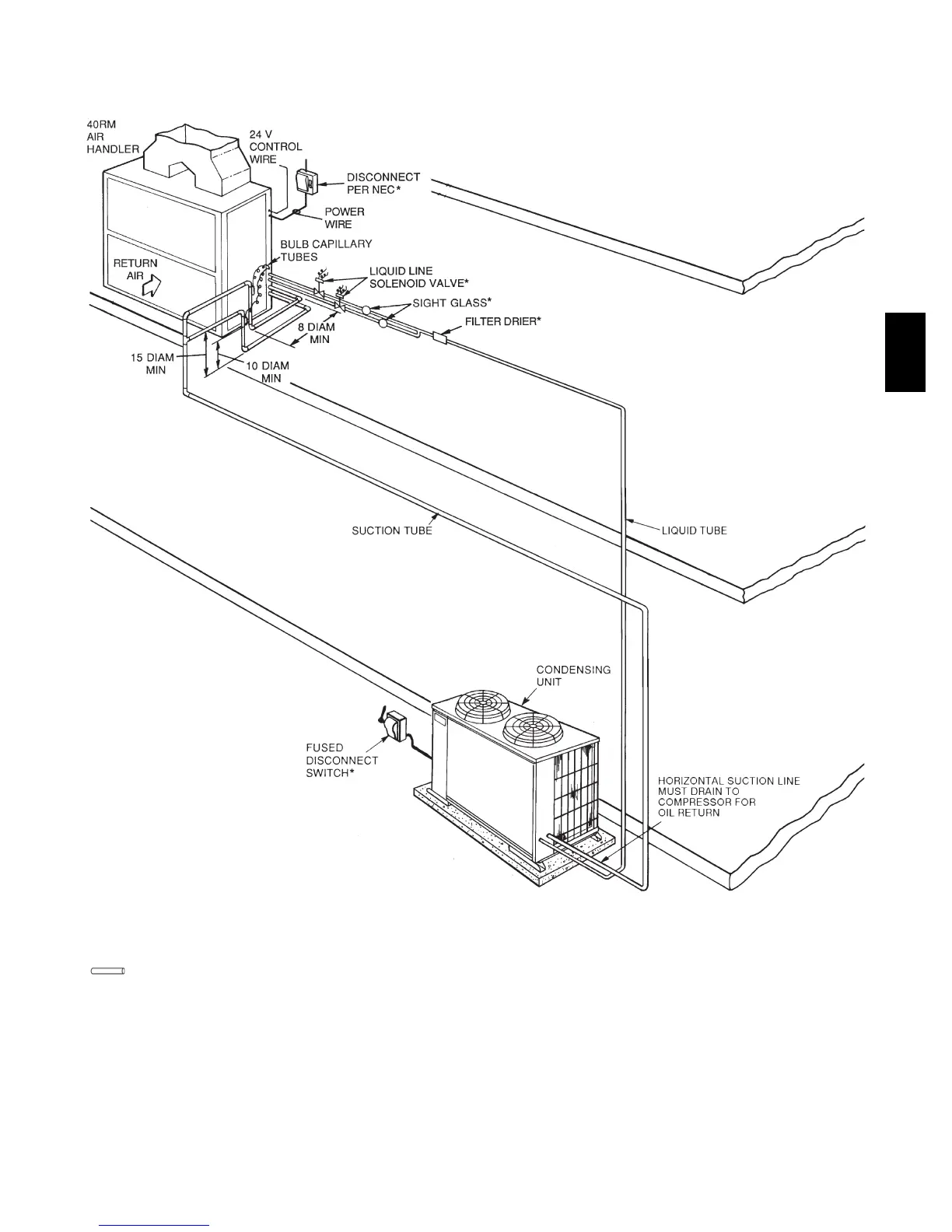

Ground Level Installation and Vertical Discharge Fan Coil
NOTES:
1. All piping must follow standard refrigerant piping techniques. Refer to System
Design Manual for details.
2. All wiring must comply with the applicable local and national codes.
3. Wiring and piping shown are general points-of-connection guides only and are not
intended for, or to include all details for, a specific installation.
4. Liquid line solenoid valve (solenoid drop control) is recommended to prevent refrigerant
migration to the compressor.
5. Internal factory-supplied TXVs not shown.
LEGEND
*Field supplied.
DIAM— Diameter
NEC — National Electrical Code
TXV — Thermostatic Expansion Valve
Piping
C101130
569J
