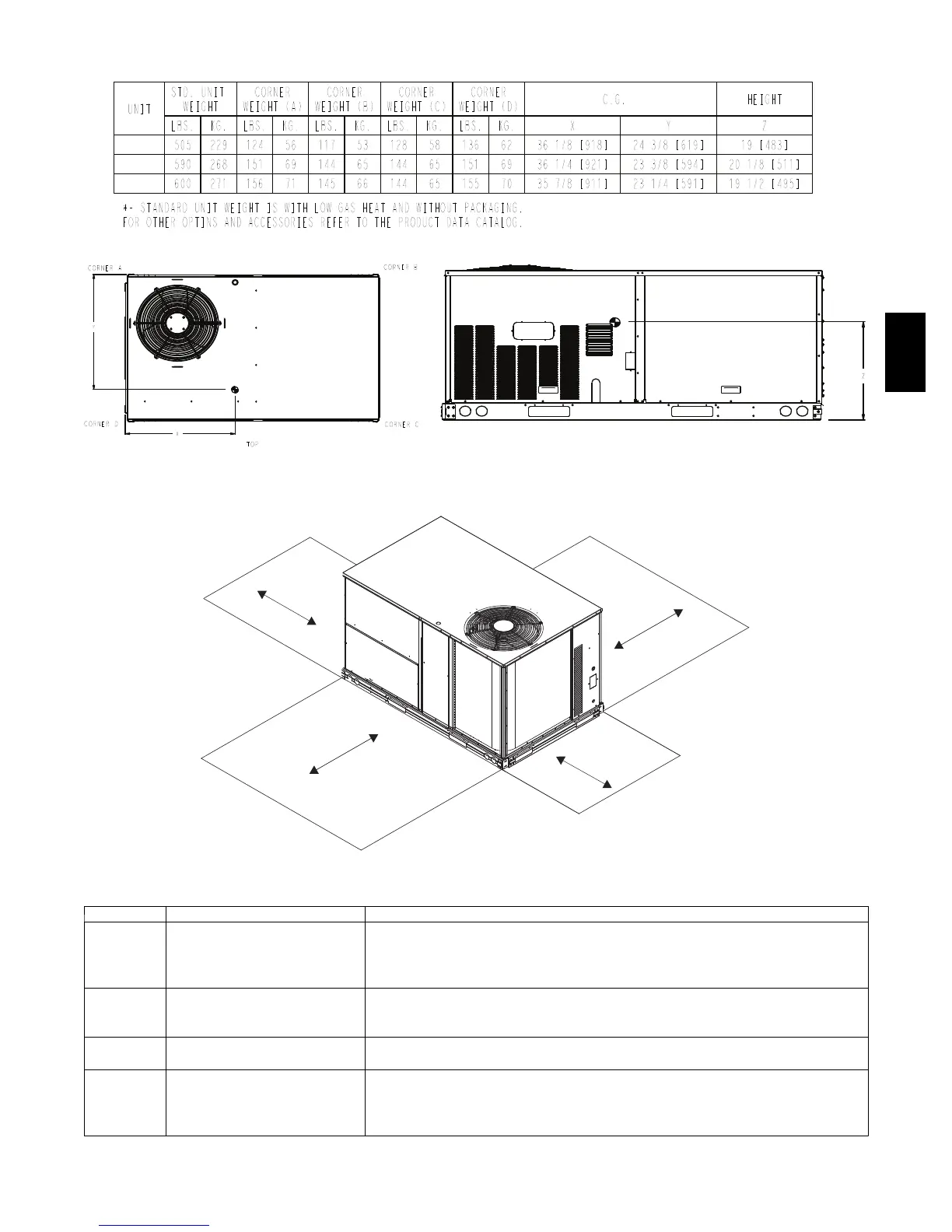

CURBS & WEIGHTS DIMENSIONS -- 581J04--06 (cont.)
UNIT
STD. UNIT
WEIGHT
CORNER
WEIGHT (A)
CORNER
WEIGHT (B)
CORNER
WEIGHT (C)
CORNER
WEIGHT (D)
C.G. HEIGHT
LBS. KG. LBS. KG. LBS. KG. LBS. KG. LBS. KG. X Y Z
505 229 124 56 117 53 128 58 136 62 36 1/8 [918] 24 3/8 [619] 19 [483]
590 268 151 69 144 65 144 65 151 69 36 1/4 [921] 23 3/8 [594] 20 1/8 [511]
600 271 156 71 145 66 144 65 155 70 35 7/8 [911] 23 1/4 [591] 19 1/2 [495]
*- STANDARD UNIT WEIGHT IS WITH LOW GAS HEAT AND WITHOUT PACKAGING.
FOR OTHER OPTINS AND ACCESSORIES REFER TO THE PRODUCT DATA CATALOG.
X
Y
CORNER A
CORNER B
CORNER C
CORNER D
TOP
Z
581J-04A
581J-05A
581J-06A
C10379
Fig. 2 -- Dimensions 581J04--06
C
B
A
D
C08337
Fig. 3 -- Service Clearance
LOC DIMENSION CONDITION
A
48” (1219 mm) Unit disconnect is mounted on panel
18” (457 mm) No disconnect, convenience outlet option
18” (457 mm) Recommended service clearance
12” (305 mm) Minimum clearance
B
42” (1067 mm) Surface behind servicer is grounded (e.g., metal, masonry wall)
36” (914 mm) Surface behind servicer is electrically non--- conductive (e.g., wood, fiberglass)
Special Check for sources of flue products within 10---ft of unit f resh air intake hood
C
36” (914 mm) Side condensate drain is used
18” (457 mm) Minimum clearance
D
48” (1219 mm) No flue discharge accessory installed, surface is combustible material
42” (1067 mm) Surface behind servicer is grounded (e.g., metal, masonry wall, another unit)
36” (914 mm) Surface behind servicer is electrically non--- conductive (e.g., wood, fiberglass)
Special Check for adjacent units or building fresh air intakes within 10---ft of this unit’s flue outlet
581J
