Bryston 3B3 User Manual

8
1. Input Select Switch:
Select either Balanced or Single Ended audio
input.
2. Balanced Audio Input:
This input connector accepts standard XLR (pin
1 = Ground, pin 2 = Positive, pin 3 = Negative) or
1/4” Phone plugs (sleeve = Ground, tip = Positive,
ring = Negative). Use quality, 100% shielded
cables with gold plated connectors.
3. Single Ended Audio Input:
This input connector accepts standard ‘RCA’ or
‘Phono’ connectors. Use quality, 100% shielded
cables with gold plated connectors.
4. Gain Select Switch:
The optimum gain setting will depend upon the
source pre-amp operating level, and or personal
preference.
The 29dB setting is used when the source is
single-ended or from a transformer coupled
balanced source. This is the typical for single
ended or un-balanced operation. The 29dB
setting provides the most amplier gain and
equates to 100w @ 8 ohms output for a 1V input
(noise -110 dB).
The 23dB setting is used when the source
output is actively balanced. This is the typical
setting for balanced operation. Or use this
setting whenever less gain is required. The 23dB
setting equates to an output of 100w @ 8 ohms
for 2V input (noise -113 dB).
The noise is referenced in dB below rated
output. Dierent input congurations result
in slightly dierent noise readings. The above
noise ratings represent minimum readings.
Actual readings may be better.
5. Mode Switch:
The individual setting is for two channel
operation. Bridged mode is for single channel
operation. See “Bridged Mode” on page 6.

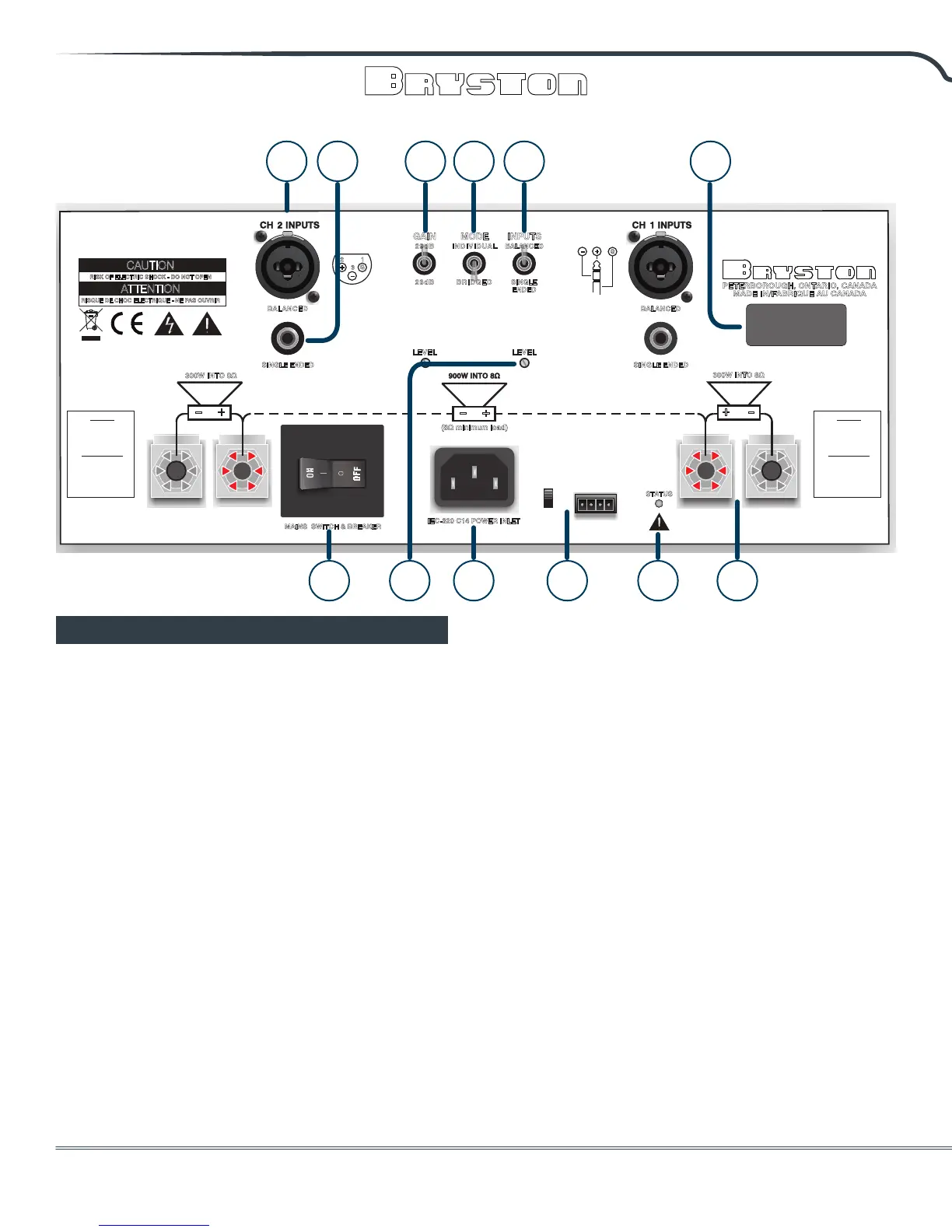

Rear Panel
Model Number
Data Sticker
O
N
F
F
O
o
I
1
2
3
1
2
3
300W INTO 8Ω
3
00W INTO 8Ω
29d B
23d B
MAINS SWITCH & BREAKER
++
--
SINGLE
ENDED
BALANCED
GAIN
+
-
+
_
_
+
3
G
G
2 1
(8Ω minimum load)
INPUTSMODE
IND IVI DUAL
BRI DGE D
BALANCED
SINGLE ENDED
STATUS
BALANCED
SINGLE ENDED
PETERBOROUGH, ONTARIO, CANADA
MADE IN/FABRIQUE AU CANADA
IEC-320 C14 POWER INLET
LEVEL
LEVEL
BRIDGED
INDIVIDUAL
INDIVIDUAL
REMOTE POWER-UP
IN
OUT
LOCAL
EXTERNAL
RISK OF ELECTRIC SHOCK - DO NOT OPEN
CAUTION
PRECAUTION
RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
ATTENTION
CAUTION
CAN ICES-3 (B)/NMB-3(B)
This device complies with FCC
Part 15, subpart B
WARNING
RISK OF HAZARDOUS
ENERGY. MAKE PROPER
SPEAKER CONNECTIONS.
USE CLASS 2 WIRING.
AVERTISSEMENT
RISQUE DE ÉNERGIE
DANGEREUSE. FAIRE
CONNECTIONS ENCEINTE
ADÉQUAT. UTILISATION
CÂBLAGE DE CLASSE 2.
WARNING
RISK OF HAZARDOUS
ENERGY. MAKE PROPER
SPEAKER CONNECTIONS.
USE CLASS 2 WIRING.
AVERTISSEMENT
RISQUE DE ÉNERGIE
DANGEREUSE. FAIRE
CONNECTIONS ENCEINTE
ADÉQUAT. UTILISATION
CÂBLAGE DE CLASSE 2.
12 3 1254
6 78 9 10 11
