BSV EVoBasic-35 - Electrical Wiring Diagram

Manual EVO v.3 64 / 142
3.3- Electrical wiring diagram
3.3.1- BSsalt series equipment

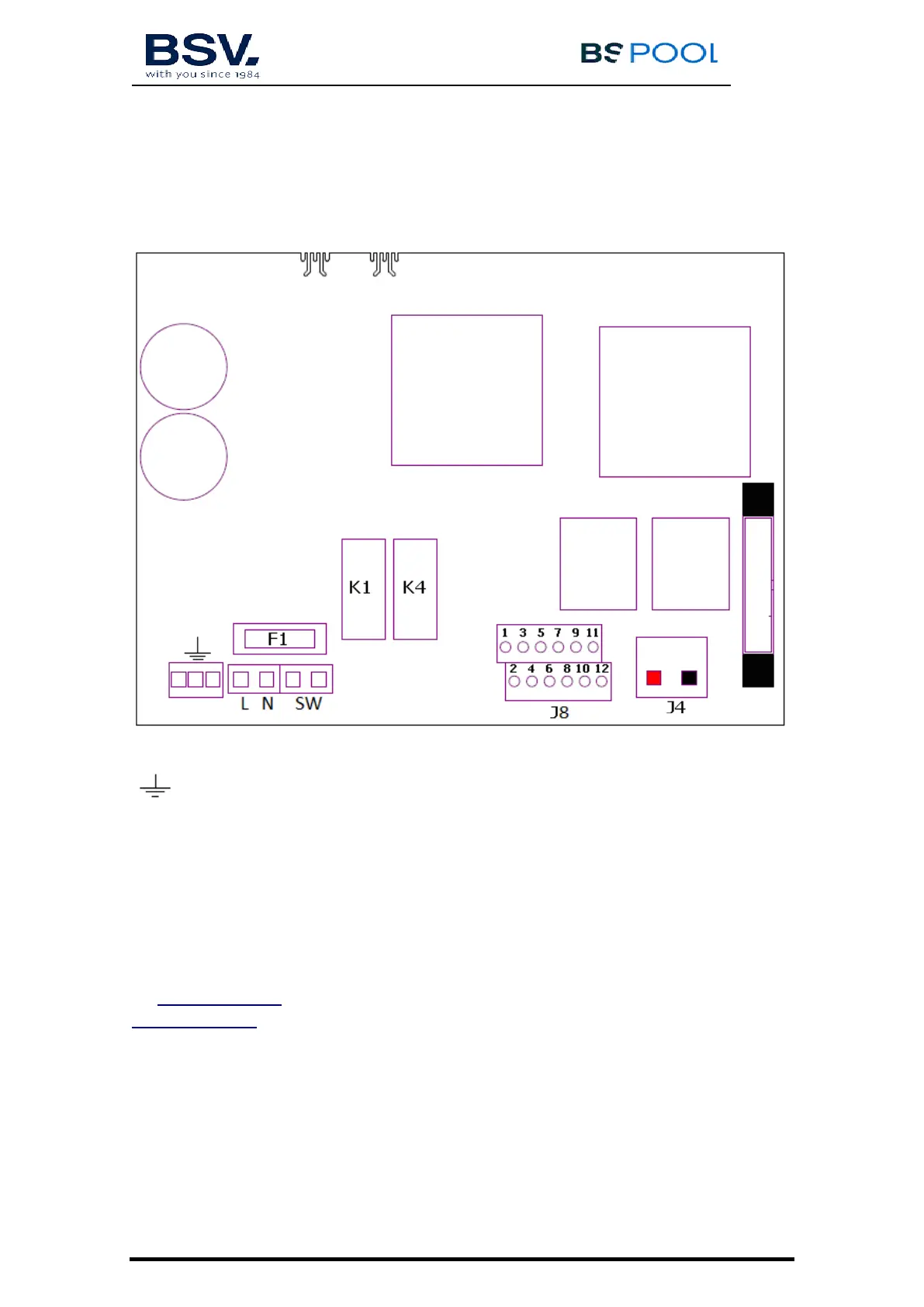

Earth connection
L, N: Supply 220v
SW: On / Off Switch
J4: Terminal block of cell
J8:
1- Unused 7- Unused
2- Unused 8- Unused
3- Unused 9- Unused
4- Unused 10- Unused
5- Water sensor
(white cable) 11- Unused
6- Unused 12- Unused
F1: Fuse
