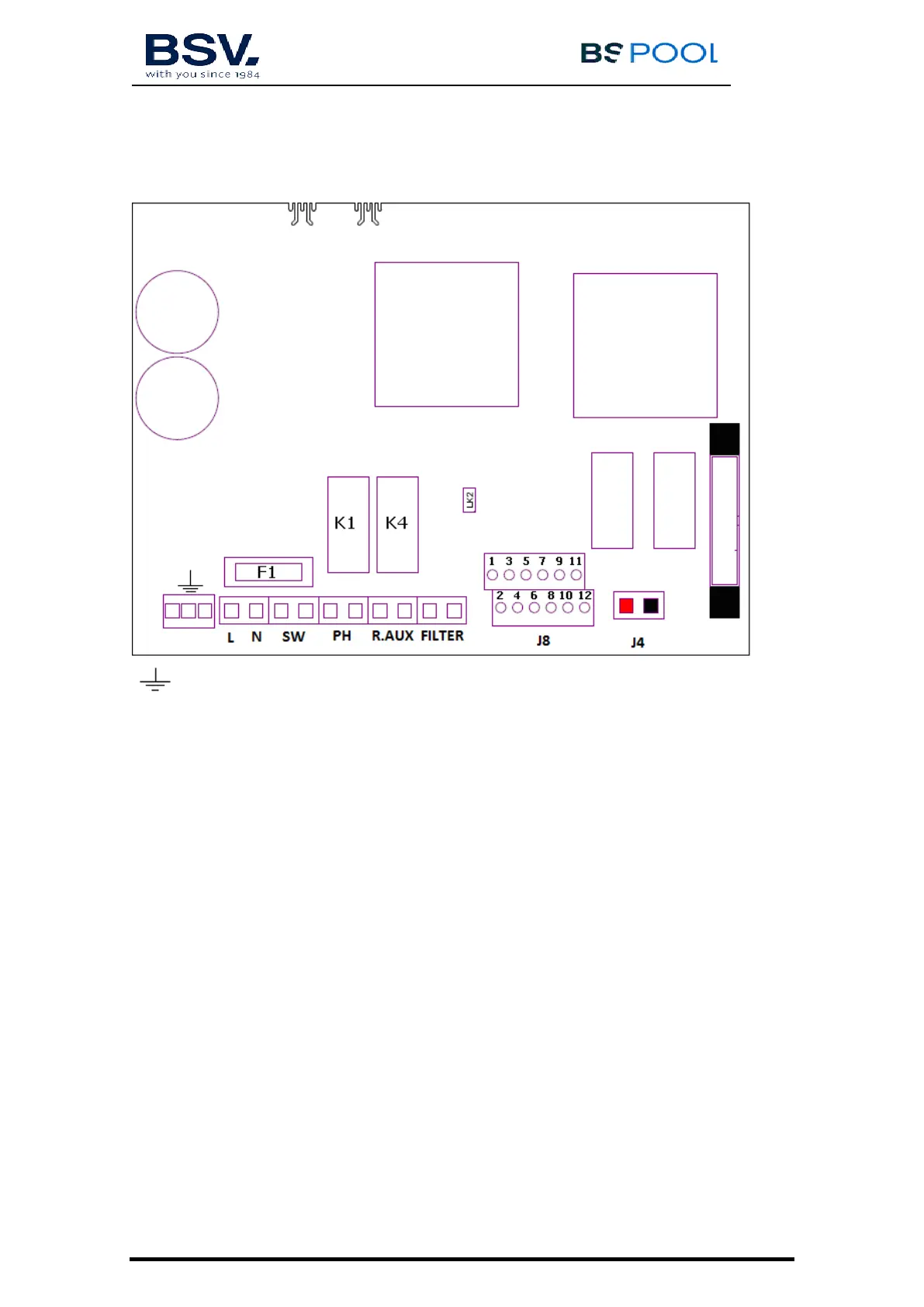

3.3.2- EVO series equipment (EVoBASIC, EVoLOWSALT, EVoMg)
Earth connection
L, N: Supply 220v
SW: On / Off Switch
PH pH pump connection (For units with the AUTO kit)
AUX R: Auxiliary relay
FILTER: Filter connection for Stop / Start mode
J4: Terminal block of cell
J8:
1- Acid sensor (PH) 7- Water sensor (white cable of the cell)
2- Acid sensor (PH) 8- Temperature Probe
3- Cover 9- Temperature Probe
4- Cover 10- ORP-
5- N/C 11- ORP+
6- N/C 12- 12v for external FLOW connection (7-12)*
* activate the FLOW SWITCH operation in the configuration menu
K1: PH Relay
K4: Auxiliary relay
LK2: Stop/Start (see Page 65)
F1: Fuse
