3.3.3.2- Programming the spotlights of the pool through the auxiliary
relay

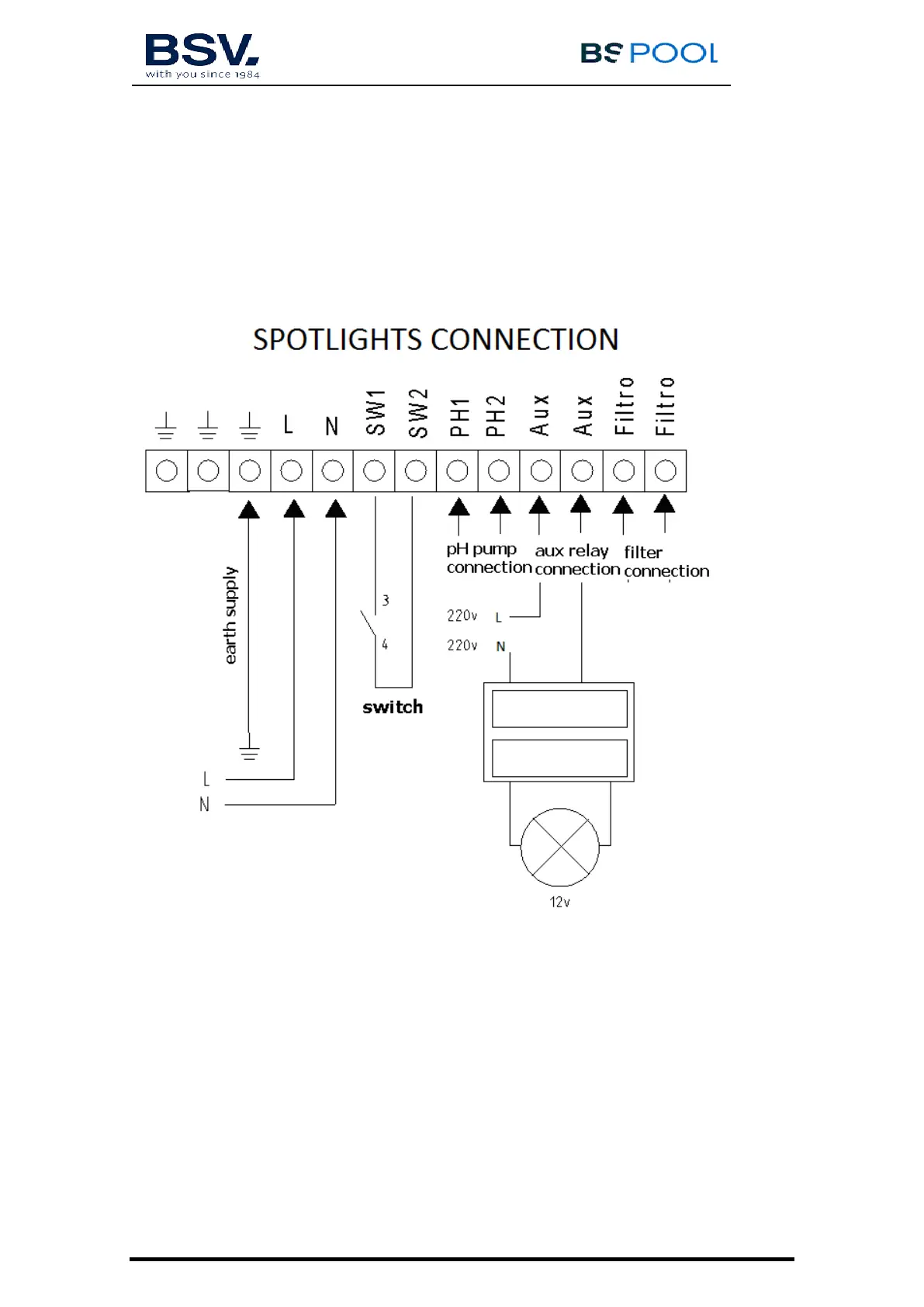

The following figure gives an example of use of the auxiliary relay incorporated
in the EVO series equipment. Lighting of your swimming pool can be
programmed to switch on and off, following this diagram:
Attention: Never exceed 16A when using the auxiliary relay. For higher
currents, supplement the circuit with a contactor.
Remember that the relay is potential free, and therefore the circuit should be
supplied externally.
