Manual EVO v.3 70 / 142
4.1.3- Water flow kit (OPTIONAL)
Your BSsalt chlorinator allows to choose between two different systems to
detect the lack of water flow, in order to protect the electrolysis cell:

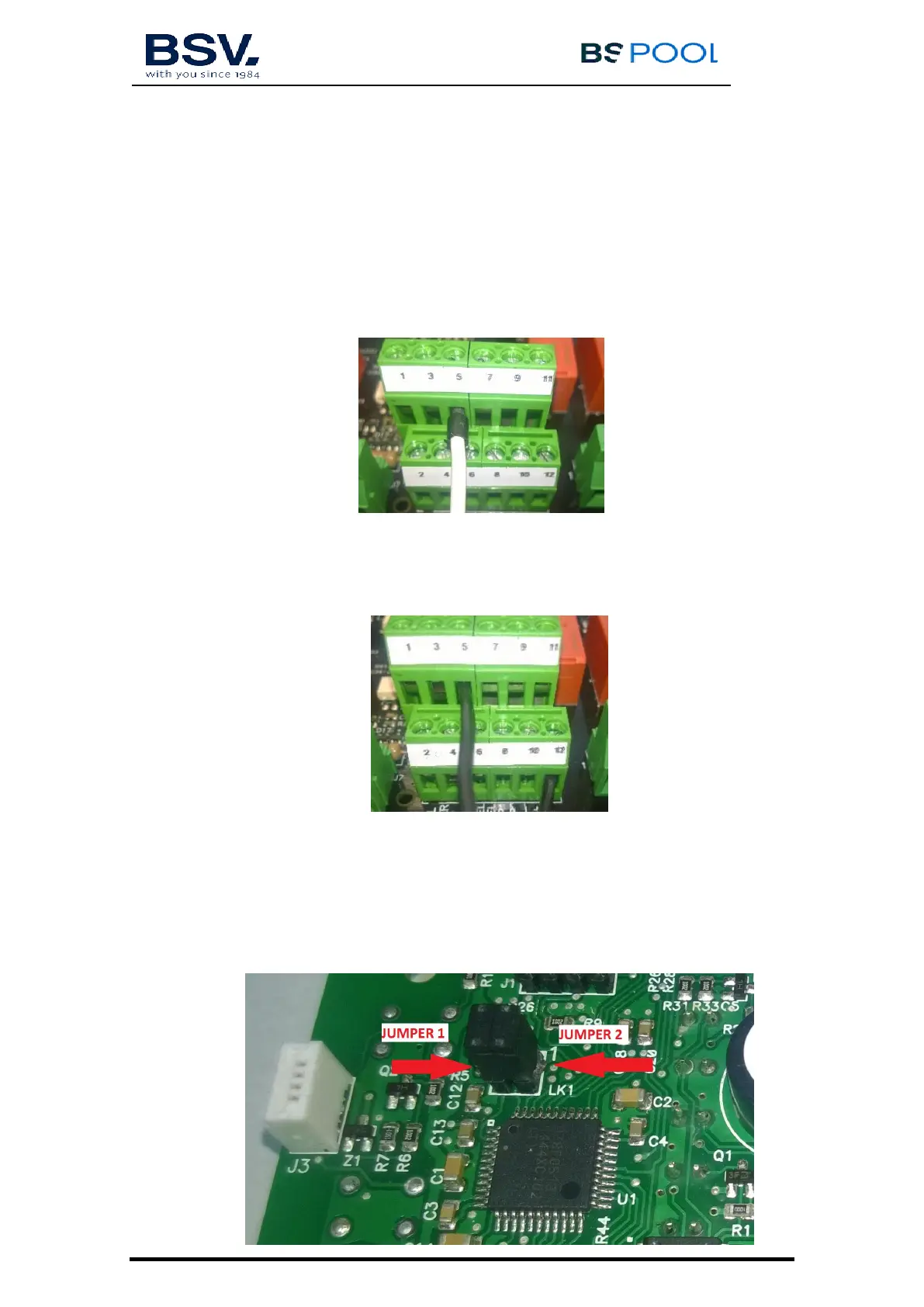

a) Water sensor (already embedded in the cell): Connect the white
cable from the cell to the input number 5, as shown on the following
picture:
b) Flow Switch: Connect the two cables from the switch to the inputs 5
and 12. If this system is used, just let the white cable from the cell
disconnected.
Depending on the desired method, the control board has to be configured as
follows:
a) Water sensor: Keep the “JUMPER1” bridge connected (as the unit
comes from the factory).
b) Flow switch: Remove the “JUMPER1” bridge.
