Monobloc Audio
Digital Entrance Panel
Installer manual
5
2 Description
2.1 Main functions
The BTicino door entry system entrance panel can manage up to 4000 handset addresses (from 0
to 3999) and the direct call to the switchboard
.
Through the recognition of previously saved numerical (SCS addresses) or alphanumerical codes
(logic addresses), it can be used to call handsets, and to give residents the possibility of opening
the door lock using a dedicated numerical code.
The device consists of a pushbutton panel with 16 backlit keys, and a digital display for the display
of the status.
2.1.1 Using the pushbutton panel
The pushbutton panel of the device may be used to perform the following operations:
- numeric or logic (alphanumeric) call;
- code programming: master, passepartout, and door lock codes;
- change the door lock code;
- direct switchboard call.

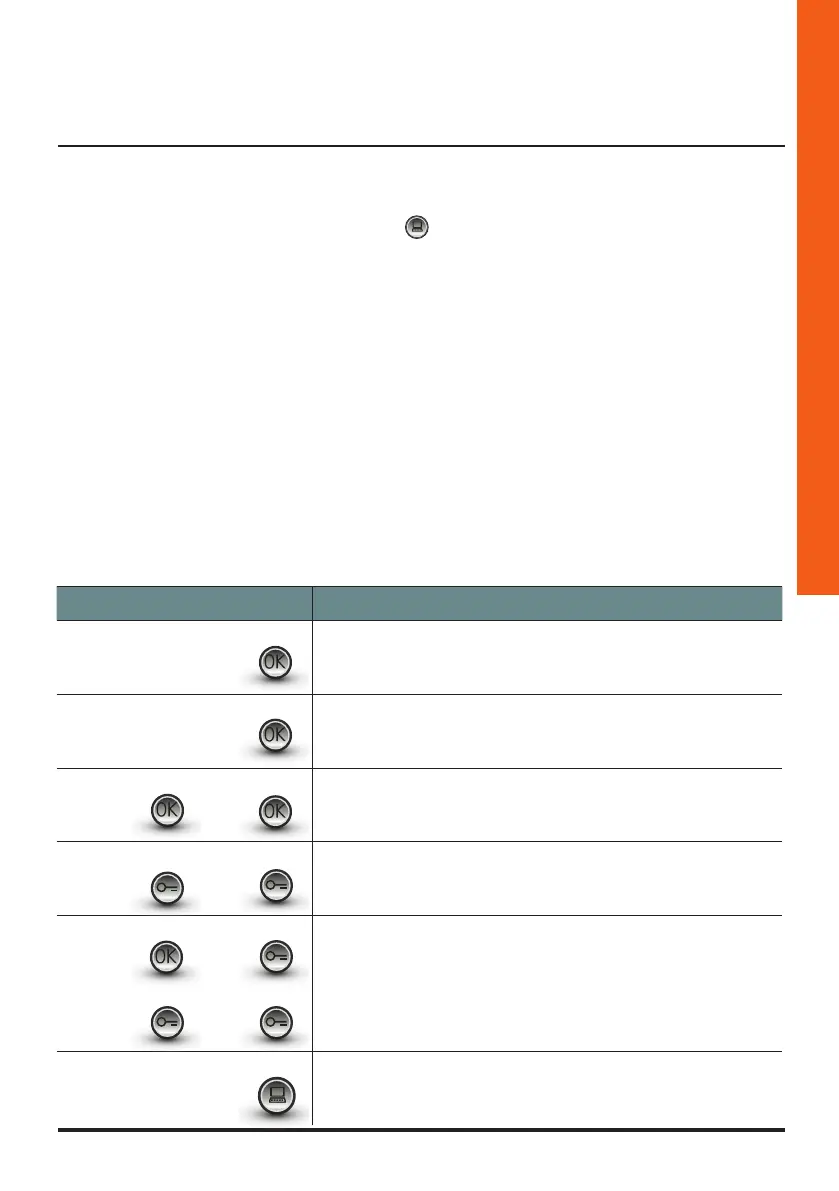

Below is a table showing the basic operations that can be performed using the keypad.
ENTER ACTION
1
Example of type of call with SCS address.
Call the apartment with SCS address “1”.
1A
Example of type of call with logic address.
Call the apartment with logic address “1A”.
0000
Entering of the master code.
It provides access to the device configuration.
1234
Entering of the passepartout or door lock code.
It can be used to open the door lock the entrance panel is associated to.
1234
5678 5678
Example for door lock code change from 1234 to 5678.
Direct call to the switchboard.
