Thermostat with display
Installer manual

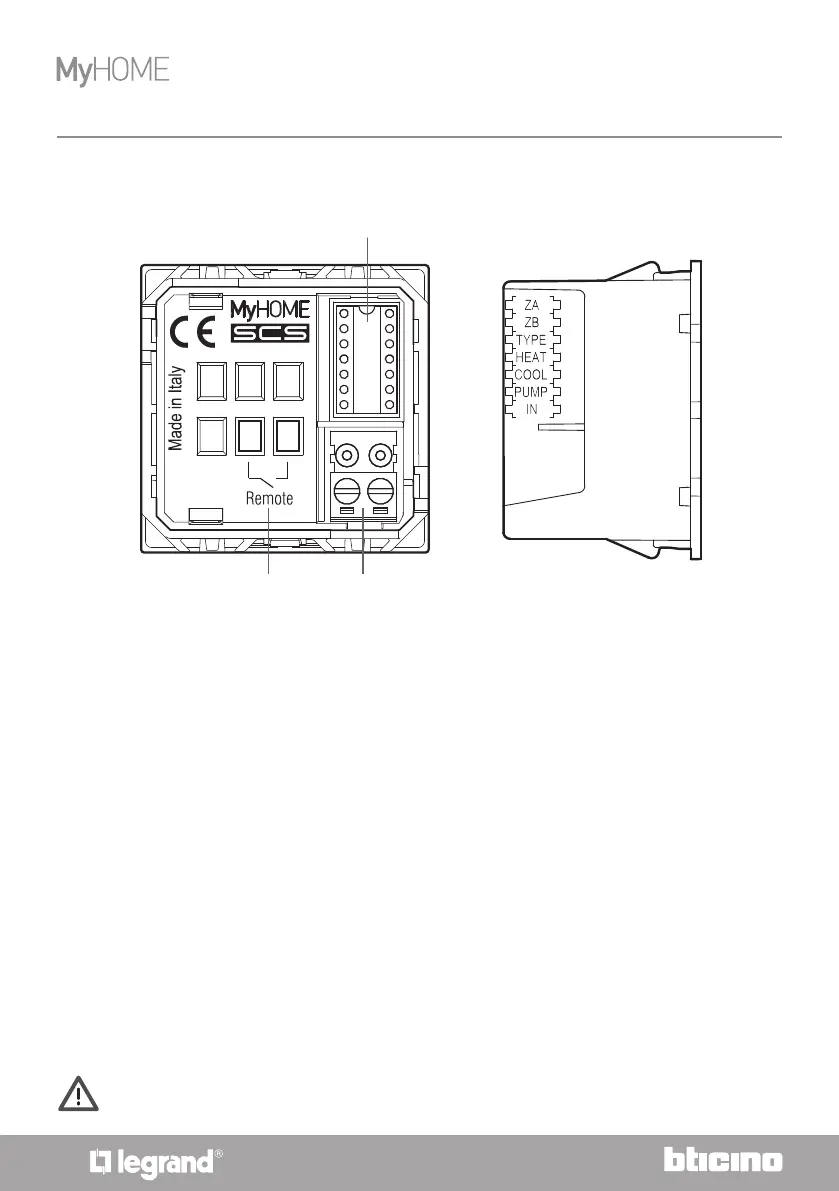

2.3 Rear and side view
1 - Configurator socket.
2 - Connection to the BUS.
3 - Local contact.
1
23
ZA / ZB = zone address,
TYPE = Thermostat operating mode (MyHOME probe, hotel thermostat, or
individual residential system);
HEAT = definition of the type of heating load (valves, fan-coil, etc.);
COOL = definition of the type of cooling load (valves, fan-coil, etc.);
PUMP = selection of the pumps to control;
IN = definition of the function performed by the contact connected to the
thermostat.
For the configuration and setup of the local contact see the technical sheet.
