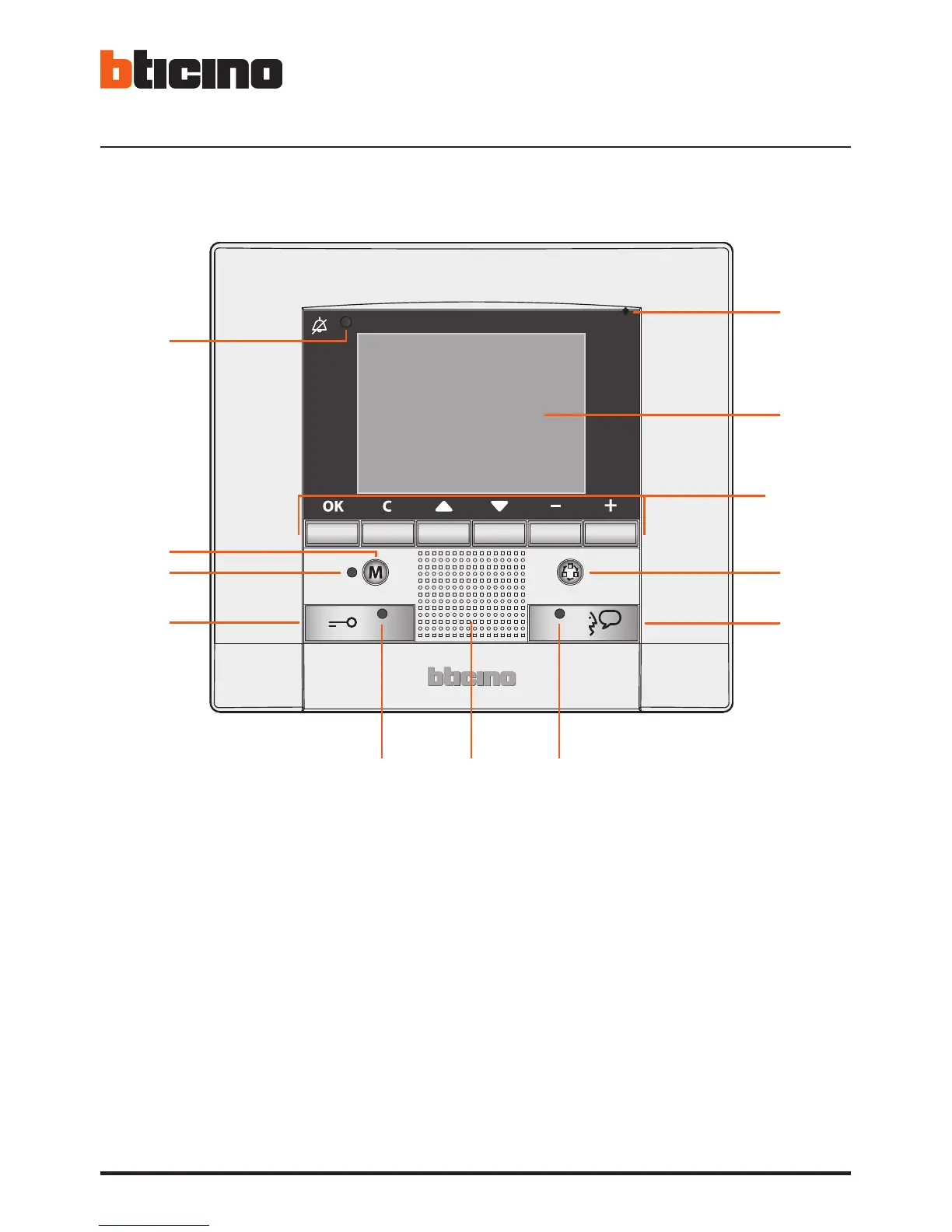

2.2 Front view
2 Description
1 -
Microphone.
2 -
Colour LCD display; displays the menus which guide the use and programming operation, shows
the pictures taken by the entrance panel or other cameras.
3 -
Navigation keypad; navigates inside the menus, confirms (OK key) or cancels (C key) the program-
ming operations.
4 -
Switch ON entrance panel and cycling key.
5 -
Connection key; activates/deactivates the sound connection.
6 -
Connection LED.
7 -
Loudspeaker.
8 -
Door lock LED.
9 -
Door lock key; activates the electric door lock of the associated or connected entrance panel.
10 -
Answering machine status notification LED.
11 -
Pushbutton for enabling/disabling the answering machine function.
12 -
Call bell exclusion LED.
2
1
3
5
68 7
9
10
11
12
4
