Bticino Polyx Memory Display - Rear View

30

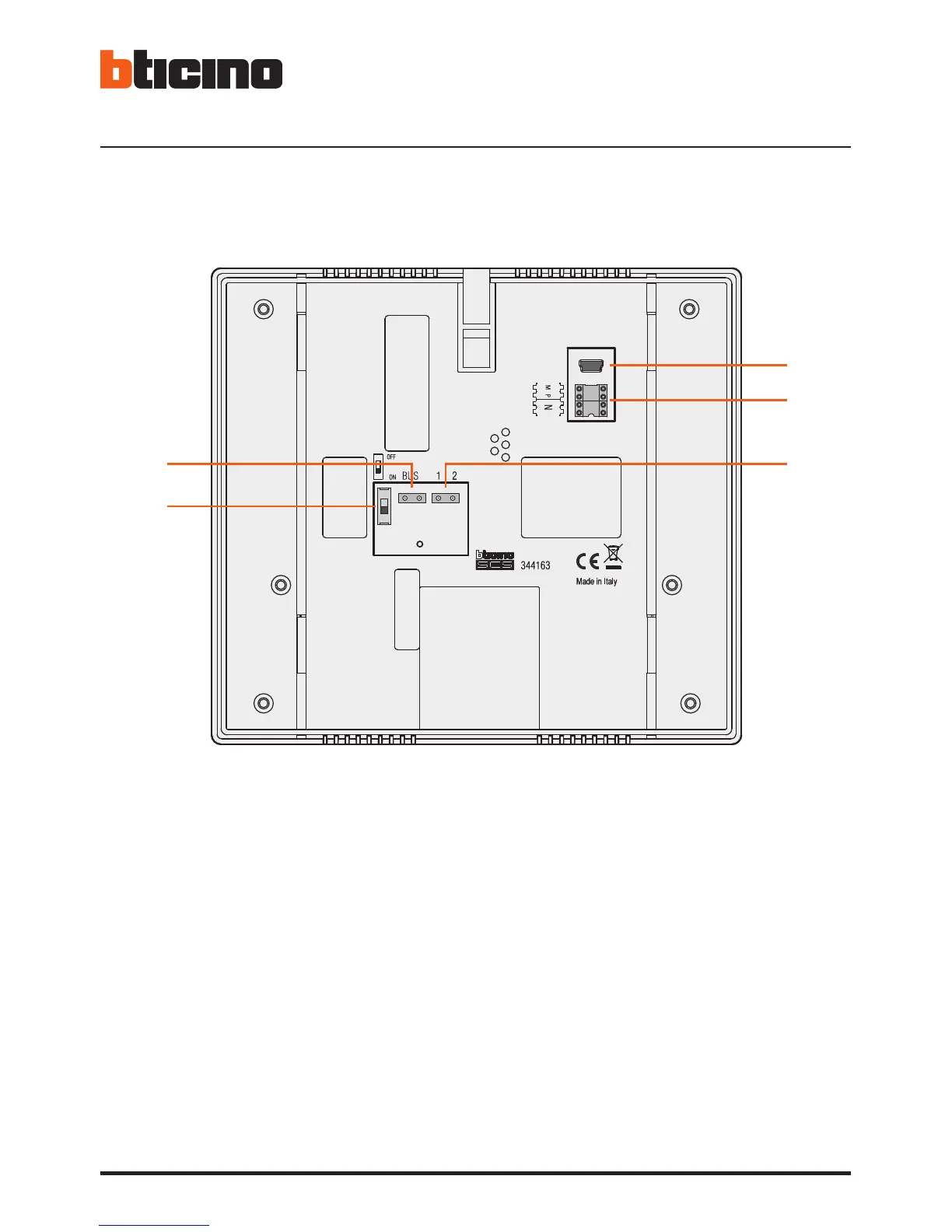

2.6 Rear view
2 Description
1 - Mini-USB connector for connection to the PC
2 - Configurator socket
3 - Connector for extra power supply
4 - Stretch end ON/OFF microswitch
5 - Connection to the BTicino 2-wire digital system BUS
