• Connect the outlet temperature sensor o to
the plug in the housing.
• Insert the outlet temperature sensor into the
connection piece f and screw it in. A metallic
ring and O-ring is inserted to seal the probe.
• Close all connections tightly.

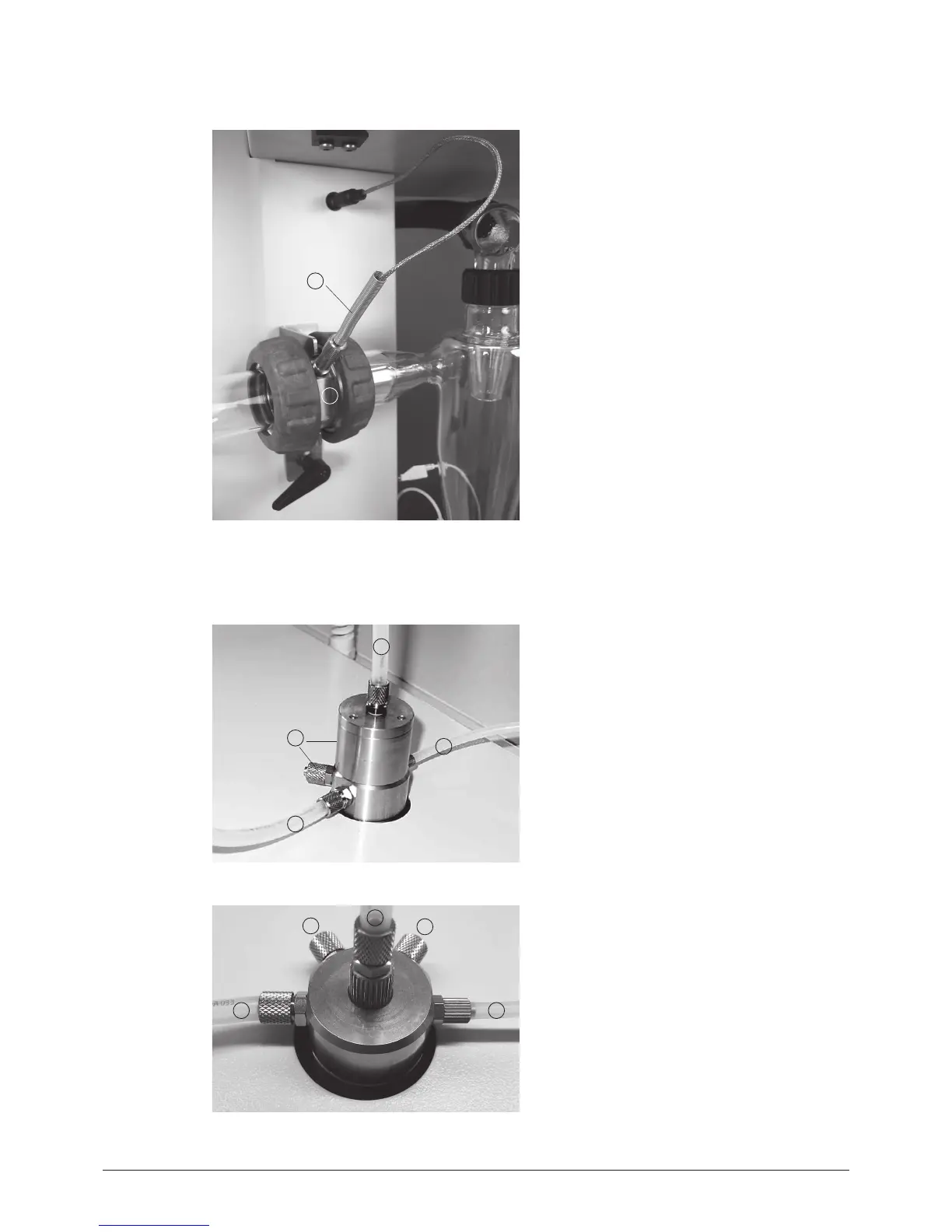

Fig. 5.2: Installing the glass assembly
5.5 Installing the spraying nozzle
4
1
3
2
• Insert the nozzle into the heater element at
the top of the instrument.
• The two fluid spraying nozzle has a connec-
tion for the feeding tube a, a connection for
the pressurized air or nitrogen b and two
connections c for an optional cooling/heating
with an external thermostat. The top connec-
tion d is for the implemented pneumatic
nozzle cleaning: a needle pushes through the
nozzle and prevents clogging.
Fig. 5.3: Installing the spraying nozzle
12
3
5
3
The three fluid nozzle has a second feed supply
e instead of the nozzle cleaning.
The three fluid nozzle has two connections for
two feeding tubes. An external peristaltic pump
has to be mounted for the second feed supply.
Fig. 5.4: Installing the spraying nozzle
