5 Putting into operation

B-290 Operation Manual, Version M

5.12 Dehumidiﬁer B-296 and Inert Loop B-295 combination

a Mini Spray Dryer B-290 outlet tube

b Dehumidiﬁer B-296 outlet tube

c Inert Loop B-295 outlet tube

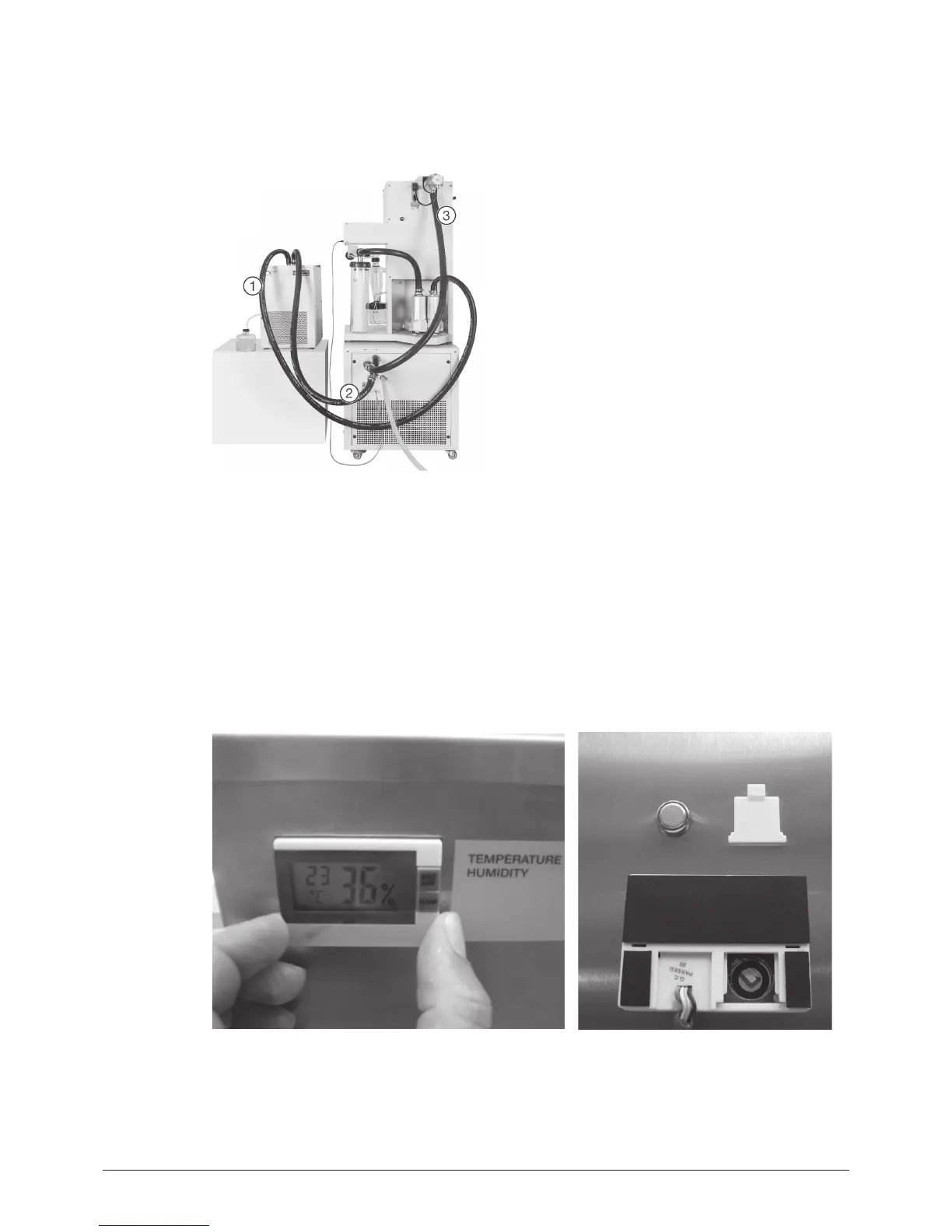

Fig. 5.21: Tube connections B-290, B-296 and B-295

• Connect the Mini Spray Dryer B-290 outlet tube a with the inlet of the Dehumidiﬁer B-296

• Connect the Dehumidiﬁer B-296 outlet tube b to the Inert Loop B-295 inlet.

• Connect the outlet c of the Inert Loop B-295 to the Mini Spray Dryer B-290.

5.13 Installing the Dehumidiﬁer B-296

NOTE

Disconnect the display from the front side and insert a LR 44 battery in the display.

Fig. 5.22: Installation of the display
