5.6 Installing the filters
Notice
Risk of instrument damage by internal overpressure.
• External supply pressure must meet the system specifications
• Exchange clogged or defective filters immediately
• Dispose of clogged or defective filters immediately
5.6.1 Inlet filter installation
Use
Pre-filtering of environmental air to keep most impurities and particles away from the spray drying
process.

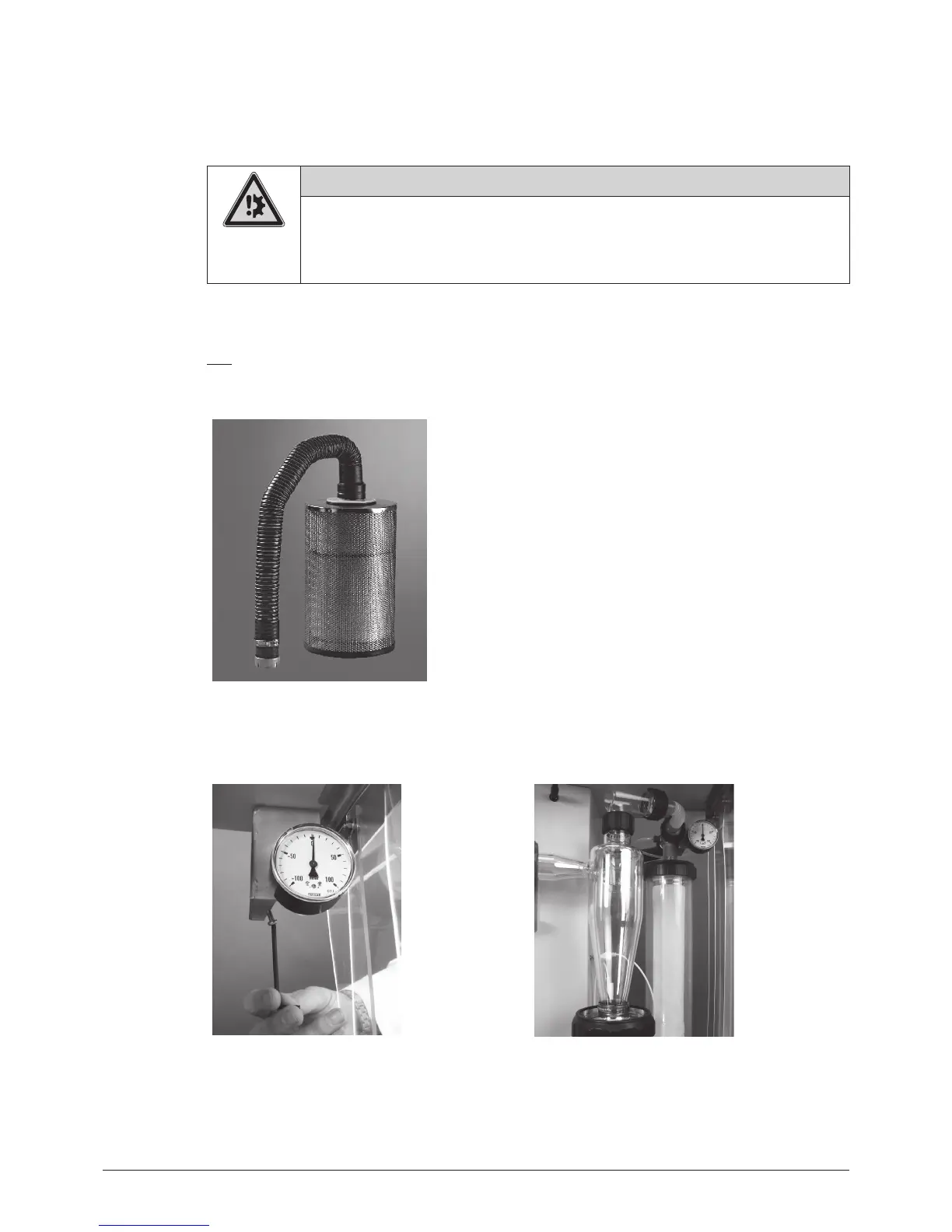

Fig. 5.5: Installing the inlet filter
To install the inlet filter directly connect it to the air inlet of the heater.
5.6.2 Outlet filter installation
Fig. 5.6: Installing the outlet filter
• Screw the support angle to the bottom side of the panel.
• Mount the filter directly.
• Install the connecting tubing between cyclone and filter with an SVL 42.
