5 Putting into operation
18 Pump Combinations Operation Manual, Version E
5.3 Installation
In order to make things clearer, the following descriptions do not contain the complete names of the
modular pump systems, but rather the general name.
Pump Controller C-610: Pump controller
Pump Manager C-615: Pump manager
Pump Module C-601/605: Pump module
Mixer (pressure sensor with integrated mixing chamber): Pressure sensor
Control Unit C-620: Control unit
5.3.1 Installating the standard accessories
Suction tubing 4 mm x 2.5 mm, length 1.5 m
ATTENTION
The pump module may never be operated without the suction filter, since otherwise impurities may
enter the pump system.
1
2
3
Cut the suction tubing a to the desired length and
fasten it to the suction filter. Place the fitting b and
the ferrule c on the other end of the suction tubing
a. Attach the fitting b and the ferrule c.
Press the suction tubing a and the ferrule c against
a table surface to firmly seal the tubing end with
the ferrule.

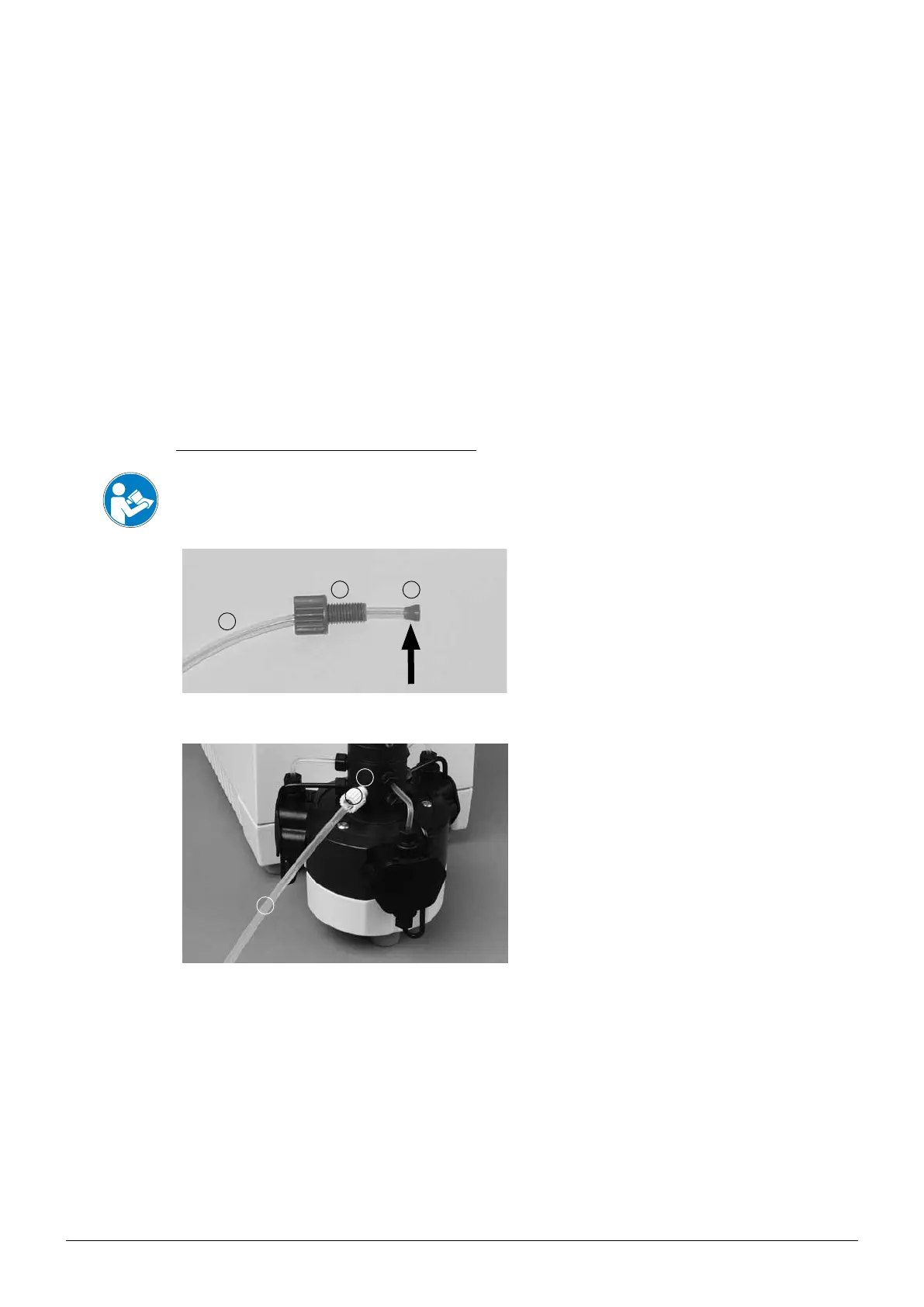

Fig. 5.1: Installing fitting and ferrule
2
1
4
Remove the protective foil from the input and output
of the pump head. Screw the white fitting b into the
lower input d of the separator head. Make sure that
all fittings are hand-tight. The end of the tubing a
with the solvent filter goes into the solvent vessel.
Fig. 5.2: Pump head with connected suction tubing
