5 Putting into operation
25 Pump Combinations Operation Manual, Version E
Pressure tubing 1/8” x 1/16”:
1
2
3
Cut the pressure tubing to the desired length. Attach
the fitting and the ferrules to one end of the tubing
as described.
Screw the fitting into the upper output of the separa-
tor head. Make sure that all fittings are hand-tight.
Between the connections a and b runs the con-
nection tubing between the lower head and the
mixer.
c Outlet mixer mixed solvent

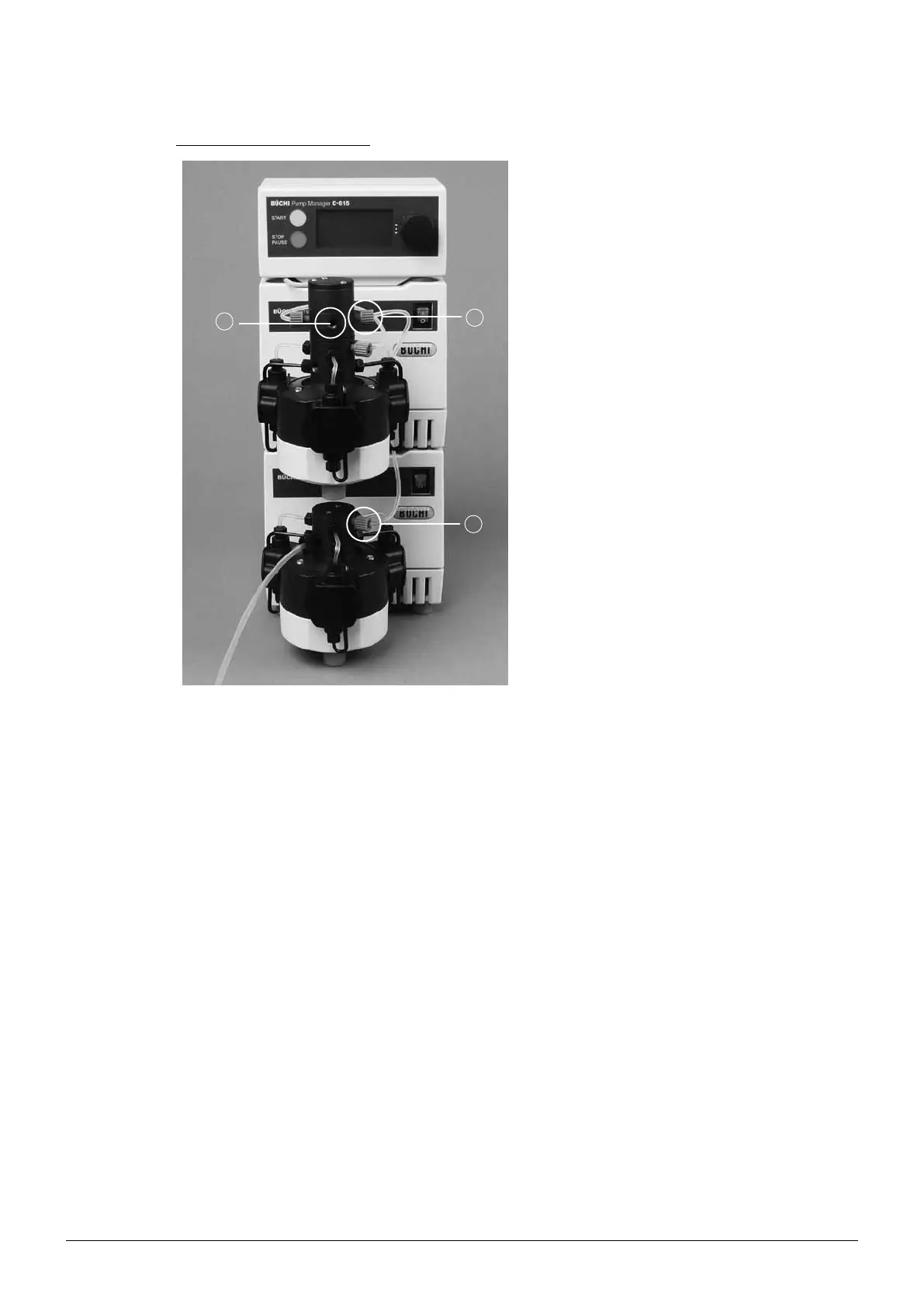

Fig. 5.16: Pump head with connected pressure tubing
5.3.5 Pump system 4: Control Unit C-620 and 2 - 4 Pump Modules C-601 or C-605
For detailed information on this system see the Installation Guide of SepacoreControl.
