Tank Assembly
Logalux SM300/1 - SM400/1 - Technical specifications are subject to change without prior notice.
14
Installation of aquastat
V Remove cover from aquastat [2] ). Loosen hex head
screw from cover.
V Secure mounting bracket [3] with 2 sheet metal
screws [1] to tank jacket.

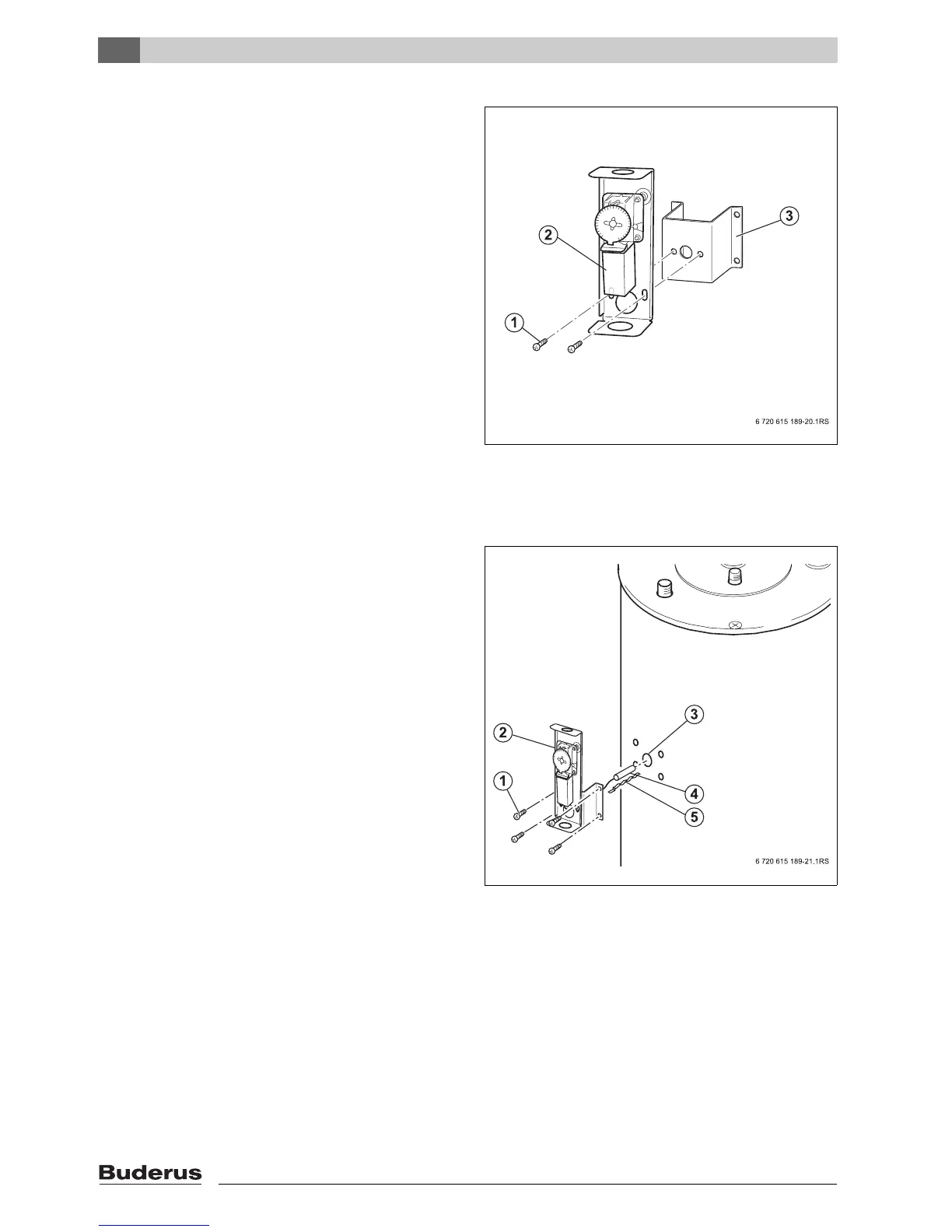

Fig. 11 Installation of aquastat bracket
1 Sheet metal screws
2 Aquastat
3 Mounting bracket
V Slide capillary and tension spring together into the dry
well.
V Secure aquastat [2] with 2 screws [1] to the mounting
bracket.
V Install aquastat cover in its place.
Fig. 12 Installation of aquastat
1 Sheet metal screws
2 Aquastat
3 Dry well
4 Capillary
5 Tension spring
