4
Tank Assembly
Logalux SM300/1 - SM400/1 - Technical specifications are subject to change without prior notice.
19
4.4 Connections for Solar station KS
V Connect solar pump station KS [4]to the lower coil
connections of the solar tanks SM300/SM400 to the
connections VS1 (supply solar) and RS1 (return solar).
V Connect the alternative back-up heat source to the
upper tank coil connections at the VS2 (supply boiler)
and RS2 (return boiler).
V Use piping connections made from copper, cast iron
pipe or non-galvanized steel material for connections
between solar pump station KS [4]and solar hot water
heater [5].

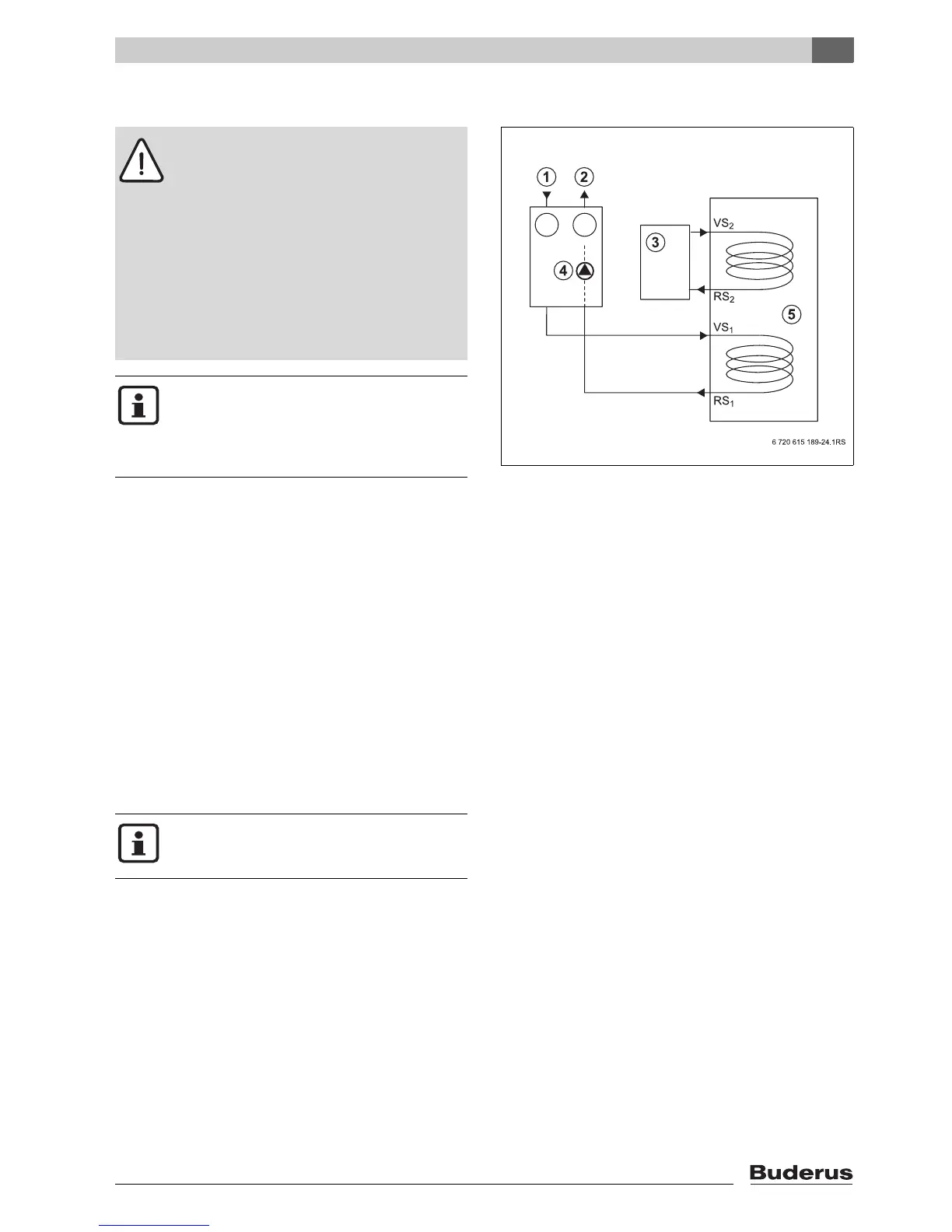

Fig. 17 Connections for solar pump station KS
1 Supply piping to solar panels
2 Return piping from solar panels
3 Boiler or alternate heat source for back-up heating of
DHW
4 Solar pump station KS
5 Solar hot water heater
Grounding of water piping
V Place a grounding strap on both the supply and return
piping to the tank. (Suitable location).
V Connect both grounding lines (AWG9) with a suitably
heavy line to the main ground of the electrical system.
Piping will receive an automatic air vent during
roof installation (accessory)
V Route the piping with a steady slope down from the air
vent. Install an air vent where necessary at every air
high point in the piping system. (Temperature range up
to 302 °F/ 150 °C).
Warning: Potential system damage due to
very high temperatures and pressures!
V Use pressure and temperature resistant
piping connections.
V Use not any galvanized piping, connec-
tions and graphite or plastic gasket mate-
rials or PEX or plastic piping or
connections of any such type.
V When soldering piping connections, make
sure to use high temperature rated lead
free solder.
(Melt temperature > 455 °F/ 235 °C).
For proper, trouble free and efficient opera-
tion of the entire system make sure to proper-
ly vent the system. Directions for proper
system venting can be found in the Installa-
tion Instructions of the KS solar station.
Make sure to have all piping connections
done by a licensed contractor.
