Buderus Logalux SM400/1 User Manual

6
Maintenance
Logalux SM300/1 - SM400/1 - Technical specifications are subject to change without prior notice.
26
Replacing of bottom magnesium anode rod and
SM400/1 top anode rod
V Disassemble clean out cover (Æ Fig. 19, page 23) if
not done already.
V Remove M8 nut [8] to release the ground wire eyelet
[10].
V Remove M8 nut [7].
V Remove the clean out cover [3] from the magnesium
anode [1].
V Replace the magnesium anode.
V Fit the new magnesium anode together with all small
parts supplied with it, as shown in Fig. 22.

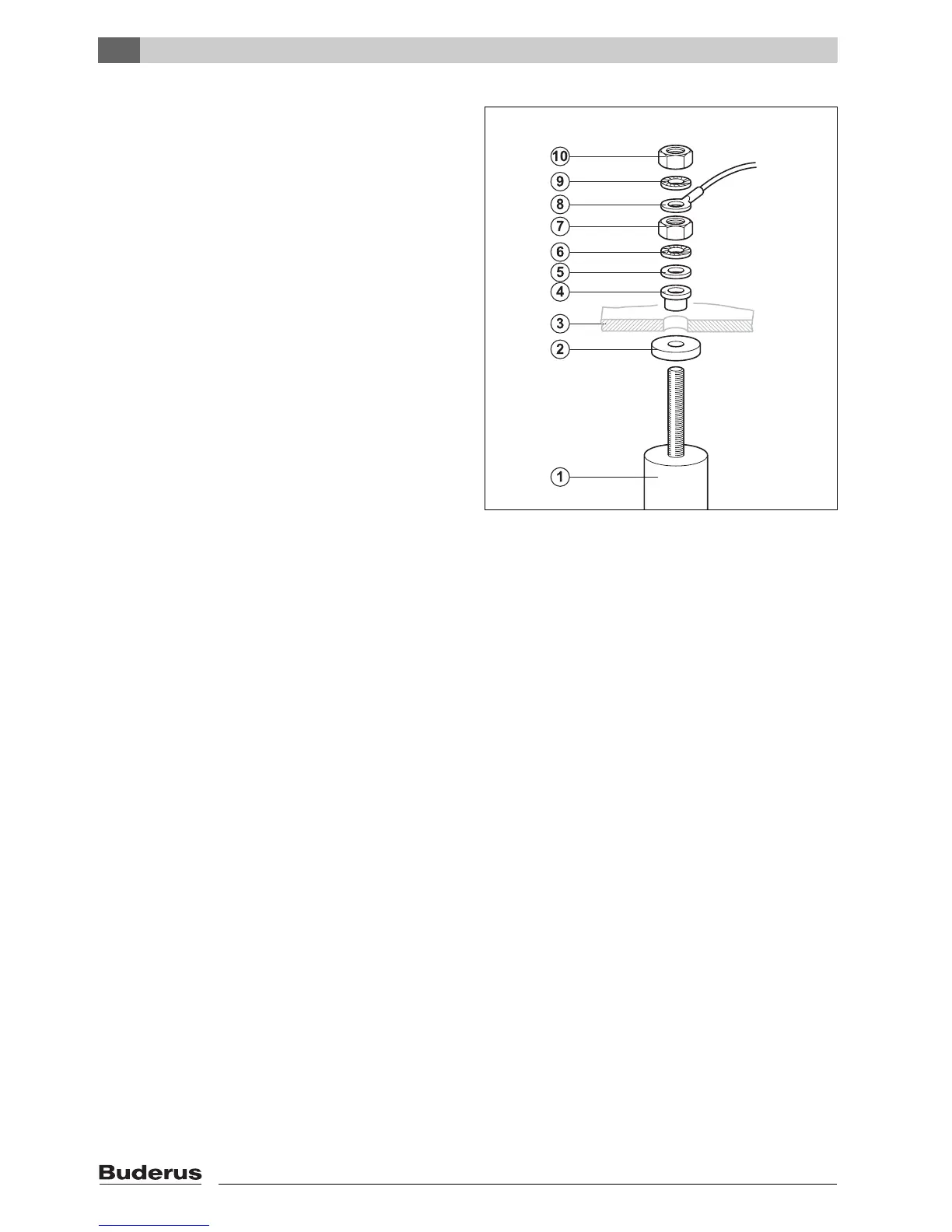

Fig. 22 Replacement magnesium anode rod.
1 Magnesium anode
2 Gasket
3 Clean out cover
4 Insulating sleeve
5 Flat washer
6 Lock washer
7 Hex head nut M8
8 Ground wire eyelet
9 Lock washer
10 M8 nut
