Details about the MCM10 module
MCM10
4
2 Details about the MCM10 module
2.1 Declaration of conformity
2.2 Information regarding the
documentation
We reserve the right to make technical modifications!
2.3 Proper use
The MCM10 modules are designed to control cascade
systems. A cascade system is a heating system where
several smaller heating appliances are connected in
parallel to achieve a higher output (Æ Fig. 12, page 19).
The MCM10 modules are only suitable for controlling
heating appliances with Logamatic EMS BUS.
For floor-standing heaters, the MCM10 module is only
suitable for the activation of gas heaters with modulating
burners without operating conditions.
2.4 Scope of delivery

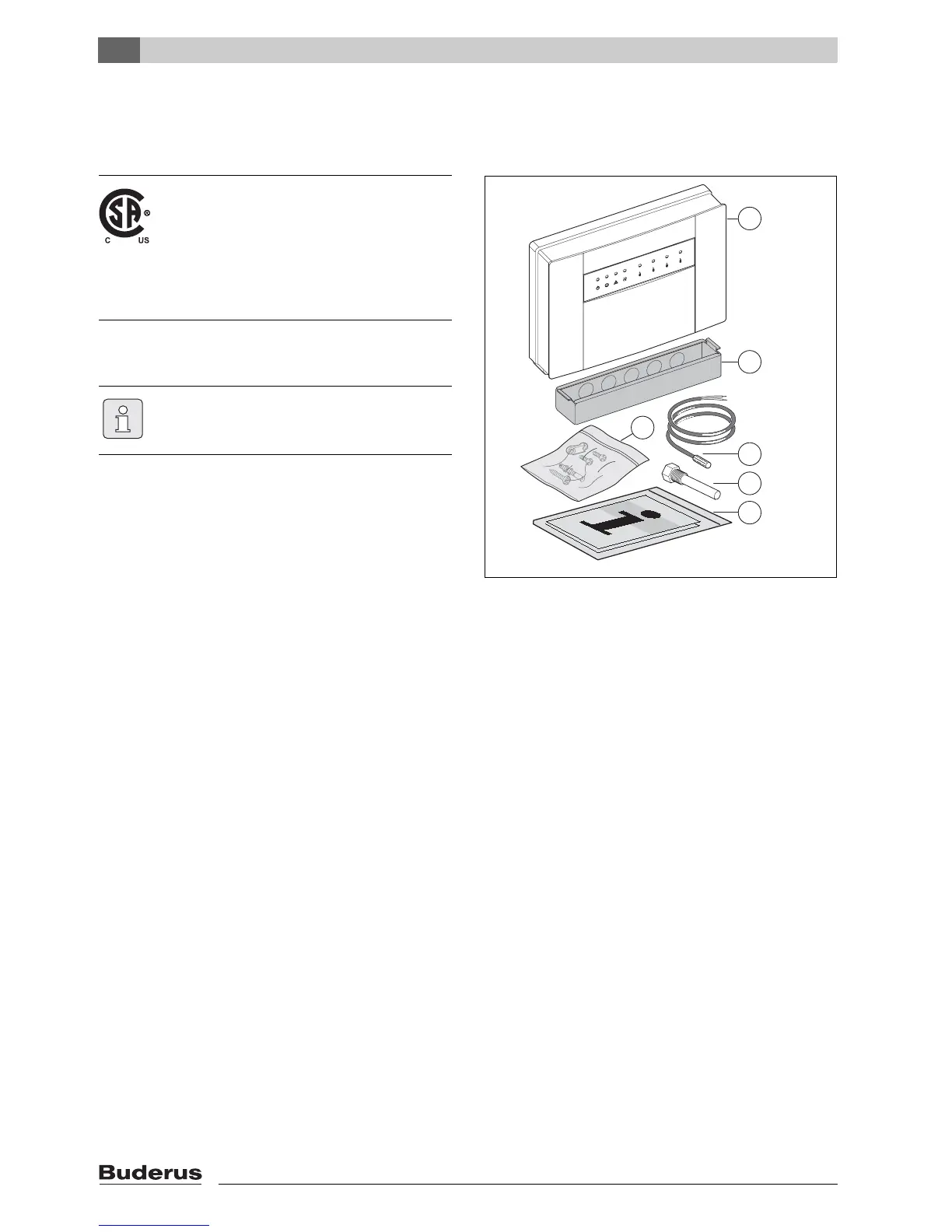

Fig. 1 Scope of delivery
1 MCM10
2 Duct connection box
3 Sensor well
4 Supply temperature sensor FV
5 Package with:
- 3 screws and 3 wall-plugs
- 4 strain relief clips and 8 screws
6 Installation and operating instructions
B Check that the delivery is complete.
2.5 Accessories
Here is a list with typical accessories. In order to get a
complete overview of all available accessories, please
contact the manufacturer.
• Outdoor temperature sensor FA for connection to
terminal F (only for system variant 1).
• RC35: Outdoor reset heating system controls with
plaintext display for controlling a heating system with
mixed or unmixed heating zones.
• WM10: Low loss header module for EMS.
• MM10: Mixer module for EMS.
• AM10: Outdoor reset controller with thermostat
connection.
The design and operation of this product
conform to the U.S. and Canadian Directives.
Its conformity is demonstrated by the CSA
designation.
The Declaration of conformity can be
claimed. See the address at the back of this
manual.
Hand all enclosed documents over to the user.
6 720 616 690-02.1TD
1
2
4
3
6
5
