42
Equipment Doors
M Series Door Removal

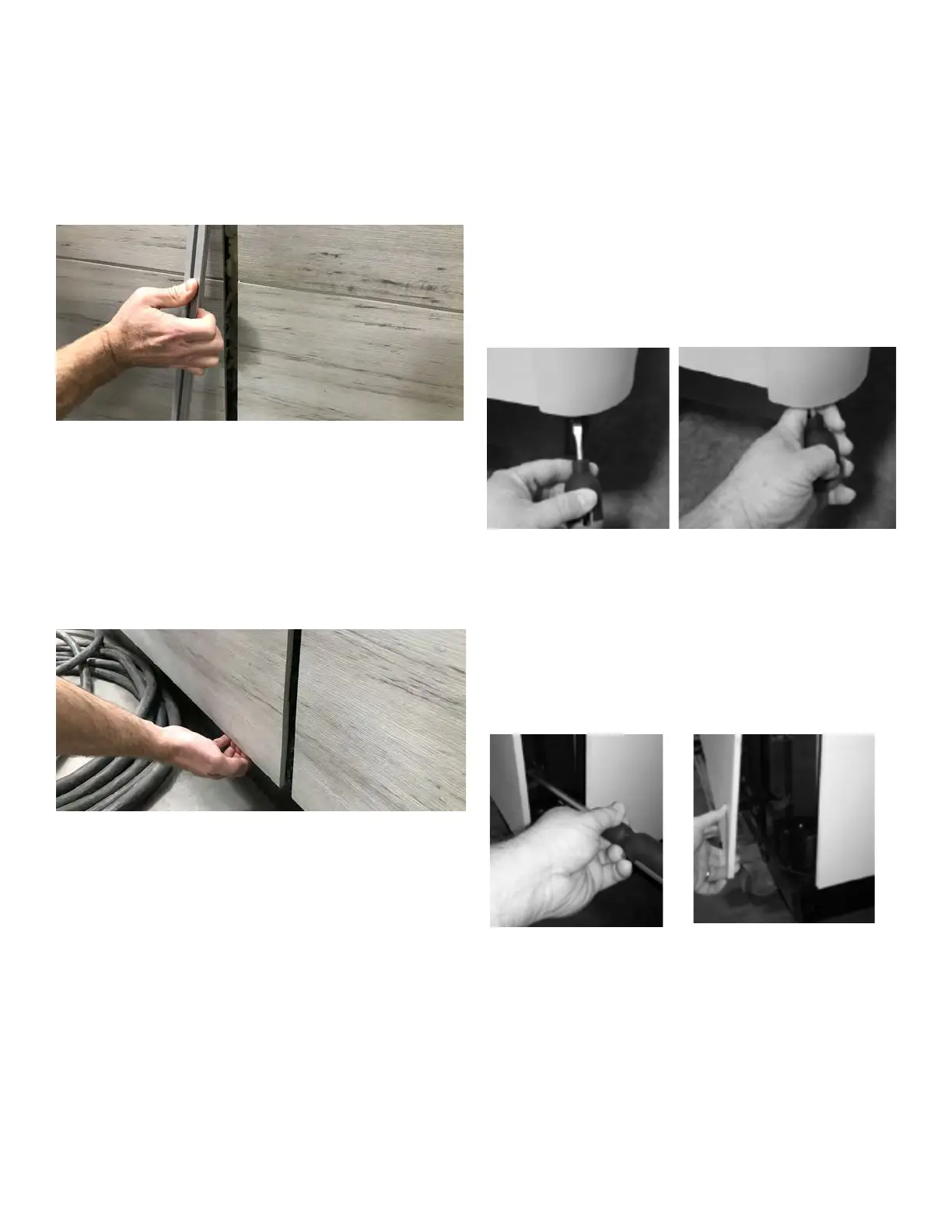

Step 1: Remove trim strips from trim channels by pulling
carefully and rmly, working from the bottom of the trim strip to
the top. Place trim strips aside.
Step 2: Remove door - Carefully pull bottom of door out
toward you. Carefully grab the bottom corner of the door and
pull it out enough that you can slip your other hand in behind
the side of the door about 4-5 inches (10-13 cm) up from the
bottom. From there you will pull the door rmly away from the
spa until the snap on the door pulls out of the snap feature in
the rib. Continue to pull the door away until the second snap on
the other side pulls out. e door can then be dropped out of the
groove on top and removed from the spa.
Step 3: Electrical Disconnect – be sure to disconnect any
lighting or any other electrical wiring that is mounted onto the
door before completely removing it.
Step 4: When removed, lean door against spa.
M Series Door Installation
Step 1: Electrical –Reconnect any lighting or electrical devices
on the door before installing.
Step 2: Door – Slip the upper lip of the door into the top
behind the lip of the spa. Lower the door while gently pushing
on it until you feel the snaps line up with the snap features in the
ribs. Starting from one side, force the rst snap into place and
then force the other side until the door is secured.
Step 3: Replace trim strips by snapping each carefully into the
trim channel.
STIL Door Removal
STIL spas are designed so that there are no visible fasteners from
the exterior. Snap features in the corners and the cabinet panels
allow for simple equipment area access, however, it is important
to follow these recommended door removal instructions to avoid
damaging the door or corner panels.
Step 1: Remove Corners – It is important to remove the front
two corners overlapping the door before attempting to remove
the door itself. is is done by placing a short athead screwdriver
below the corner and slipping it up partway behind the corner
and using it as a lever to pry out the bottom half of the corner
outward.Once this is done, grab the corner by the bottom and
pull it straight out allowing the top snap to come free. Pull
corner down and out of the groove on the top.
Step 2: Remove Door – Once both front corners are removed,
look on each side of the front door to see the snap feature built
into the cabinet. To remove the door, start by placing a longer
athead screwdriver or short pry bar into the center of the snap
feature and use it as a lever to pop the door out of the rst snap.
Grab the base of the door and carefully begin pulling it out such
that the rest of the snaps come free one by one across the length
of the door. e door can then be dropped out of the groove on
top and removed from the spa.
Step 3: Electrical Disconnect – be sure to disconnect any
lighting or any other electrical wiring that is mounted onto the
door before completely removing it.
STIL Door Installation
Step 1: Electrical –Reconnect any lighting or electrical devices
on the door before installing.
Step 2: Door – Slip the upper lip of the door into the top
groove of the extrusion. Lower the door while gently
pushing on it until you feel the snaps line up with the snap
features in the ribs. Starting from one side, force the rst
To Next Page
