OUTLOOK INSTALLATION
Introduction Harness Description Operating Instructions Pyrometer Probe Calibration Troubleshooting

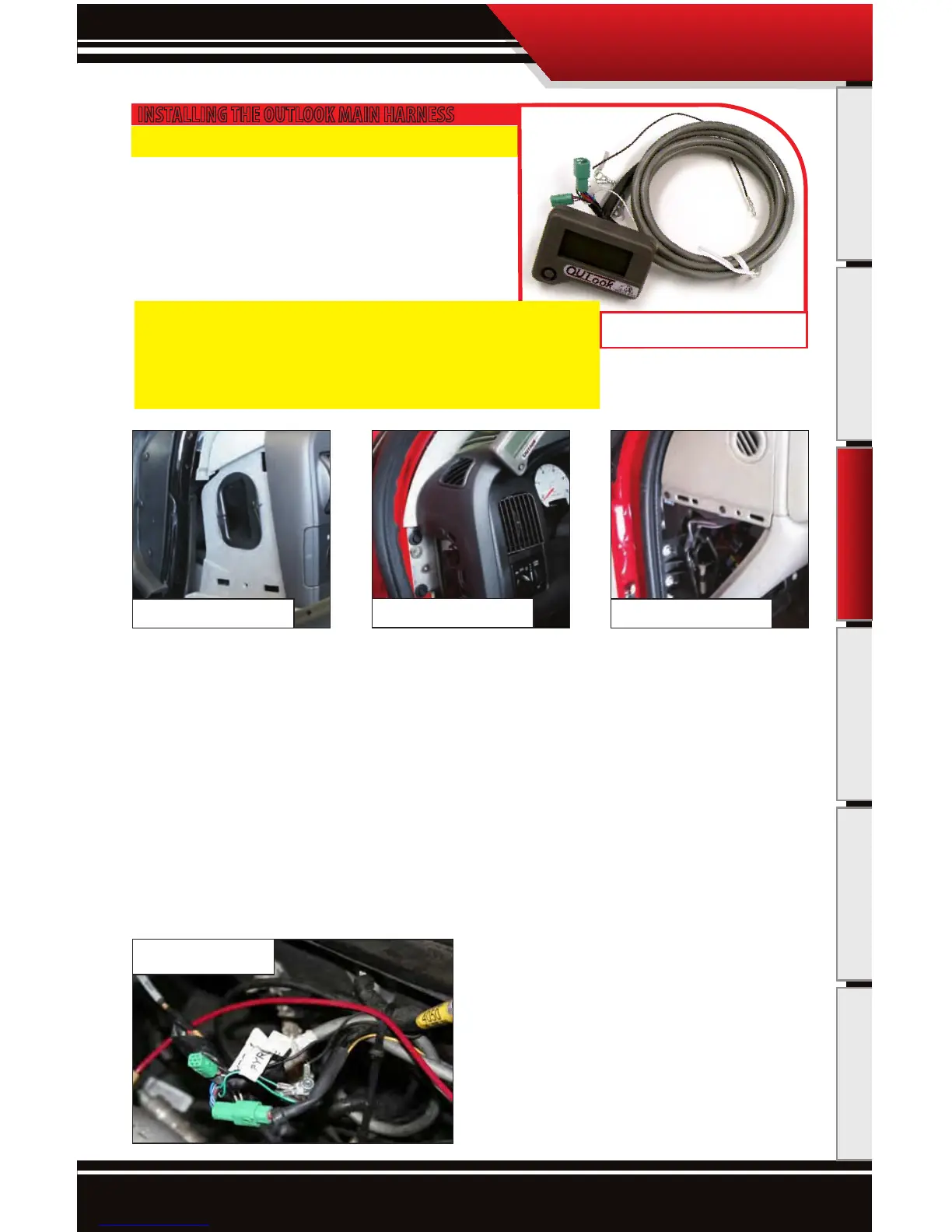

INSTALLING THE OUTLOOK MAIN HARNESS
In this step you will run the OutLook Main harness,
page 2 #1, plugs and wiring through the fire wall and
connect the OutLook Main harness to the OBD II Har-
ness, page 2 #6, and the Sub-Harness, page 2 #2a and
#2b (if included for your installation).
1. For a clean install, first peel-back the weather stripping next to the dash on the driver’s side door.
2. Set the OutLook Monitor up on the driver’s side dash and run the OutLook wires down behind the dash to conceal
the wiring. Remove the side dash panel to assist in running the wiring. Reinstall the side dash panel and the weather
stripping.
3. Run the end of the OutLook wiring harness through the fire wall into the engine bay. Use the same hole as used
with the OBD II Harness. Pull all of the slack from the cab through the fire wall.
4. On the inside of the engine compartment, connect the green plug with the female pins and male shell on the end
of the OBD II Harness to the green plug male pins and female shell on the OutLook Main harness.
5. If you are installing on a ‘03-’05 Dodge Cummins or a ‘01-’05 GM Duramax, connect the green Sub-Harness plug,
male pins and female shell, to the green OutLook Main harness plug, female pins and male shell.
6. Go inside the cab of the vehicle to test the install before
going any further. Turn the ignition to the run position: at
this point the OutLook should light up and display a ve-
hicle selection screen. If the screen does not light up please
refer to the Trouble Shooting section on page 25.
7. Secure all wiring to ensure that wiring is safe from
extreme heat and moving parts using zip ties provided. Be
sure save some zip ties for the Pyrometer Probe or Probes.
IMPORTANT: This step is performed on all vehicles.
Ford Install
Dodge Install
GM Install
Harness Connections
OutLook Installation
IMPORTANT: Dodge Owners be sure to cover the positive
battery terminal with electrical tape to prevent accidentally
shorting out the OutLook during installation.
IMPORTANT: See the OutLook mounting options on page 12.
OutLook Main Harness (#1)
