OUTLOOK MONITOR MOUNTING INSTRUCTIONS

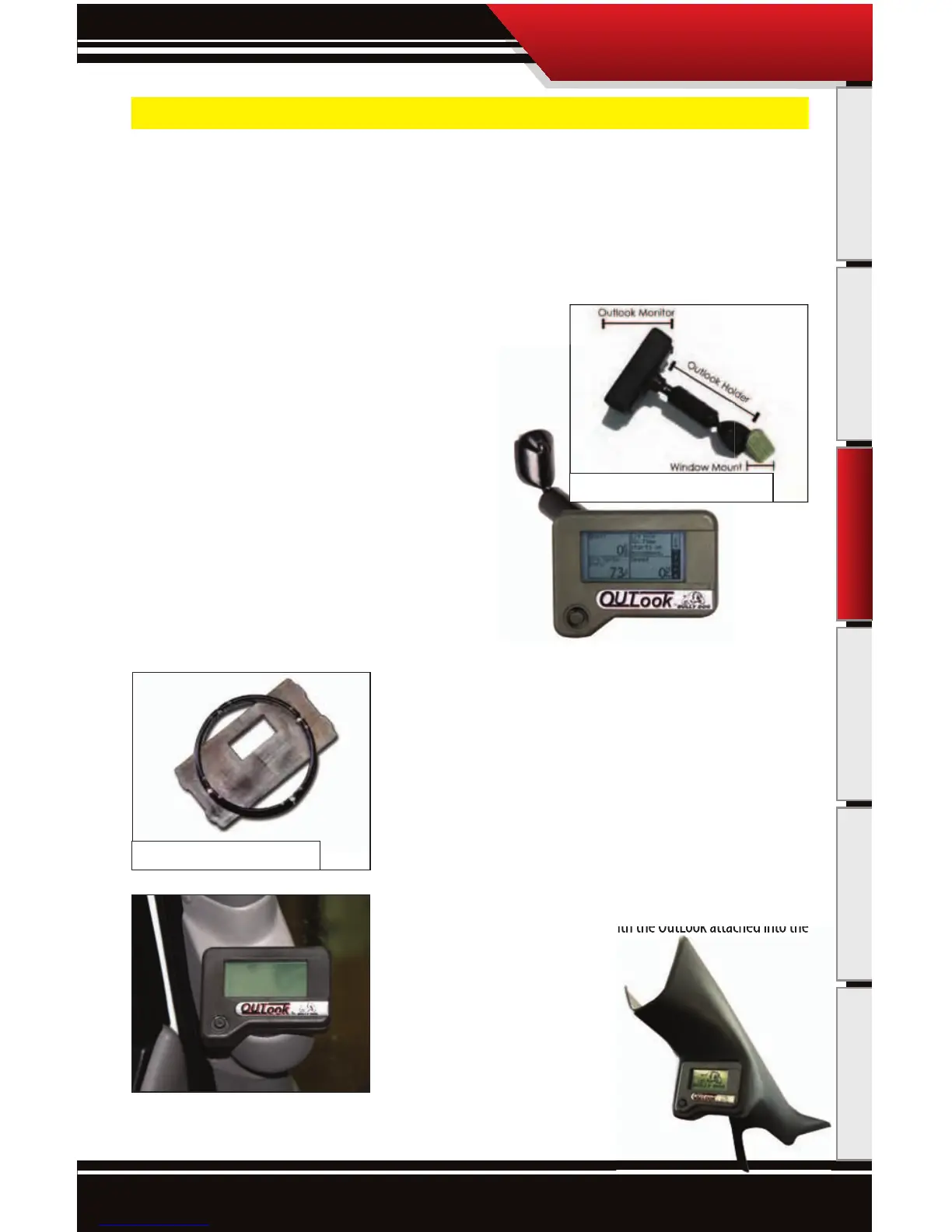

Bully Dog offers three different options for mounting the OutLook monitor, each lo-
cation option places the OutLook monitor in an easily accessed viewing area for the
driver.
WINDSHIELD MOUNT:
1. Locate the windshield mount included with the OutLook monitor.
This windshield mount does not come with mounting glue
that will stick metal to glass. This glue can be found at any
hardware store.
2. Place glue onto the window mount piece with the OutLook
monitor Holder detached from the windshield mount piece.
3. Hold the windshield mount piece on the windshield just to
the left of the steering wheel for one minute.
4. Let the glue set up as instructed by glue packaging and then
slide the OutLook monitor Holder onto the window mount
with the OutLook monitor attached.
PILLAR POD MOUNTING:
1. Locate the OutLook pod mount circle that is included with the OutLook
monitor and attach the OutLook monitor to the pod mount circle by run-
ning the OutLook Main harness through the rectangular hole in the circle
and snapping the back onto the OutLook.
2. Follow the instructions for installing the single pillar pod mount that
are included in the pillar mount package.
3. Run the OutLook Main harness wires down through the hole in the
pillar mount system and connect the OutLook to the other harnesses.
4. Finally, slide the pod mount circle with the OutLook attached into the
pillar mount hole.
OutLook Pillar Pod
This custom pillar pod is a
perfect fit for your OutLook and
can be painted to match your truck’s
interior. Instructions for this mount
come with the pod.
OUTLOOK INSTALLATION
OutLook Installation
OutLook Pillar Pod Mount (#5)
IMPORTANT: This step is performed on all vehicles.
OutLook Windshield Mount (#4)
To Next Page
